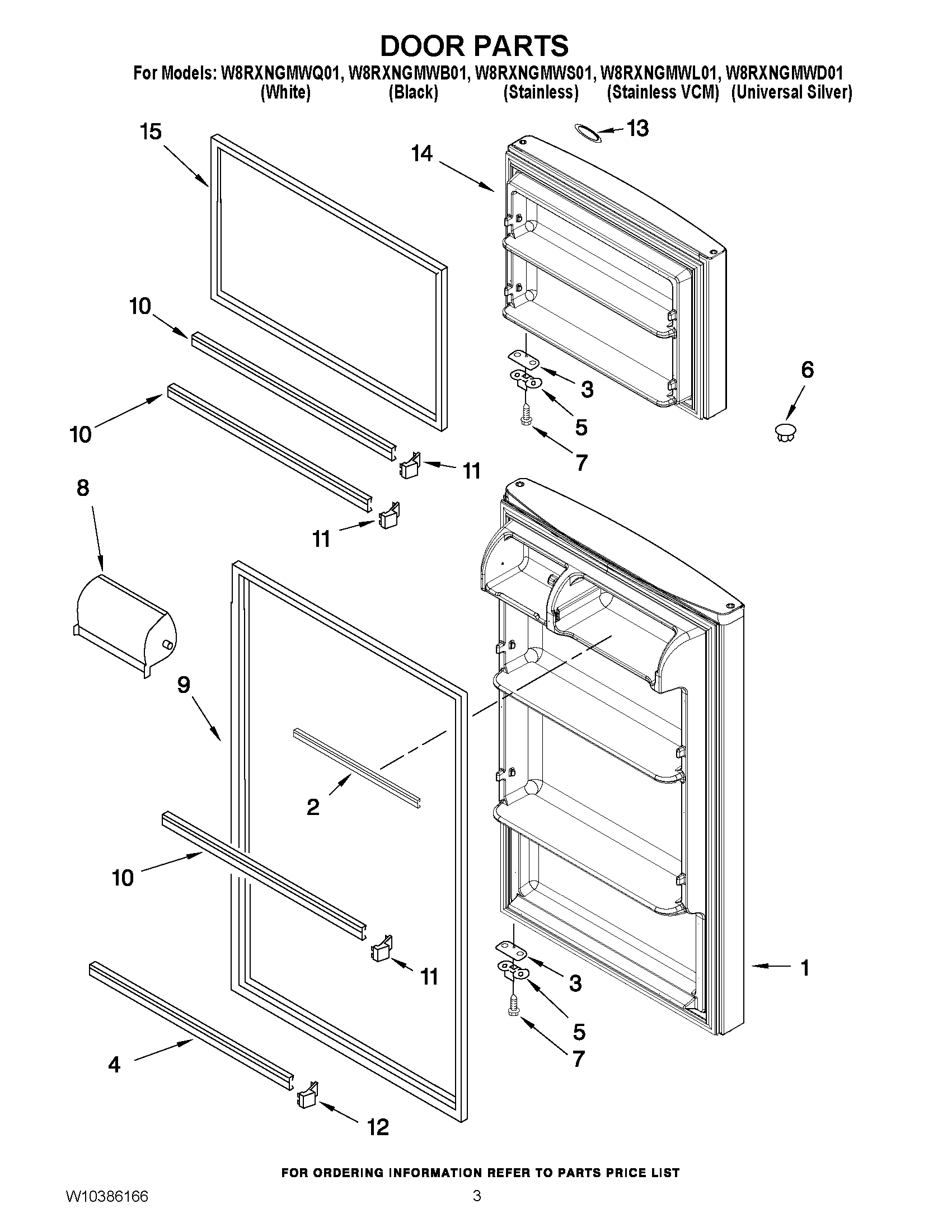

W8RXNGMWD01 02 – DOOR PARTS

W8RXNGMWD01 02 – DOOR PARTS

Written by

in

W8RXNGMWD01 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (WHITE)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (BLACK)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (SATINA)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (STAINLESS)
1REFRIGERATOR DOOR (INCLUDES ITEM 9) (UNIVERSAL SILVER)
2W11129820 Whirlpool Refrigerator Door Trim
32258681B Whirlpool Refrigerator Shim
3WP2258681W Whirlpool Refrigerator Shim
4WP2266738 Whirlpool Refrigerator Door Trim
5W11745278 Whirlpool Bracket
6WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6WP2212651 Whirlpool Refrigerator Button Plug
7SCREW
8DOOR-COMP
9WP2319264T Whirlpool Door Gasket
9WP2319264B Whirlpool Door Gasket
10WP2266727 Whirlpool Refrigerator Door Trim
11WP2156003 Whirlpool Refrigerator Door Shelf End Cap
12ENDCAP
13WP2213265 Whirlpool Refrigerator Nameplate
14FREEZER DOOR (INCLUDES ILLUS. 16) (SATINA)
14FREEZER DOOR (INCLUDES ITEM 14 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
14FREEZER DOOR (INCLUDES ITEM 14 & MOLDED DOOR HANDLE) (BLACK)
14FREEZER DOOR (INCLUDES ITEM 14 & MOLDED DOOR HANDLE) (WHITE)
14FREEZER DOOR (INCLUDES ITEM 16) (UNIVERSAL SILVER)
15WP2319263B Whirlpool Refrigerator Black Door Gasket
15WP2319263T Whirlpool Refrigerator FIP Gasket
