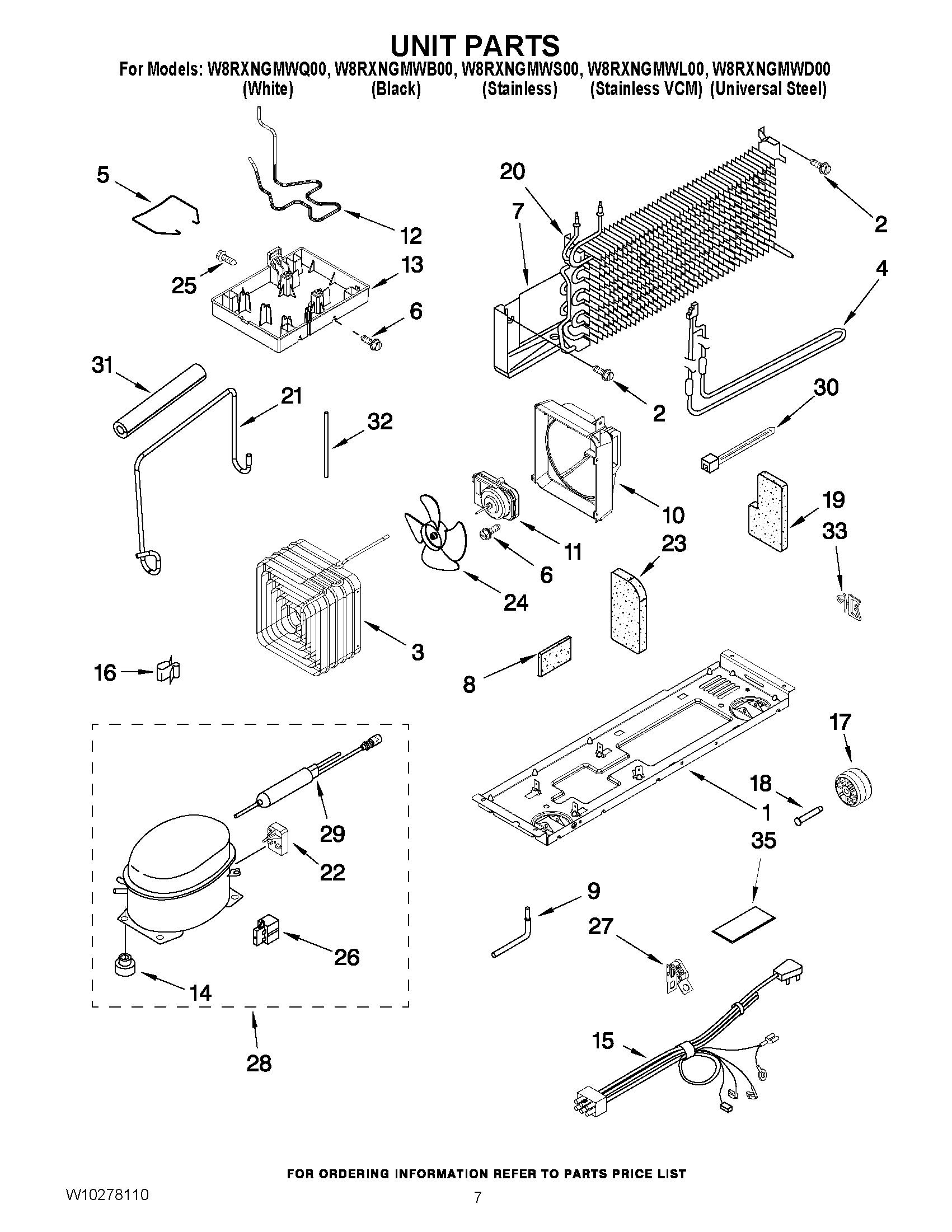

W8RXNGMWQ00 04 – UNIT PARTS

W8RXNGMWQ00 04 – UNIT PARTS

Written by

in

W8RXNGMWQ00 04 – UNIT PARTS

Products

PositionProduct
NI978026 Whirlpool Refrigerator Primary Valve
NICABINET (NOT A SERVICEABLE PART)
NIVALVE, ACCESS (1/2“)
NIWP978025 Whirlpool Refrigerator Valve
NI978030 Whirlpool Refrigerator Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI876764 Whirlpool Refrigerator Primary Valve
NIVALVE, ACCESS (5/8“)
1WPW10222450 Whirlpool Refrigerator Support
2WP489442 Whirlpool Refrigerator Screw
3WP2264004 Whirlpool Refrigerator Condenser
4WP2263749 Whirlpool Defrost Heater Assembly
52264835 Whirlpool Clip
6WPW10171469 Whirlpool Refrigerator Screw
7Heat Shield
8W11553819 Whirlpool Refrigerator Insulation
9W11676464 Whirlpool Tube
10W10358308 Whirlpool Refrigerator Air Baffle
11W11578915 Whirlpool Condenser Motor
122316181 Whirlpool Tube
13WP2263928 Whirlpool Refrigerator Evaporator Tray
14WPW10169124 Whirlpool Refrigerator Grommet
15WPW10151677 Whirlpool Refrigerator Wire Harness
16W10812038 Whirlpool Refrigerator Clip
17WPW10475495 Whirlpool Roller Assembly
18WP2264756 Whirlpool Refrigerator Rivet
198201619 Whirlpool Refrigerator Support Assembly
20WP2263920 Whirlpool Refrigerator Evaporator
212264131 Whirlpool Refrigerator Tube Extension
22WP2225929 Whirlpool Refrigerator Start Device
22W10805623 Whirlpool Refrigerator Start Device
242264129 Whirlpool Refrigerator Fan Blade
25WP489489 Whirlpool Screw
26WPW10662129 Whirlpool Refrigerator Run Capacitor
27549193 Whirlpool Refrigerator Power Clamp
28Compressor (Includes Items 12,13,14,22,29, 32 & 34) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29WPW10143759 Whirlpool Dryer Filter
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
312264838 Whirlpool Refrigerator Sleeve
322264278 Whirlpool Refrigerator Extension
33CLIP, HARNESS
352266360 Whirlpool Shield Assembly
