W8RXNGMWQ03 02 – DOOR PARTS

W8RXNGMWQ03 02 – DOOR PARTS

Written by

in

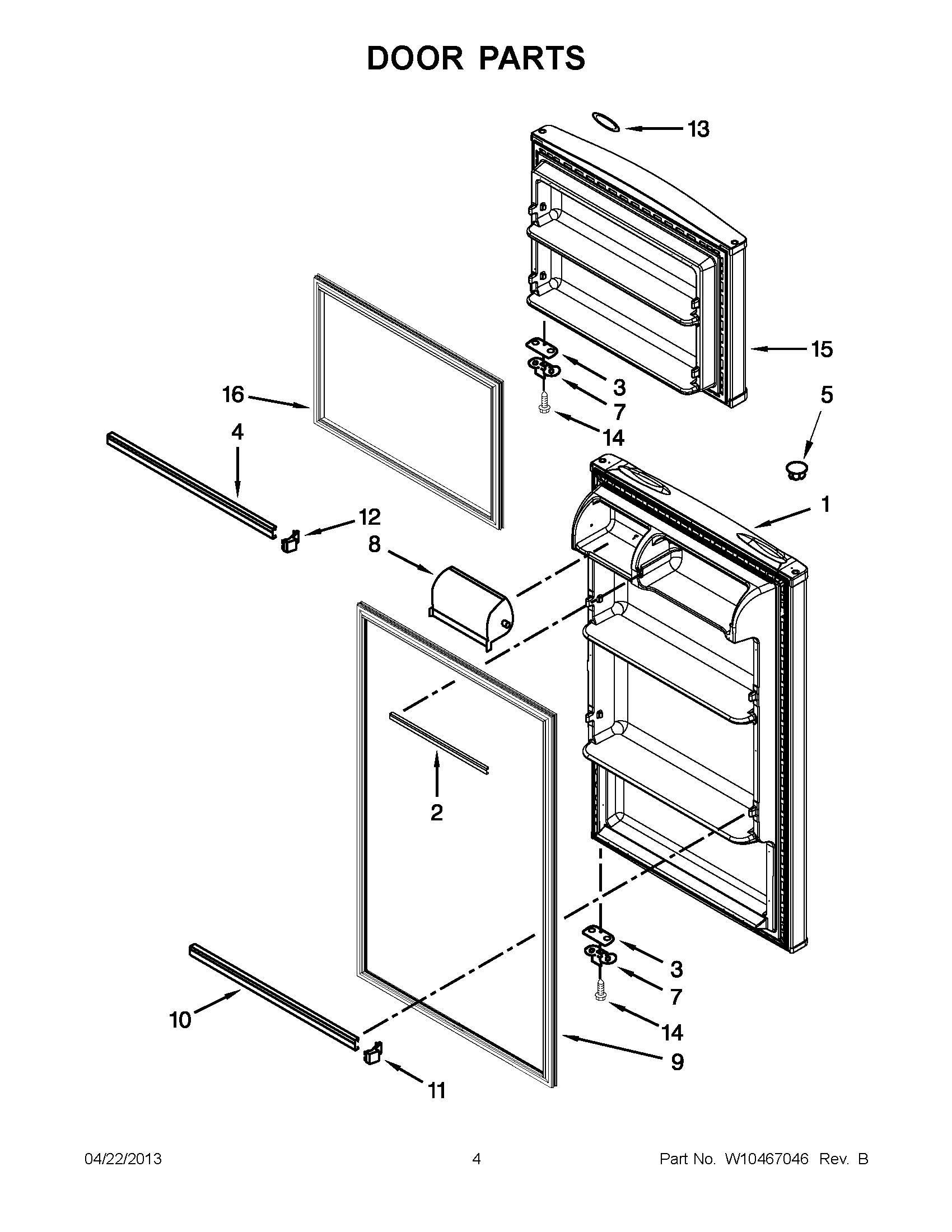

W8RXNGMWQ03 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (WHITE)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (BLACK)
1REFRIGERATOR DOOR (INCLUDES ITEM 9) (UNIVERSAL SILVER)
2W11129820 Whirlpool Refrigerator Door Trim
32258681B Whirlpool Refrigerator Shim
3WP2258681W Whirlpool Refrigerator Shim
4WP2266727 Whirlpool Refrigerator Door Trim
5WP2212651 Whirlpool Refrigerator Button Plug
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7W11745278 Whirlpool Bracket
8DOOR-COMP
9WP2319264B Whirlpool Door Gasket
9WP2319264T Whirlpool Door Gasket
10WP2266738 Whirlpool Refrigerator Door Trim
11ENDCAP
12WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13WP2213265 Whirlpool Refrigerator Nameplate
13W11178521 Whirlpool Dishwasher Nameplate
14SCREW
15FREEZER DOOR (INCLUDES ITEM 14 & MOLDED DOOR HANDLE) (WHITE)
15FREEZER DOOR (INCLUDES ITEM 14 & MOLDED DOOR HANDLE) (BLACK)
15FREEZER DOOR (INCLUDES ITEM 16) (UNIVERSAL SILVER)
16WP2319263T Whirlpool Refrigerator FIP Gasket
16WP2319263B Whirlpool Refrigerator Black Door Gasket
