W8TXEGFYB03 02 – CABINET PARTS

W8TXEGFYB03 02 – CABINET PARTS

Written by

in

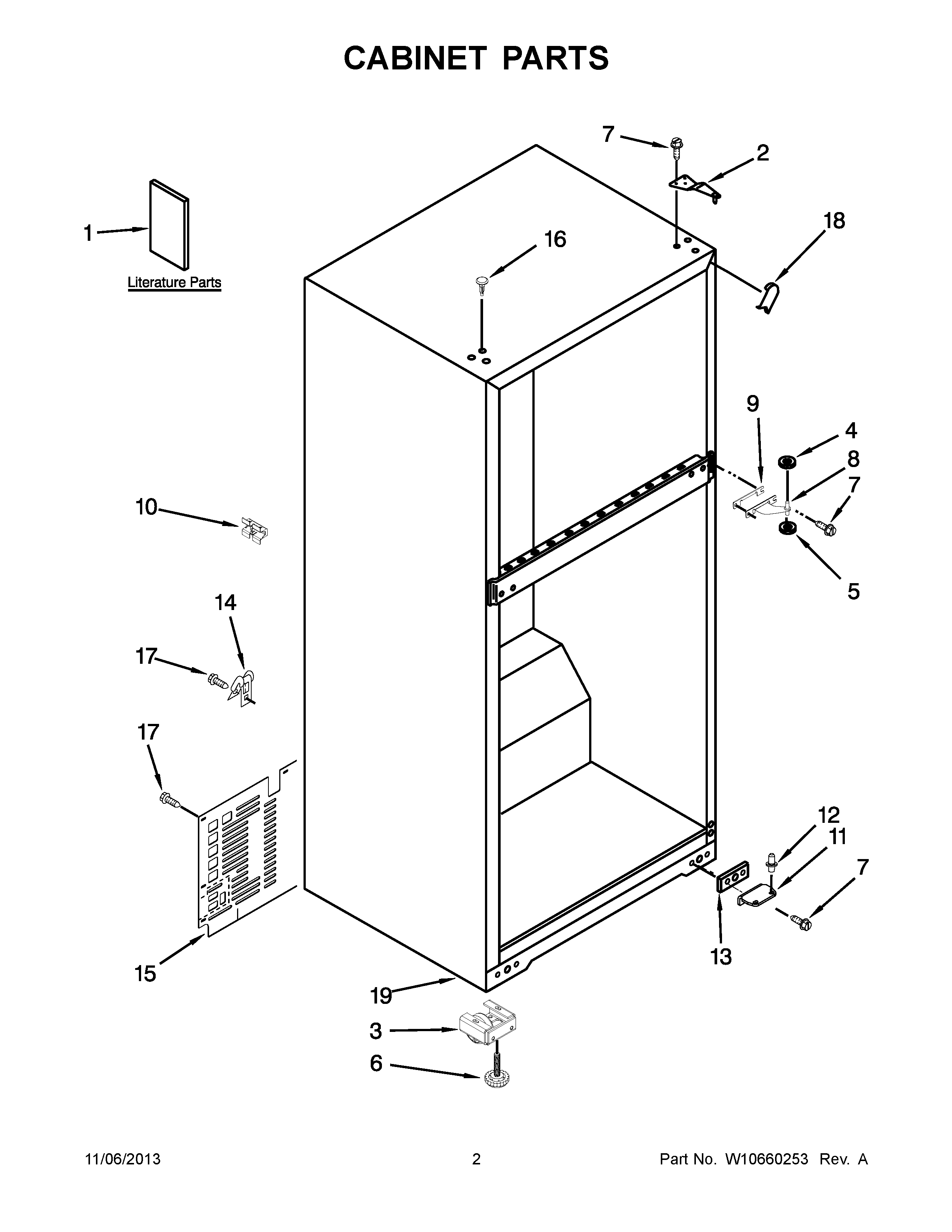

W8TXEGFYB03 02 – CABINET PARTS

Products

PositionProduct
1SERVICE & WIRING SHEET
1ENERGY LABEL
1Use & Care Guide
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4WP489467 Whirlpool Hinge Shim
5WP487576 Whirlpool Washer
6WPW10133299 Whirlpool Refrigerator Screw
7WP489497 Whirlpool Screw
8WP2166037 Whirlpool Refrigerator Door Hinge
92166043 Whirlpool Refrigerator Shim
102266506 Whirlpool Refrigerator Spacer
11WP2325482 Whirlpool Bottom Hinge
12WP2325483 Whirlpool Hinge Pin
13WP2201567 Whirlpool Hinge Shim
14549193 Whirlpool Refrigerator Power Clamp
15WP2264132 Whirlpool Refrigerator Unit Cover
16WPW10520305 Whirlpool Refrigerator Button Plug
16WPW10520304 Whirlpool Refrigerator Button Plug
17WP489442 Whirlpool Refrigerator Screw
18W11500943 Whirlpool Refrigerator Filler
18W10859322 Whirlpool Refrigerator Filler
19CABINET (NOT A SERVICEABLE PART)
