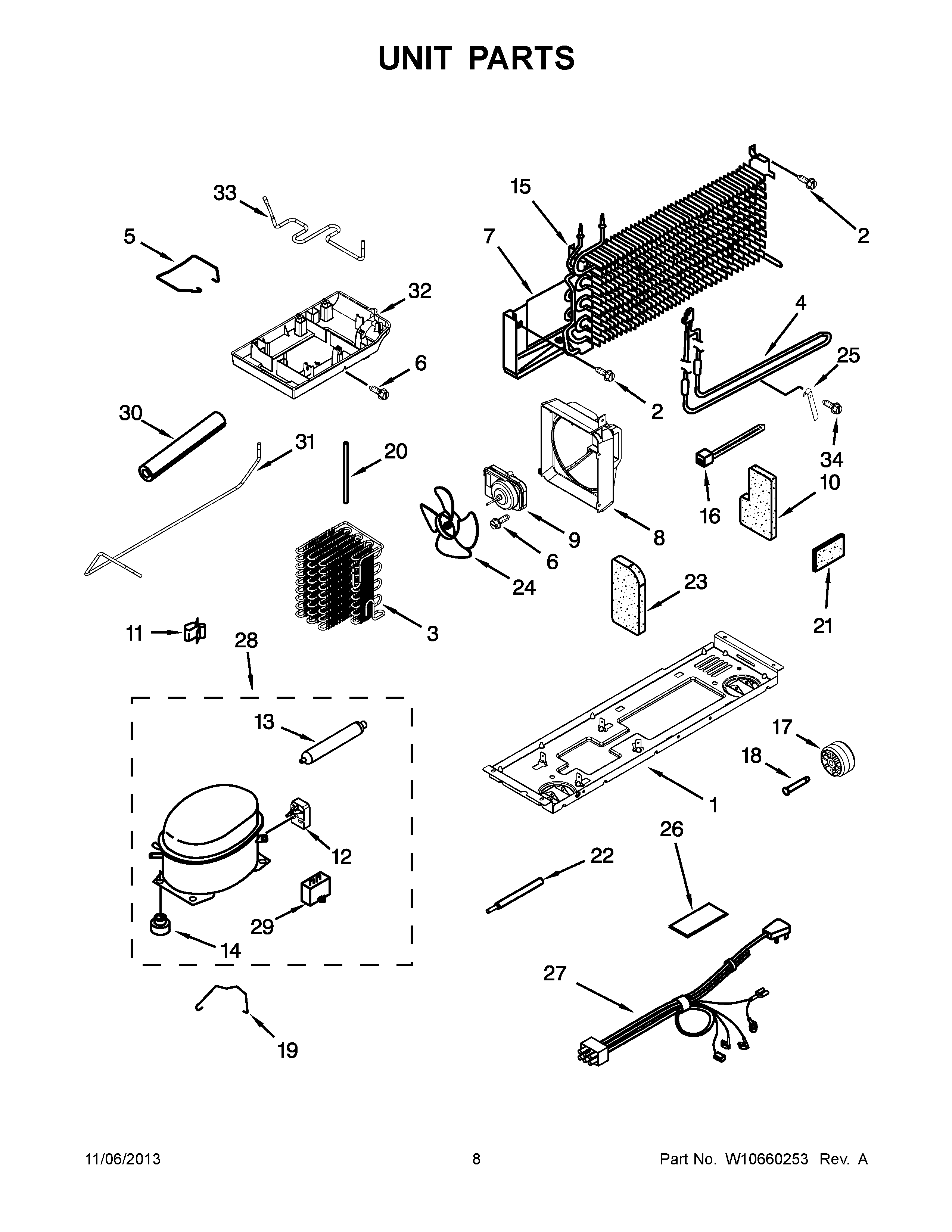

W8TXEGFYB03 05 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W10573847 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	CONDENSER
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	WPW10570380 Whirlpool Refrigerator Air Baffle
9	WP2188874 Whirlpool Refrigerator Condenser Motor
10	8201619 Whirlpool Refrigerator Support Assembly
11	W10812038 Whirlpool Refrigerator Clip
12	WPW10197428 Whirlpool Start Device
13	W10843121 Whirlpool Refrigerator Tube
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WP2263920 Whirlpool Refrigerator Evaporator
16	WPW10339879 Whirlpool Wire Tie
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	Retainer
20	W10582029 Whirlpool Refrigerator Extension
21	W11553819 Whirlpool Refrigerator Insulation
22	W11661102 Whirlpool Tube
24	2264129 Whirlpool Refrigerator Fan Blade
25	W10856574 Whirlpool Refrigerator Heat Probe
26	2266360 Whirlpool Shield Assembly
27	W10839396 Whirlpool Refrigerator Wire Harness
28	WPW10463858 Whirlpool Refrigerator Compressor
29	WPW10662129 Whirlpool Refrigerator Run Capacitor
30	2264838 Whirlpool Refrigerator Sleeve
31	W10667538 Whirlpool Tube
32	W10565417 Whirlpool Refrigerator Evaporator Tray
33	W10585740 Whirlpool Refrigerator Tube
34	WP489478 Whirlpool Refrigerator Screw
