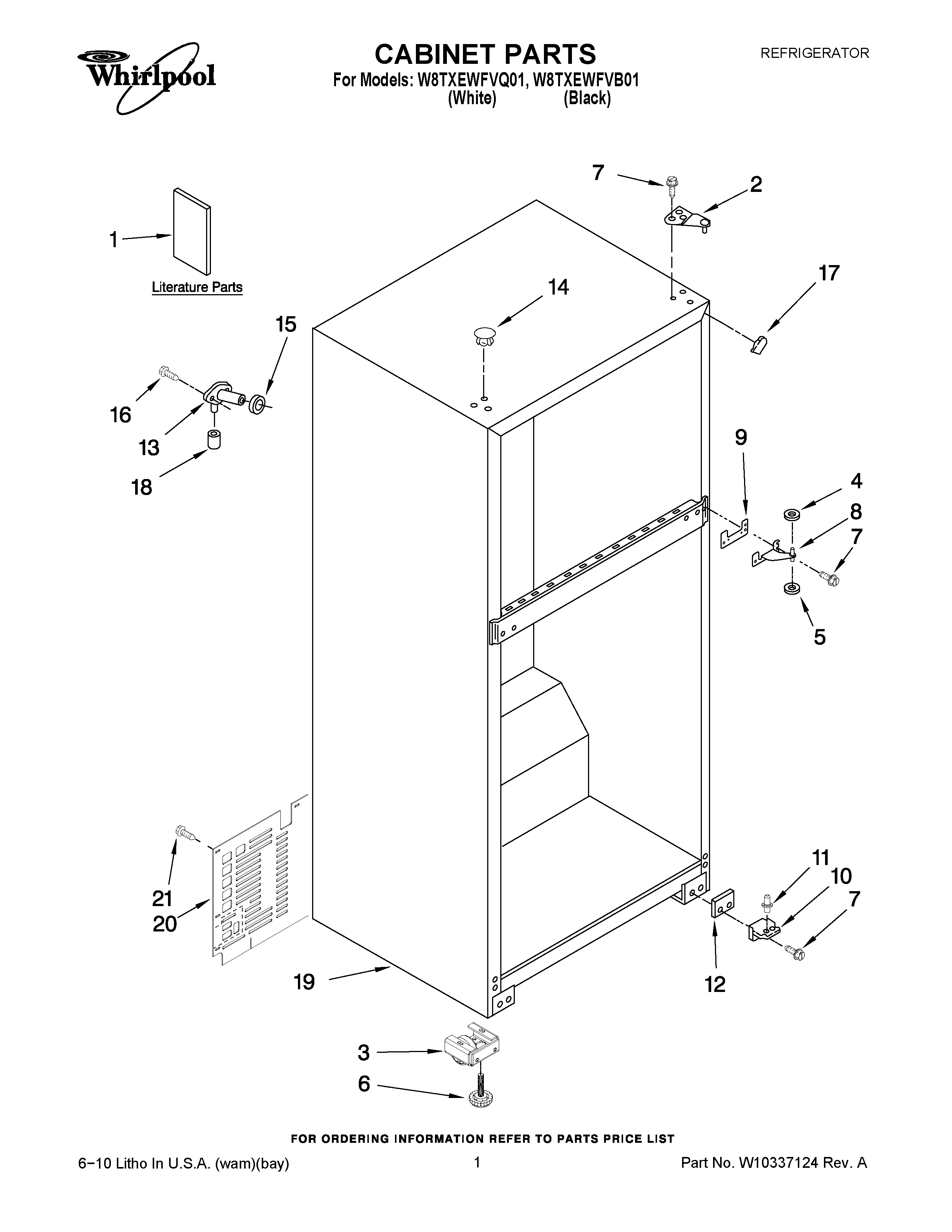

W8TXEWFVB01 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Energy Label
1	Use & Care Guide
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
4	WP487802 Whirlpool Refrigerator Washer
5	WP487576 Whirlpool Washer
6	WPW10133299 Whirlpool Refrigerator Screw
7	WP489497 Whirlpool Screw
8	WP2166037 Whirlpool Refrigerator Door Hinge
9	2166043 Whirlpool Refrigerator Shim
10	WP2325482 Whirlpool Bottom Hinge
11	WP2325483 Whirlpool Hinge Pin
12	WP2201567 Whirlpool Hinge Shim
13	WP2196157 Whirlpool Fill Tube
14	WP2183998 Whirlpool Refrigerator Button Plug
14	WP2151652 Whirlpool Refrigerator Button Plug
15	WP1106508 Whirlpool Refrigerator Gasket
16	WP488729 Whirlpool Refrigerator Door Screw
17	W10859322 Whirlpool Refrigerator Filler
17	W11500943 Whirlpool Refrigerator Filler
18	WP487996 Whirlpool Refrigerator Cap Tube
19	CABINET (NOT A SERVICEABLE PART)
20	2213762 Whirlpool Refrigerator Unit Cover
21	WP489442 Whirlpool Refrigerator Screw
