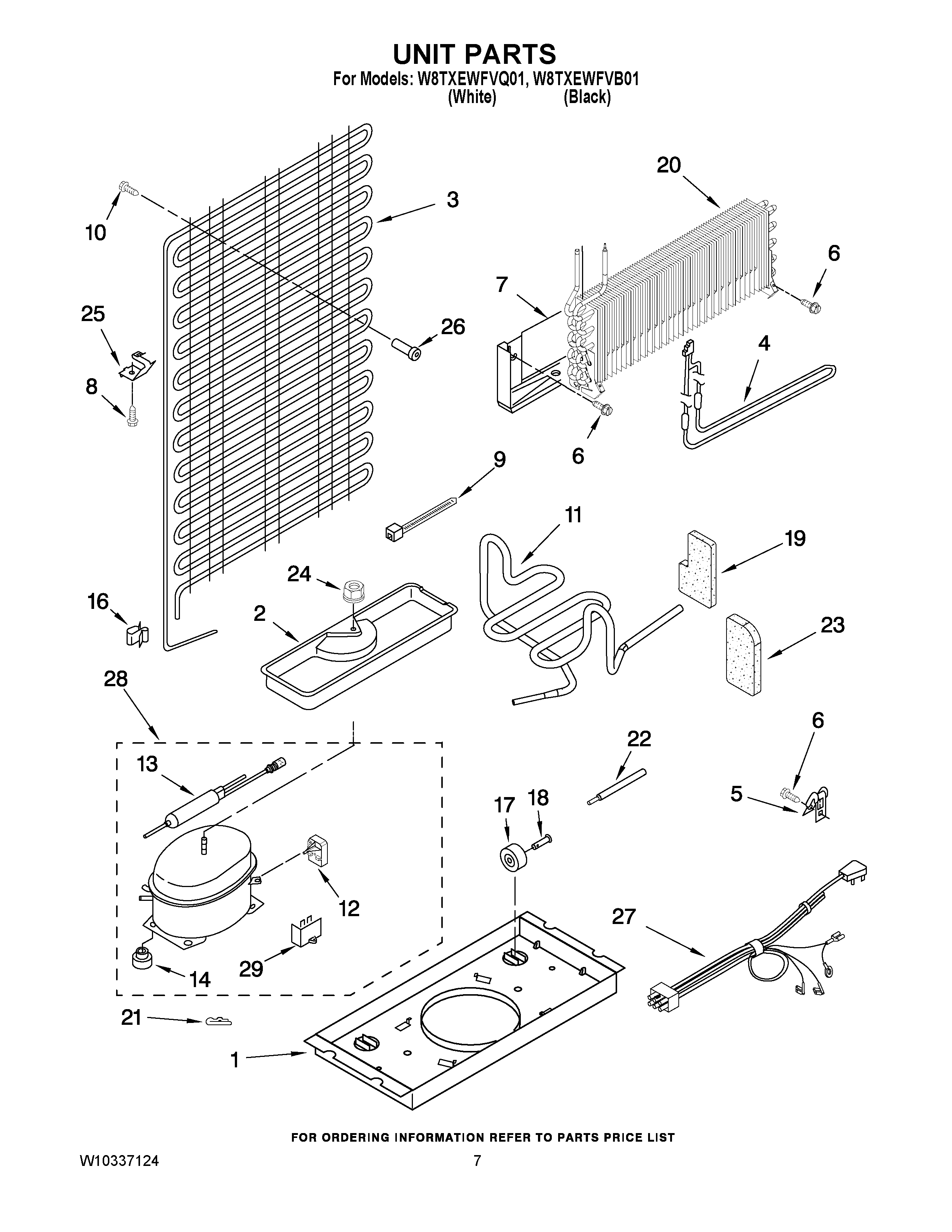

W8TXEWFVB01 04 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10222451 Whirlpool Refrigerator Support
2	Tray, Evaporator
3	WPW10219349 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	549193 Whirlpool Refrigerator Power Clamp
7	Heat Shield
8	WP489442 Whirlpool Refrigerator Screw
9	WPW10339879 Whirlpool Wire Tie
10	Screw
11	Tube, Discharge (Incl. Pre Cooler)
12	WPW10197428 Whirlpool Start Device
13	WPW10143759 Whirlpool Dryer Filter
13	W10843121 Whirlpool Refrigerator Tube
14	876811 Whirlpool Grommet
14	67003493 Whirlpool Refrigerator Compressor Grommet
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	Clip, Compressor
22	W11661102 Whirlpool Tube
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
27	W10151654 Whirlpool Refrigerator Wire Harness
28	W10160407 Whirlpool Refrigerator Compressor
29	WPW10662129 Whirlpool Refrigerator Run Capacitor
