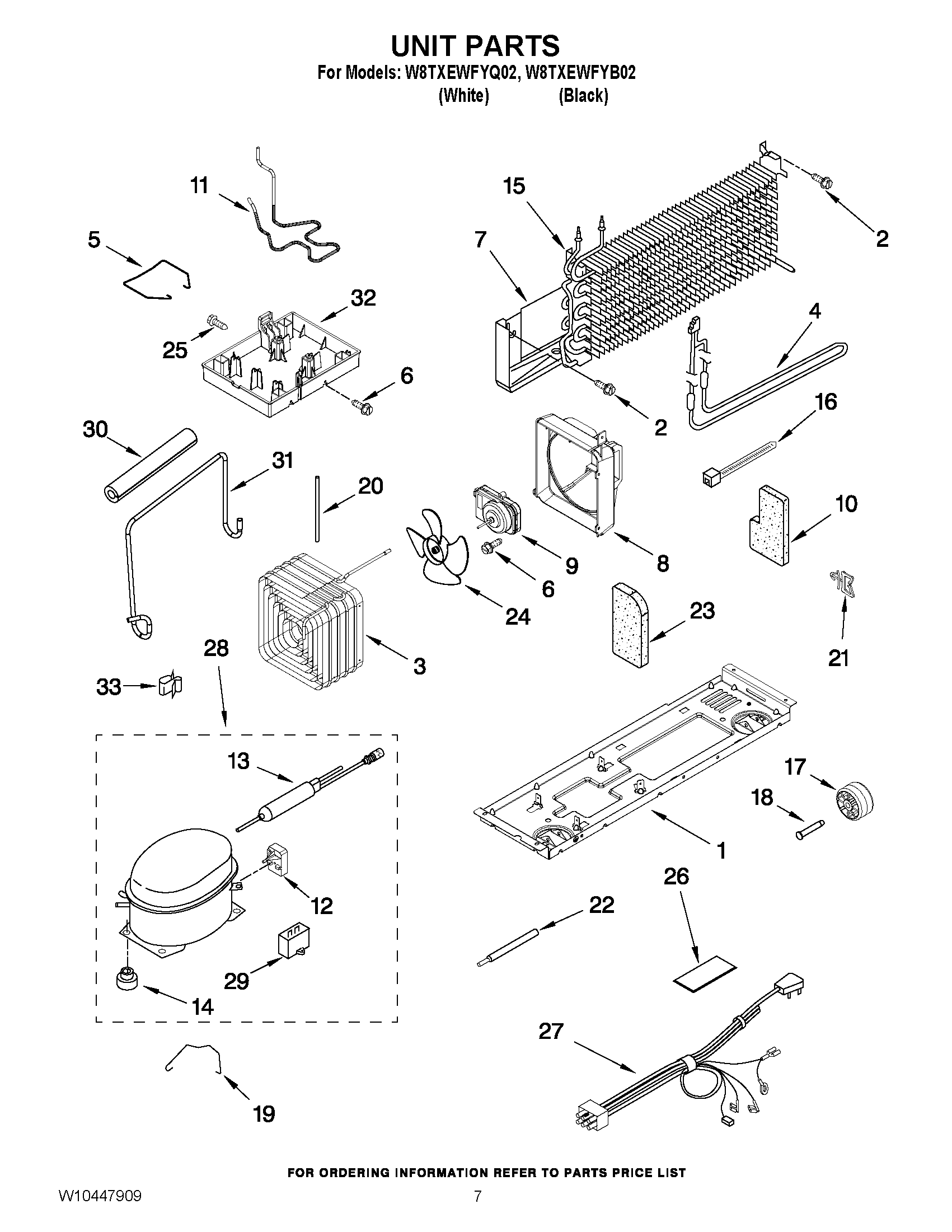

W8TXEWFYB02 04 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10222450 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	2264597 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	W10358308 Whirlpool Refrigerator Air Baffle
9	WP2188874 Whirlpool Refrigerator Condenser Motor
10	8201619 Whirlpool Refrigerator Support Assembly
11	W10336305 Whirlpool Tube
12	WPW10197428 Whirlpool Start Device
13	W10843121 Whirlpool Refrigerator Tube
13	WPW10143759 Whirlpool Dryer Filter
14	67003493 Whirlpool Refrigerator Compressor Grommet
14	WPW10169124 Whirlpool Refrigerator Grommet
15	WP2263920 Whirlpool Refrigerator Evaporator
16	WPW10339879 Whirlpool Wire Tie
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	Retainer
20	2264278 Whirlpool Refrigerator Extension
21	CLIP, HARNESS
22	W11661102 Whirlpool Tube
24	2264129 Whirlpool Refrigerator Fan Blade
25	WP489489 Whirlpool Screw
26	2266360 Whirlpool Shield Assembly
27	WPW10151677 Whirlpool Refrigerator Wire Harness
28	W10160407 Whirlpool Refrigerator Compressor
29	WPW10662129 Whirlpool Refrigerator Run Capacitor
30	2264838 Whirlpool Refrigerator Sleeve
31	W10209727 Whirlpool Refrigerator Extension Tube
32	WP2263928 Whirlpool Refrigerator Evaporator Tray
33	W10812038 Whirlpool Refrigerator Clip
