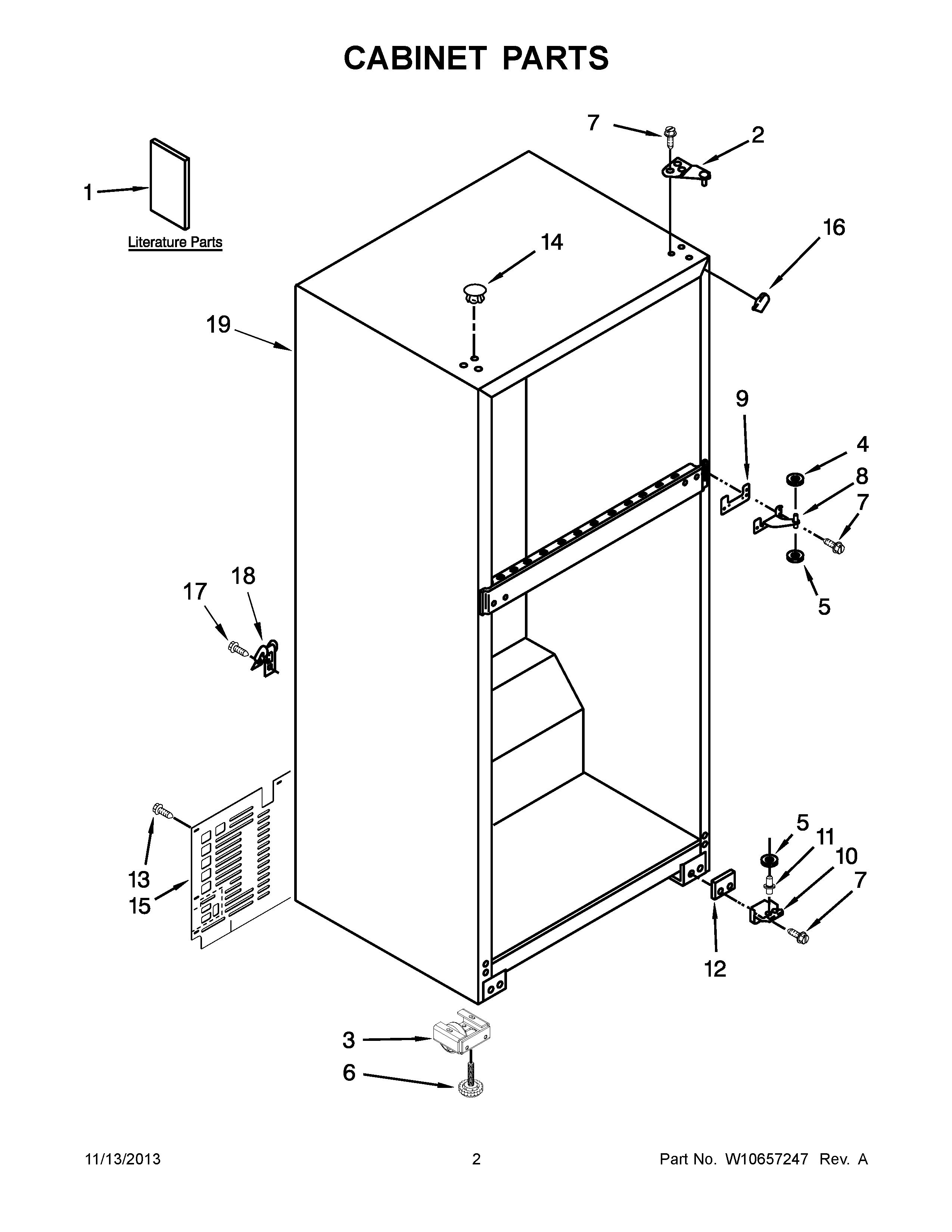

W8TXEWFYB03 02 – CABINET PARTS

Products

Position	Product
1	ENERGY LABEL
1	SERVICE & WIRING SHEET
1	Use & Care Guide
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
4	WP489467 Whirlpool Hinge Shim
5	WP487576 Whirlpool Washer
6	WPW10133299 Whirlpool Refrigerator Screw
7	WP489497 Whirlpool Screw
8	WP2166037 Whirlpool Refrigerator Door Hinge
9	2166043 Whirlpool Refrigerator Shim
10	WP2325482 Whirlpool Bottom Hinge
11	WP2325483 Whirlpool Hinge Pin
12	WP2201567 Whirlpool Hinge Shim
13	WP489442 Whirlpool Refrigerator Screw
14	WPW10520304 Whirlpool Refrigerator Button Plug
14	WPW10520305 Whirlpool Refrigerator Button Plug
15	WP2264132 Whirlpool Refrigerator Unit Cover
16	W11500943 Whirlpool Refrigerator Filler
16	W10859322 Whirlpool Refrigerator Filler
17	549193 Whirlpool Refrigerator Power Clamp
18	SCREW
19	CABINET (NOT A SERVICEABLE PART)
