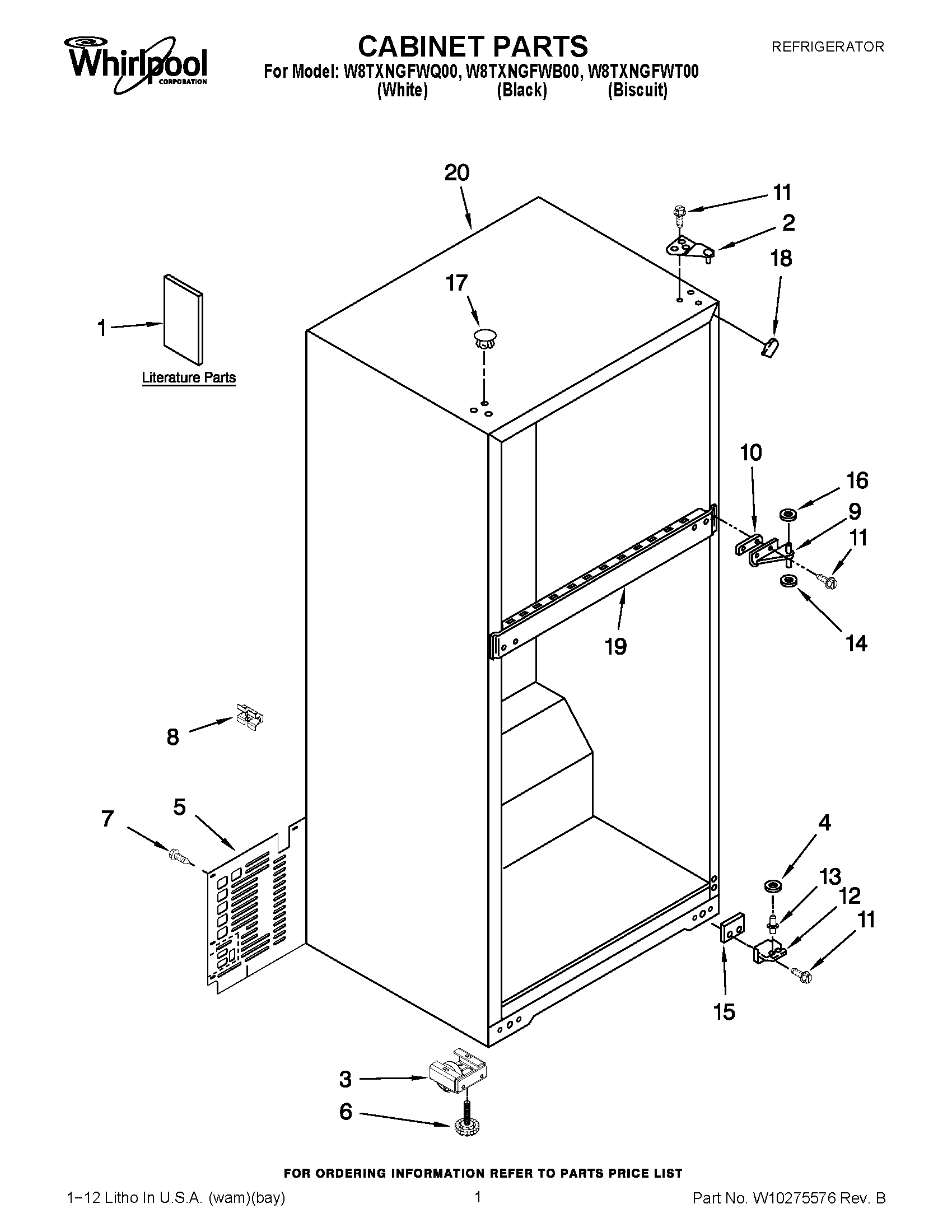

W8TXNGFWB00 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1Use & Care Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
5WP2264132 Whirlpool Refrigerator Unit Cover
6WPW10133299 Whirlpool Refrigerator Screw
7WP489442 Whirlpool Refrigerator Screw
82266506 Whirlpool Refrigerator Spacer
9WP2166037 Whirlpool Refrigerator Door Hinge
102166043 Whirlpool Refrigerator Shim
11WP489497 Whirlpool Screw
12WP2325482 Whirlpool Bottom Hinge
13WP2325483 Whirlpool Hinge Pin
14WP487576 Whirlpool Washer
15WP2201567 Whirlpool Hinge Shim
16WP489467 Whirlpool Hinge Shim
17WP2183998 Whirlpool Refrigerator Button Plug
17WP2151652 Whirlpool Refrigerator Button Plug
17Hole Plug (6) (Biscuit)
18W10859322 Whirlpool Refrigerator Filler
182202282 Whirlpool Refrigerator Filler
18W11500943 Whirlpool Refrigerator Filler
20CABINET (NOT A SERVICEABLE PART)
