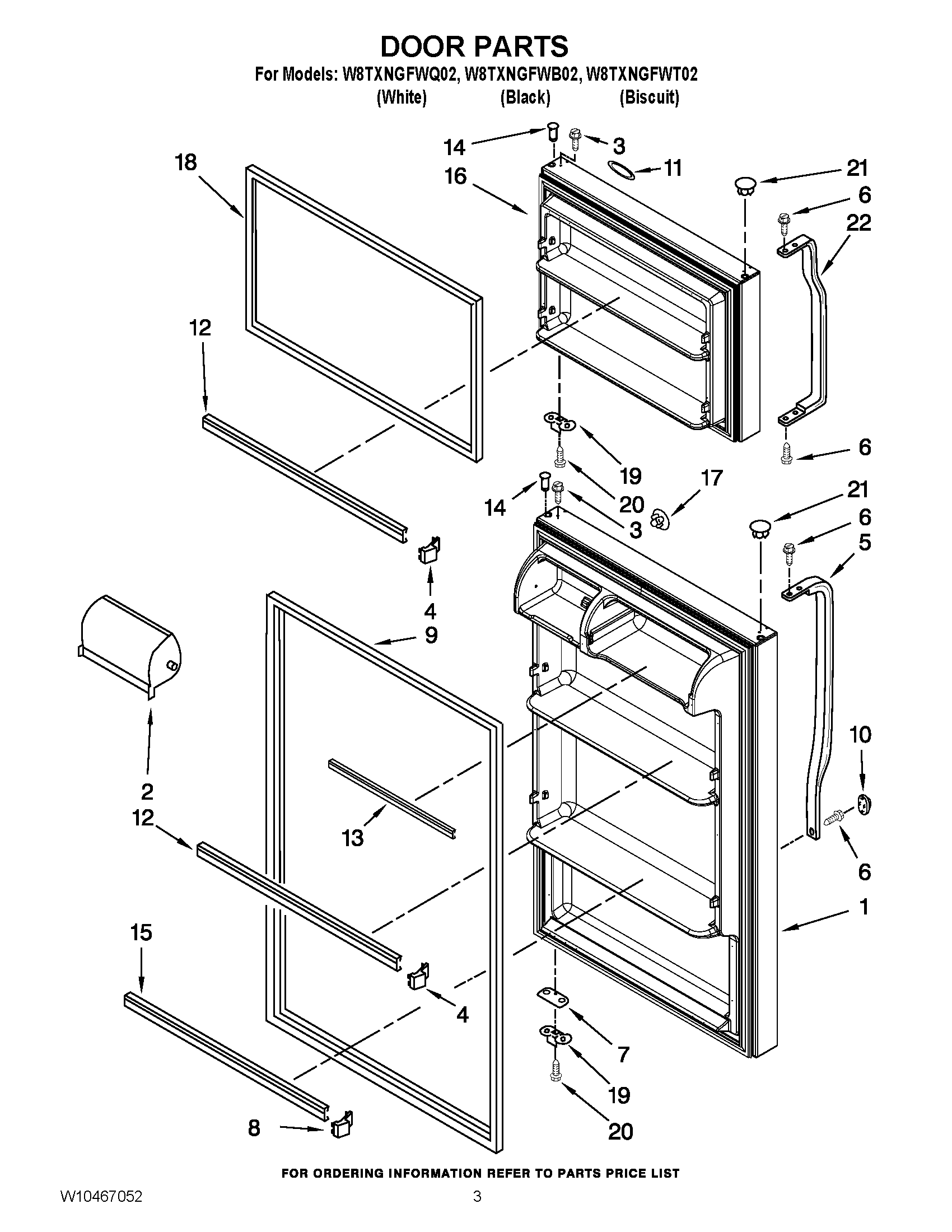

W8TXNGFWB02 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door Includes (7 & 10) (Black)
1Refrigerator Door (Includes Illus. 2,9, 11 & 13)
2DOOR-COMP
3WP8281206 Whirlpool Refrigerator Screw
4WP2156003 Whirlpool Refrigerator Door Shelf End Cap
5WP2326169B Whirlpool Refrigerator Handle
5HANDLE
5WP2221946T Whirlpool Refrigerator Handle
6WP489357 Whirlpool Recessed Screw
7WP2258681W Whirlpool Refrigerator Shim
72258681B Whirlpool Refrigerator Shim
8ENDCAP
9WP2319264T Whirlpool Door Gasket
9WP2319264B Whirlpool Door Gasket
10Cover, Screw (Biscuit)
10WP2202819W Whirlpool Refrigerator Cover
10WP2202819B Whirlpool Refrigerator Cover
11WP2213265 Whirlpool Refrigerator Nameplate
12WP2266727 Whirlpool Refrigerator Door Trim
13W11129820 Whirlpool Refrigerator Door Trim
14WP2183003 Whirlpool Thimble
15WP2266738 Whirlpool Refrigerator Door Trim
16Freezer Door (Includes Illus. 14,18 & 24)
16W11084609 Whirlpool Refrigerator Door Assembly
16Freezer Door Includes (10 & 14) (Black)
17WP2189000 Whirlpool Refrigerator Handle Plug
17WP2189009 Whirlpool Refrigerator Handle Plug
17WP2200936 Whirlpool Refrigerator Handle Plug
18WP2319263B Whirlpool Refrigerator Black Door Gasket
18WP2319263T Whirlpool Refrigerator FIP Gasket
19W11745278 Whirlpool Bracket
20WP488921 Whirlpool Refrigerator Screw
21WP2212651 Whirlpool Refrigerator Button Plug
21WP2212649 Whirlpool Refrigerator Button Plug
21WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
22HANDLE
22WP2215015 Whirlpool Refrigerator Handle
222202098B Whirlpool Refrigerator Handle
