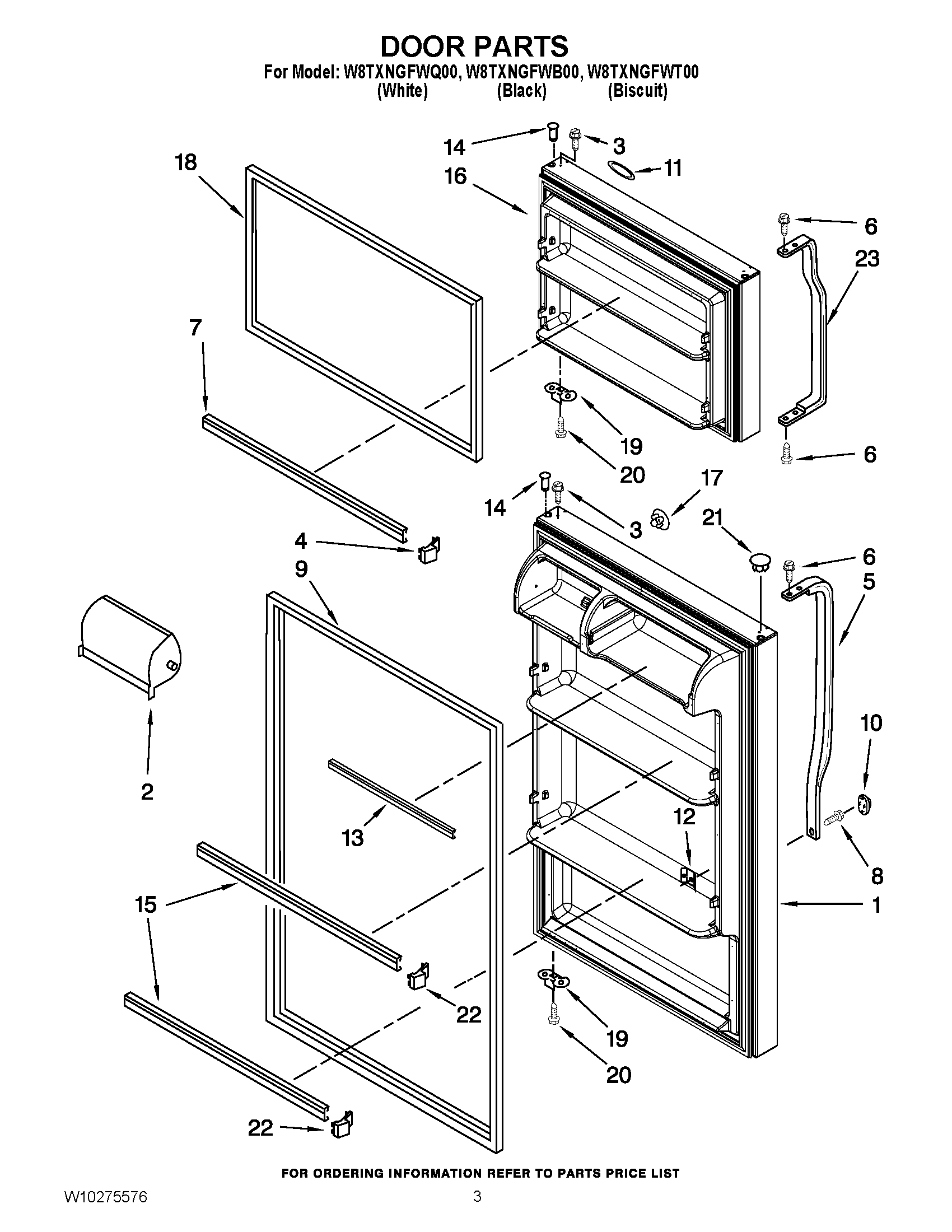

W8TXNGFWQ00 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door Includes (7 & 10) (Black)
1	Refrigerator Door (Includes Illus. 2,9, 11 & 13)
2	DOOR-COMP
4	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
5	HANDLE
5	WP2221946T Whirlpool Refrigerator Handle
5	WP2326169B Whirlpool Refrigerator Handle
6	WP489357 Whirlpool Recessed Screw
7	WP2266727 Whirlpool Refrigerator Door Trim
8	WP8281206 Whirlpool Refrigerator Screw
9	WP2319264B Whirlpool Door Gasket
9	WP2319264T Whirlpool Door Gasket
10	WP2202819B Whirlpool Refrigerator Cover
10	WP2202819W Whirlpool Refrigerator Cover
10	Cover, Screw (Biscuit)
11	WP2213265 Whirlpool Refrigerator Nameplate
12	WP939101 Whirlpool Refrigerator Plate
13	W11129820 Whirlpool Refrigerator Door Trim
14	WP2183003 Whirlpool Thimble
15	WP2266738 Whirlpool Refrigerator Door Trim
16	Freezer Door Includes (10 & 14) (Black)
16	W11084609 Whirlpool Refrigerator Door Assembly
16	Freezer Door (Includes Illus. 14,18 & 24)
17	WP2189000 Whirlpool Refrigerator Handle Plug
17	WP2189009 Whirlpool Refrigerator Handle Plug
17	WP2200936 Whirlpool Refrigerator Handle Plug
18	WP2319263B Whirlpool Refrigerator Black Door Gasket
18	WP2319263T Whirlpool Refrigerator FIP Gasket
19	W11745278 Whirlpool Bracket
20	WP488921 Whirlpool Refrigerator Screw
21	WP2212651 Whirlpool Refrigerator Button Plug
21	WP2212649 Whirlpool Refrigerator Button Plug
21	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
22	ENDCAP
23	HANDLE
23	2202098B Whirlpool Refrigerator Handle
23	WP2215015 Whirlpool Refrigerator Handle
