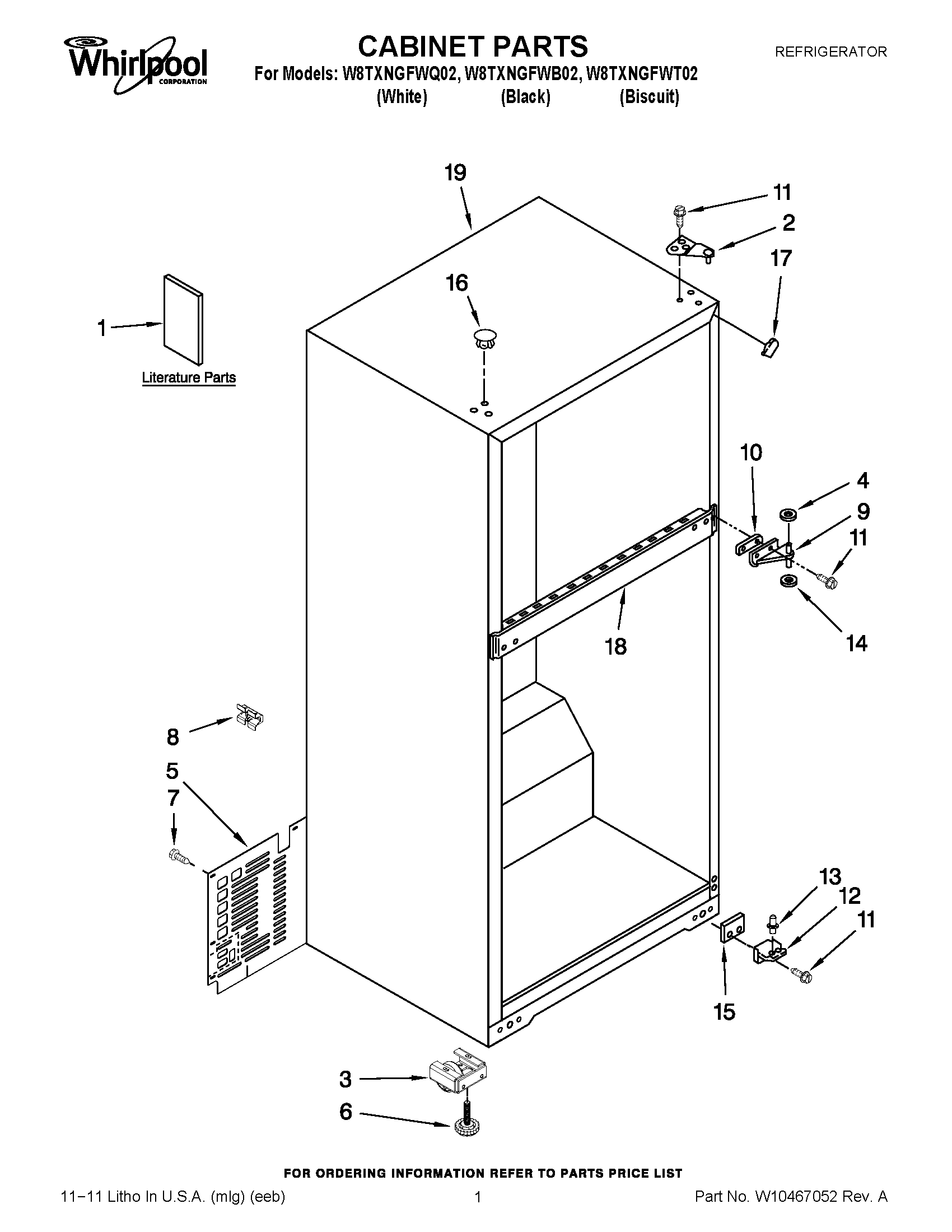

W8TXNGFWQ02 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1SERVICE & WIRING SHEET
1Use & Care Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4WP489467 Whirlpool Hinge Shim
5WP2264132 Whirlpool Refrigerator Unit Cover
6WPW10133299 Whirlpool Refrigerator Screw
7WP489442 Whirlpool Refrigerator Screw
82266506 Whirlpool Refrigerator Spacer
9WP2166037 Whirlpool Refrigerator Door Hinge
102166043 Whirlpool Refrigerator Shim
11WP489497 Whirlpool Screw
12WP2325482 Whirlpool Bottom Hinge
13WP2325483 Whirlpool Hinge Pin
14WP487576 Whirlpool Washer
15WP2201567 Whirlpool Hinge Shim
16WP2183998 Whirlpool Refrigerator Button Plug
16Hole Plug (6) (Biscuit)
16WP2151652 Whirlpool Refrigerator Button Plug
17W11500943 Whirlpool Refrigerator Filler
17W10859322 Whirlpool Refrigerator Filler
172202282 Whirlpool Refrigerator Filler
19CABINET (NOT A SERVICEABLE PART)
