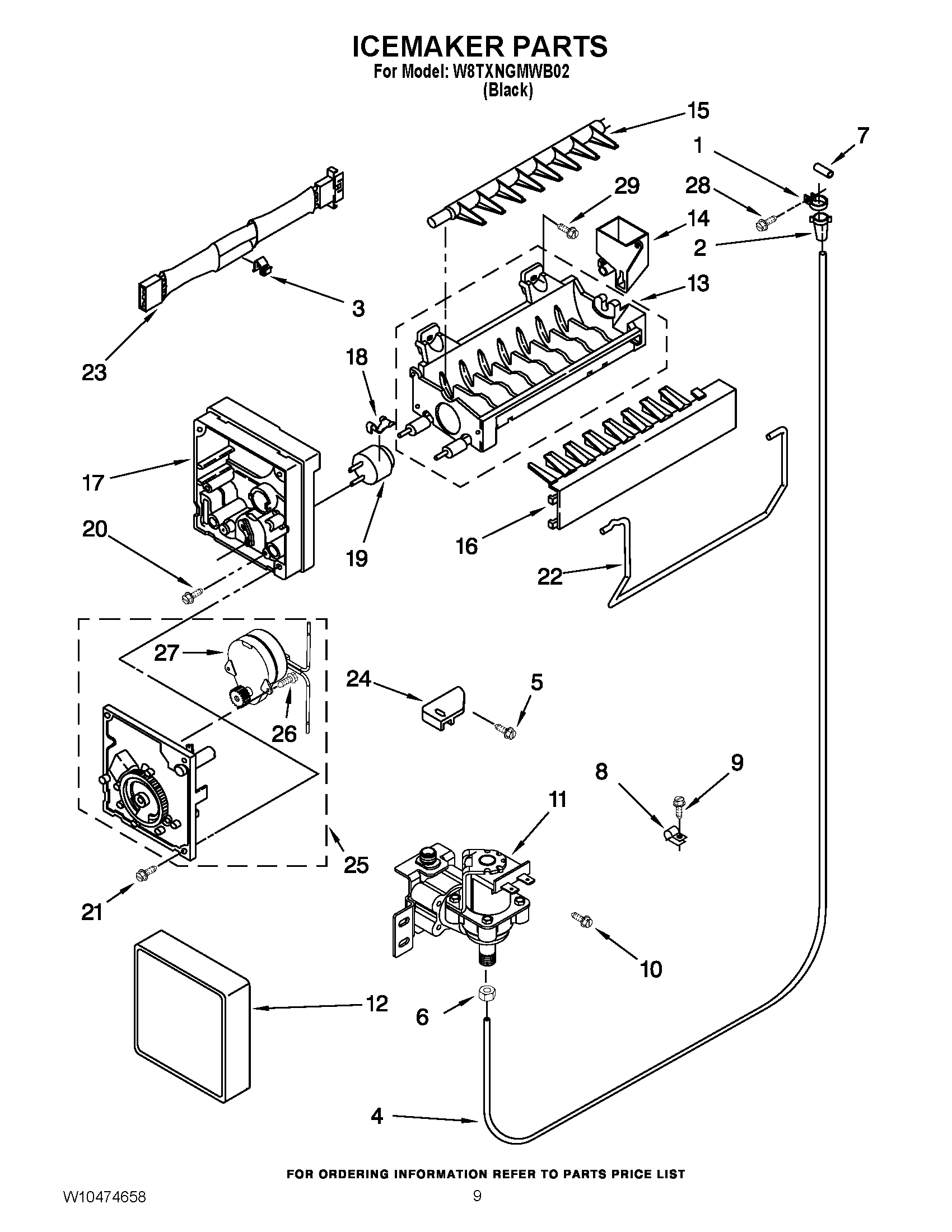

W8TXNGMWB02 05 – ICEMAKER PARTSadmin2025-04-26T11:08:19+00:00W8TXNGMWB02 05 – ICEMAKER PARTS ProductsPositionProduct1WP488878 Whirlpool Refrigerator Tube Clamp24387491 Whirlpool Refrigerator Insert3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5WP489478 Whirlpool Refrigerator Screw6WP627018 Whirlpool Refrigerator Nut7Tube, Water Inlet8WP488366 Whirlpool Refrigerator Clamp9WP488729 Whirlpool Refrigerator Door Screw10WP489442 Whirlpool Refrigerator Screw11VALVE-INLT12WPW10289690 Whirlpool Ice Maker Cover13WPW10190929 Whirlpool Refrigerator Ice Maker Mold14W10122561 Whirlpool Refrigerator Cup Fill15WP627843 Whirlpool Refrigerator Ejector Arm16WPW10122563 Whirlpool Refrigerator Stripper Arm17WP2195914 Whirlpool Refrigerator Ice Maker Housing18WP2315522 Whirlpool Refrigerator Clip19WP627985 Whirlpool Icemaker Cycling Thermostat208533917 Whirlpool Refrigerator Screw21WP681249 Whirlpool Screw Assembly22WP627792 Whirlpool Refrigerator Shut Off Arm23W10309399 Whirlpool Refrigerator Wire Harness24W11500948 Whirlpool Refrigerator Bracket258201515 Whirlpool Refrigerator Motor and Gear Module Kit26489136 Whirlpool Refrigerator Screw27W10122551 Whirlpool Refrigerator Motor Model28WP488787 Whirlpool Refrigerator Screw29WP488163 Whirlpool Refrigerator Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly
