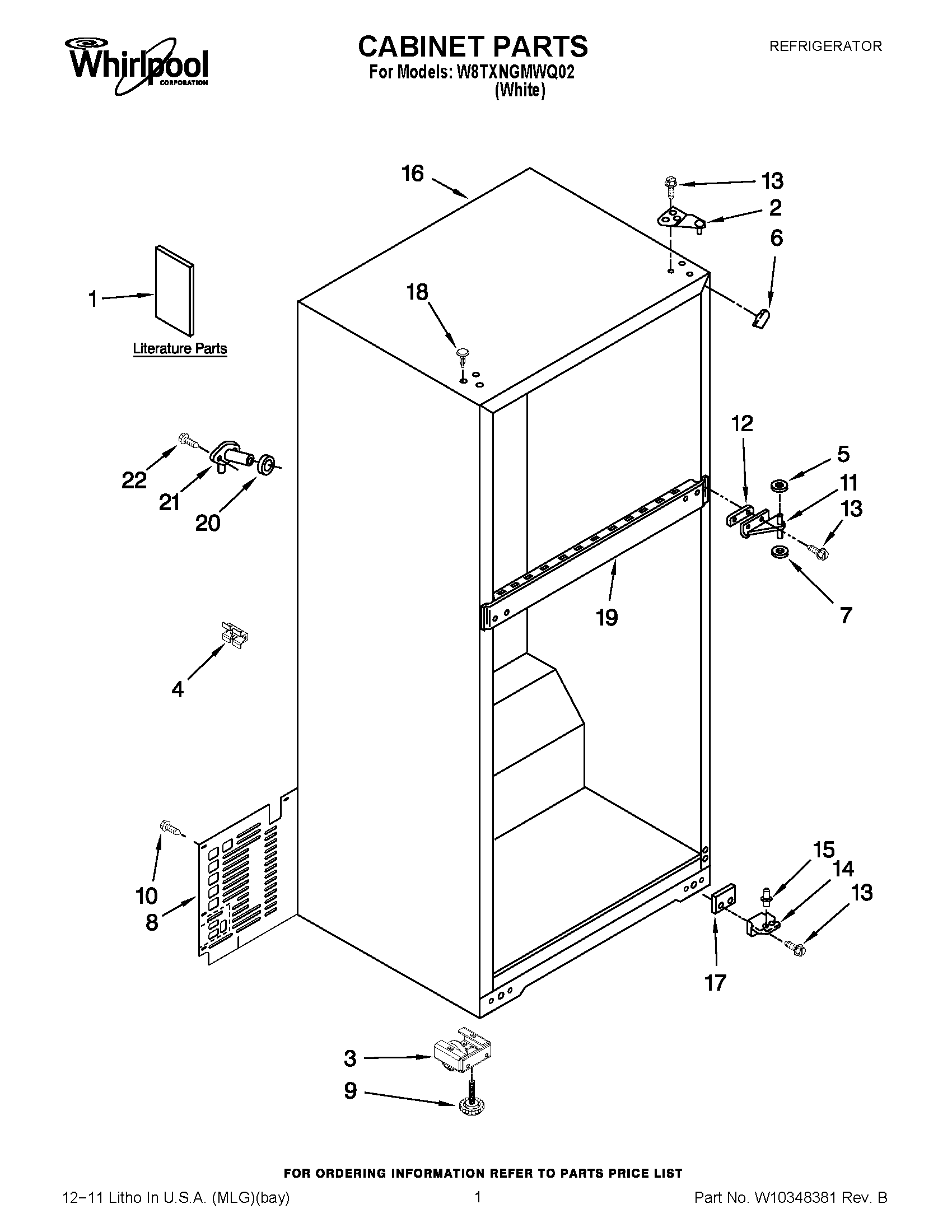

W8TXNGMWQ02 01 – CABINET PARTS

W8TXNGMWQ02 01 – CABINET PARTS

Written by

in

W8TXNGMWQ02 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1SERVICE & WIRING SHEET
1Use & Care Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
42266506 Whirlpool Refrigerator Spacer
5WP489467 Whirlpool Hinge Shim
6W10859322 Whirlpool Refrigerator Filler
7WP487576 Whirlpool Washer
8WP2264132 Whirlpool Refrigerator Unit Cover
9WPW10133299 Whirlpool Refrigerator Screw
10WP489442 Whirlpool Refrigerator Screw
11WP2166037 Whirlpool Refrigerator Door Hinge
122166043 Whirlpool Refrigerator Shim
13WP489497 Whirlpool Screw
14WP2325482 Whirlpool Bottom Hinge
15WP2325483 Whirlpool Hinge Pin
17WP2201567 Whirlpool Hinge Shim
18WP2151652 Whirlpool Refrigerator Button Plug
19CABINET (NOT A SERVICEABLE PART)
20WP1106508 Whirlpool Refrigerator Gasket
21WP2196157 Whirlpool Fill Tube
22WP488729 Whirlpool Refrigerator Door Screw
