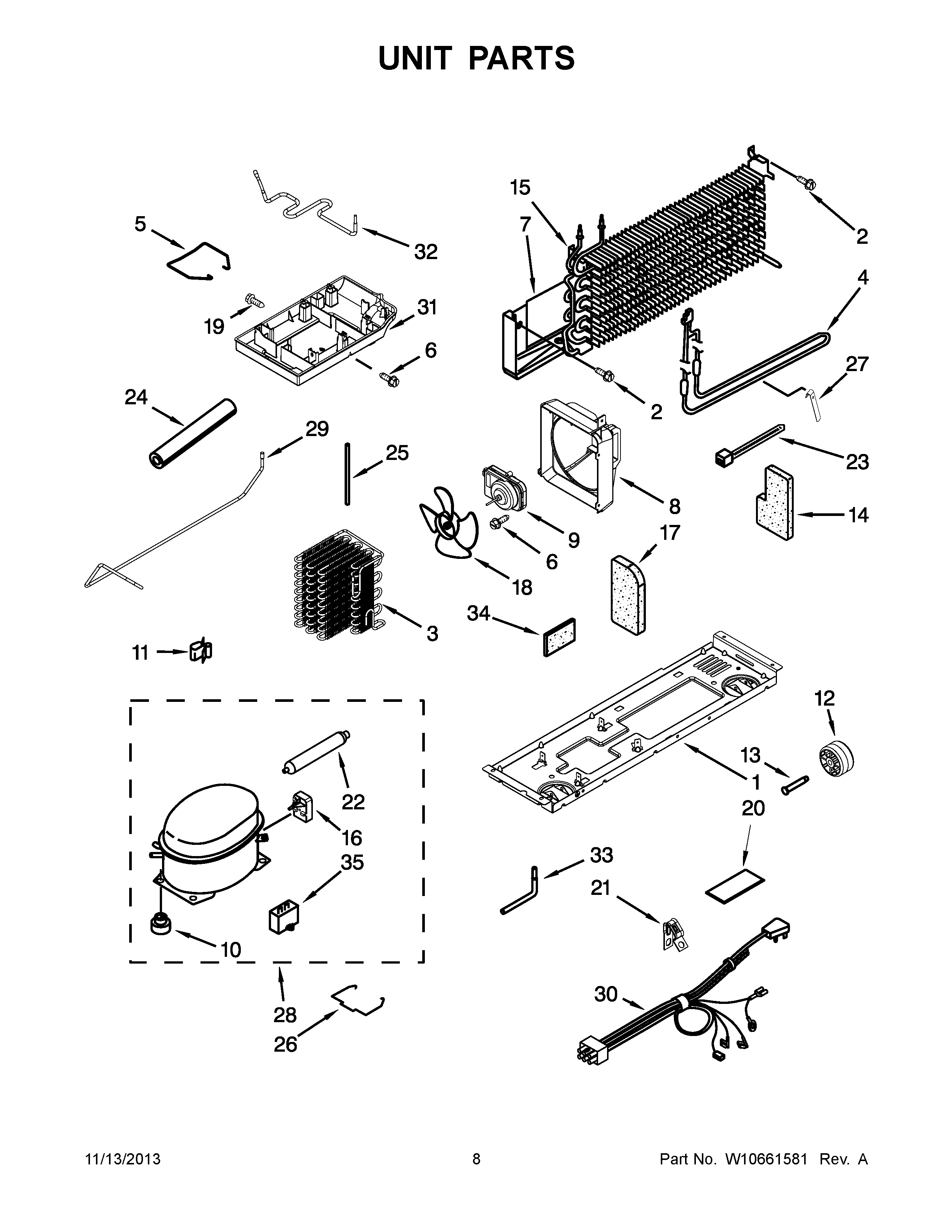

W8TXNGZBT01 05 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
1	W10573847 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	CONDENSER
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	WPW10570380 Whirlpool Refrigerator Air Baffle
9	W11578915 Whirlpool Condenser Motor
10	WPW10169124 Whirlpool Refrigerator Grommet
11	W10812038 Whirlpool Refrigerator Clip
12	WPW10475495 Whirlpool Roller Assembly
13	WP2264756 Whirlpool Refrigerator Rivet
14	8201619 Whirlpool Refrigerator Support Assembly
15	WP2263920 Whirlpool Refrigerator Evaporator
16	WPW10399283 Whirlpool Refrigerator Start Device
18	2264129 Whirlpool Refrigerator Fan Blade
19	WP489489 Whirlpool Screw
20	2266360 Whirlpool Shield Assembly
21	549193 Whirlpool Refrigerator Power Clamp
22	W10843121 Whirlpool Refrigerator Tube
23	WPW10339879 Whirlpool Wire Tie
24	2264838 Whirlpool Refrigerator Sleeve
25	W10582029 Whirlpool Refrigerator Extension
26	2212996 Whirlpool Refrigerator Retainer
27	W10856574 Whirlpool Refrigerator Heat Probe
28	W10822653 Whirlpool Refrigerator Compressor
29	W10585747 Whirlpool Tube
30	W10839396 Whirlpool Refrigerator Wire Harness
31	W10565417 Whirlpool Refrigerator Evaporator Tray
32	W10585741 Whirlpool Tube
33	W11676464 Whirlpool Tube
34	W11553819 Whirlpool Refrigerator Insulation
35	WP65889-4 Whirlpool Refrigerator Capacitor
