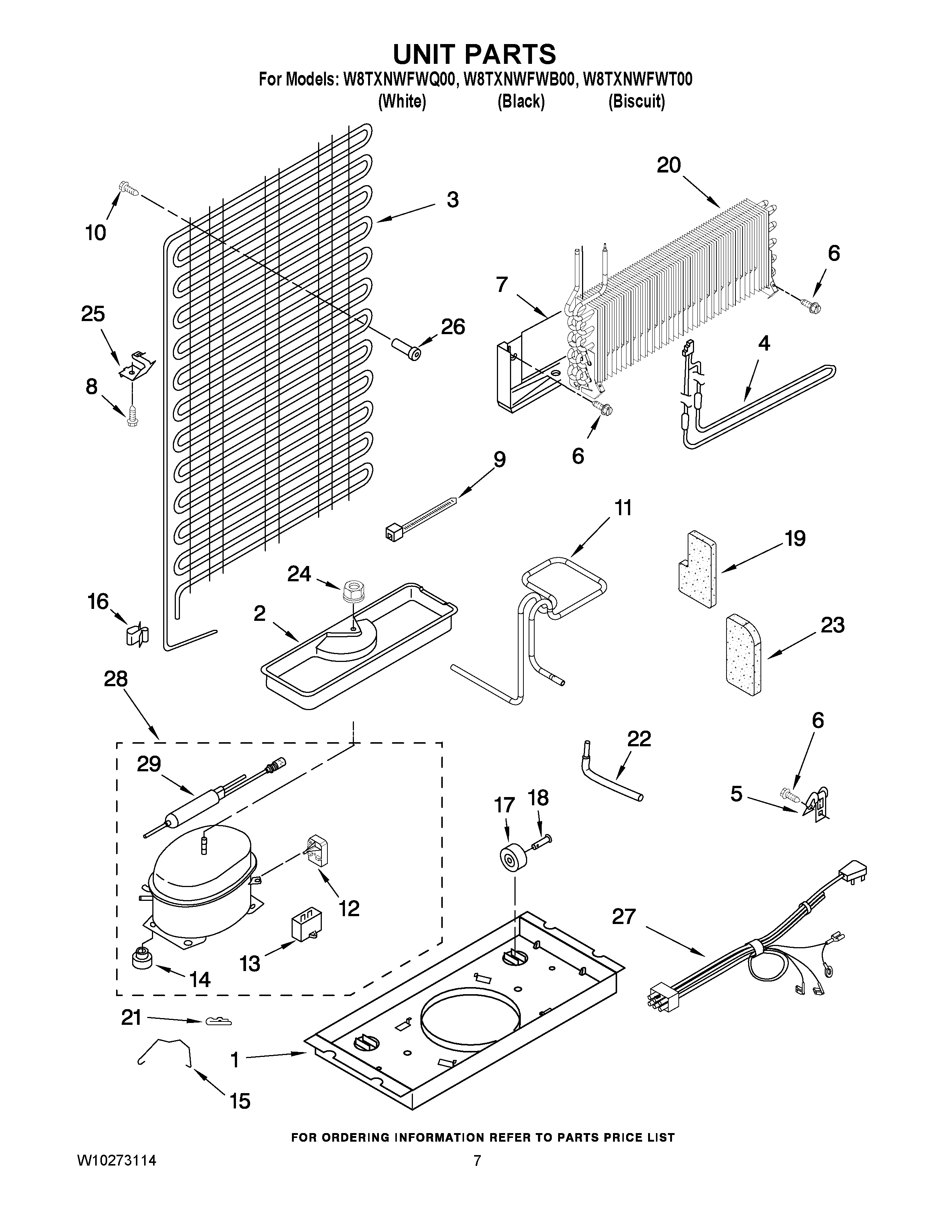

W8TXNWFWB00 04 – UNIT PARTSadmin2025-04-26T11:06:57+00:00W8TXNWFWB00 04 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | REFRIGERANT CHARGE 3.75 Ozs. (R134A) |
| NI | WP978025 Whirlpool Refrigerator Valve |
| NI | 978030 Whirlpool Refrigerator Valve |
| NI | 978027 Whirlpool Refrigerator Primary Valve |
| NI | 978026 Whirlpool Refrigerator Primary Valve |
| NI | 876764 Whirlpool Refrigerator Primary Valve |
| NI | VALVE, ACCESS (5/8``) |
| NI | VALVE, ACCESS (1/2``) |
| 1 | WPW10222451 Whirlpool Refrigerator Support |
| 2 | Tray, Evaporator |
| 3 | WPW10219349 Whirlpool Refrigerator Condenser |
| 4 | WP2263749 Whirlpool Defrost Heater Assembly |
| 5 | 549193 Whirlpool Refrigerator Power Clamp |
| 7 | Heat Shield |
| 8 | WP489442 Whirlpool Refrigerator Screw |
| 9 | WPW10339879 Whirlpool Wire Tie |
| 10 | Screw |
| 11 | Tube, Discharge |
| 12 | WP2225929 Whirlpool Refrigerator Start Device |
| 13 | WPW10662129 Whirlpool Refrigerator Run Capacitor |
| 14 | WPW10169124 Whirlpool Refrigerator Grommet |
| 15 | 2212996 Whirlpool Refrigerator Retainer |
| 16 | W10812038 Whirlpool Refrigerator Clip |
| 17 | WPW10475495 Whirlpool Roller Assembly |
| 18 | WP2264756 Whirlpool Refrigerator Rivet |
| 19 | 8201619 Whirlpool Refrigerator Support Assembly |
| 20 | WP2263920 Whirlpool Refrigerator Evaporator |
| 21 | Clip, Compressor |
| 22 | W11676464 Whirlpool Tube |
| 24 | 285002 Whirlpool Nut |
| 25 | 4386951 Whirlpool Refrigerator Clip |
| 26 | 2258452 Whirlpool Refrigerator Spacer |
| 27 | W10151654 Whirlpool Refrigerator Wire Harness |
| 28 | Compressor (Includes Items 12,13,14,22,29, 32 & 34) (Also Order 482801 Installation Kit & 876765 Tube Kit) |
| 29 | W10843121 Whirlpool Refrigerator Tube |
| 29 | WPW10143759 Whirlpool Dryer Filter |
