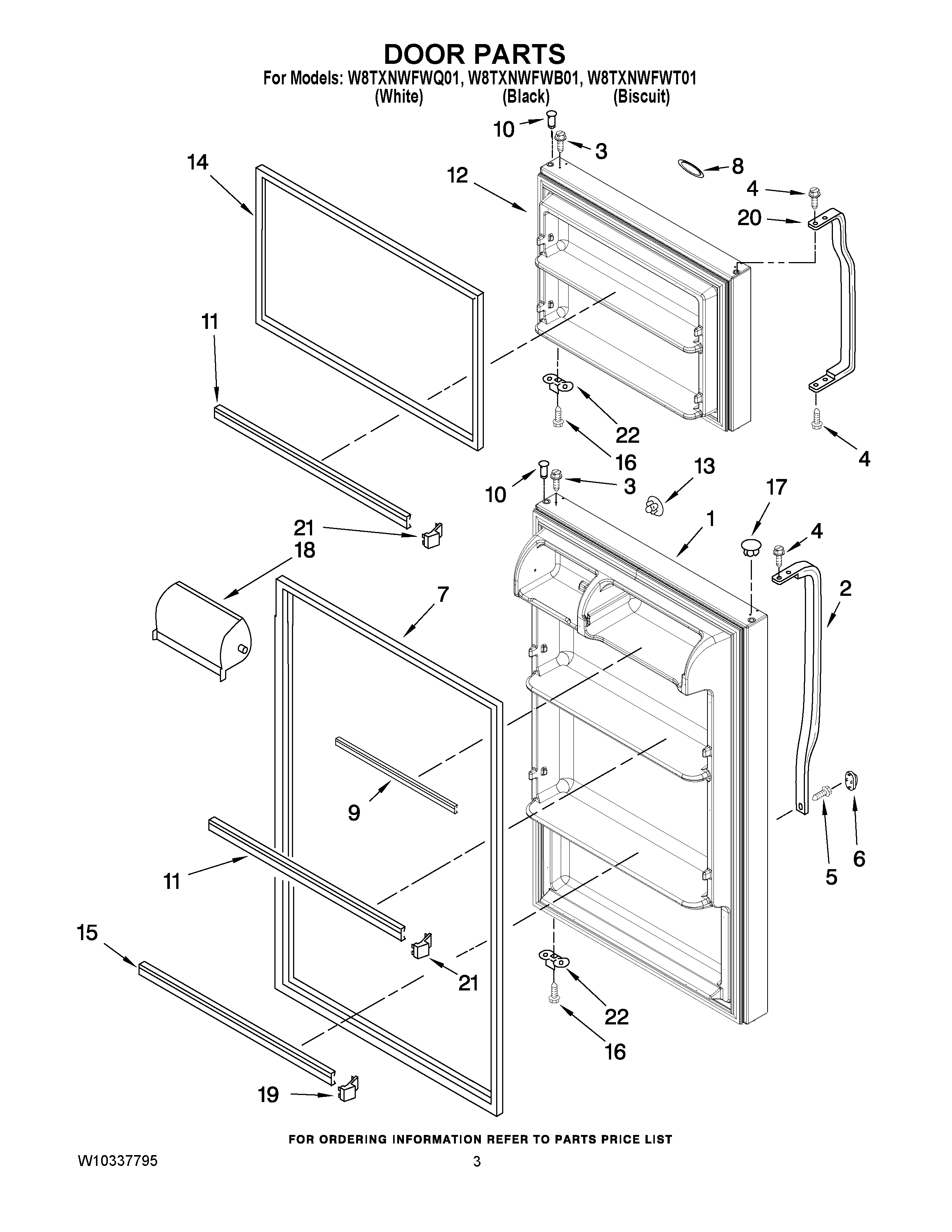

W8TXNWFWQ01 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door Includes (7 & 10) (Black)
1	Refrigerator Door (Includes Illus. 2,9, 11 & 13)
2	WP2221946T Whirlpool Refrigerator Handle
2	WP2326169B Whirlpool Refrigerator Handle
2	HANDLE
3	WP8281206 Whirlpool Refrigerator Screw
4	WP489357 Whirlpool Recessed Screw
5	WP8281146 Whirlpool Screw
6	WP2202819B Whirlpool Refrigerator Cover
6	Cover, Screw (Biscuit)
6	WP2202819W Whirlpool Refrigerator Cover
7	WP2319264B Whirlpool Door Gasket
7	WP2319264T Whirlpool Door Gasket
8	WP2213265 Whirlpool Refrigerator Nameplate
9	W11129820 Whirlpool Refrigerator Door Trim
10	WP2183003 Whirlpool Thimble
11	WP2266727 Whirlpool Refrigerator Door Trim
12	Freezer Door (Includes Illus. 14,18 & 24)
12	W11084609 Whirlpool Refrigerator Door Assembly
12	Freezer Door Includes (10 & 14) (Black)
13	WP2189000 Whirlpool Refrigerator Handle Plug
13	WP2189009 Whirlpool Refrigerator Handle Plug
13	WP2200936 Whirlpool Refrigerator Handle Plug
14	WP2319263T Whirlpool Refrigerator FIP Gasket
14	WP2319263B Whirlpool Refrigerator Black Door Gasket
15	WP2266738 Whirlpool Refrigerator Door Trim
16	WP488921 Whirlpool Refrigerator Screw
17	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17	WP2212649 Whirlpool Refrigerator Button Plug
17	WP2212651 Whirlpool Refrigerator Button Plug
18	DOOR-COMP
19	ENDCAP
20	HANDLE
20	2202098B Whirlpool Refrigerator Handle
20	WP2215015 Whirlpool Refrigerator Handle
21	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
22	W11745278 Whirlpool Bracket
