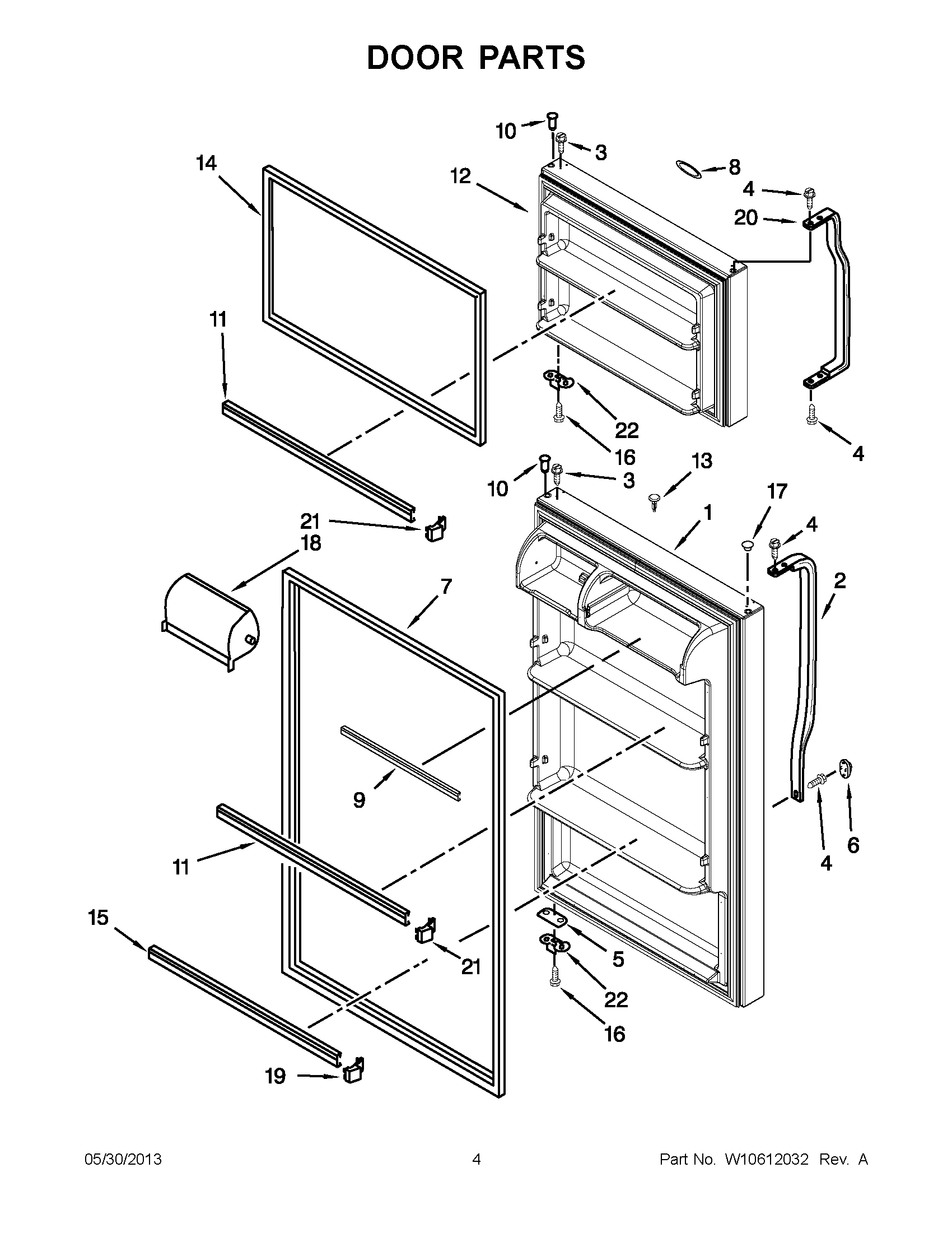

W8TXNWMBB00 02 – DOOR PARTS

W8TXNWMBB00 02 – DOOR PARTS

Written by

in

W8TXNWMBB00 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door Includes (7 & 10) (Black)
1Refrigerator Door (Includes Illus. 2,9, 11 & 13)
2WP2326169B Whirlpool Refrigerator Handle
2HANDLE
3WP8281206 Whirlpool Refrigerator Screw
4WP489357 Whirlpool Recessed Screw
5WP2258681W Whirlpool Refrigerator Shim
52258681B Whirlpool Refrigerator Shim
6WP2202819W Whirlpool Refrigerator Cover
6WP2202819B Whirlpool Refrigerator Cover
7WP2319264T Whirlpool Door Gasket
7WP2319264B Whirlpool Door Gasket
8W11178521 Whirlpool Dishwasher Nameplate
9W11129820 Whirlpool Refrigerator Door Trim
10WP2183003 Whirlpool Thimble
11WP2266727 Whirlpool Refrigerator Door Trim
12Freezer Door (Includes Illus. 14,18 & 24)
12Freezer Door Includes (10 & 14) (Black)
13WP2189000 Whirlpool Refrigerator Handle Plug
13WP2189009 Whirlpool Refrigerator Handle Plug
14WP2319263B Whirlpool Refrigerator Black Door Gasket
14WP2319263T Whirlpool Refrigerator FIP Gasket
15WP2266738 Whirlpool Refrigerator Door Trim
16WP488921 Whirlpool Refrigerator Screw
17WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17WP2212651 Whirlpool Refrigerator Button Plug
18DOOR-COMP
19ENDCAP
202202098B Whirlpool Refrigerator Handle
20HANDLE
21WP2156003 Whirlpool Refrigerator Door Shelf End Cap
22W11745278 Whirlpool Bracket
