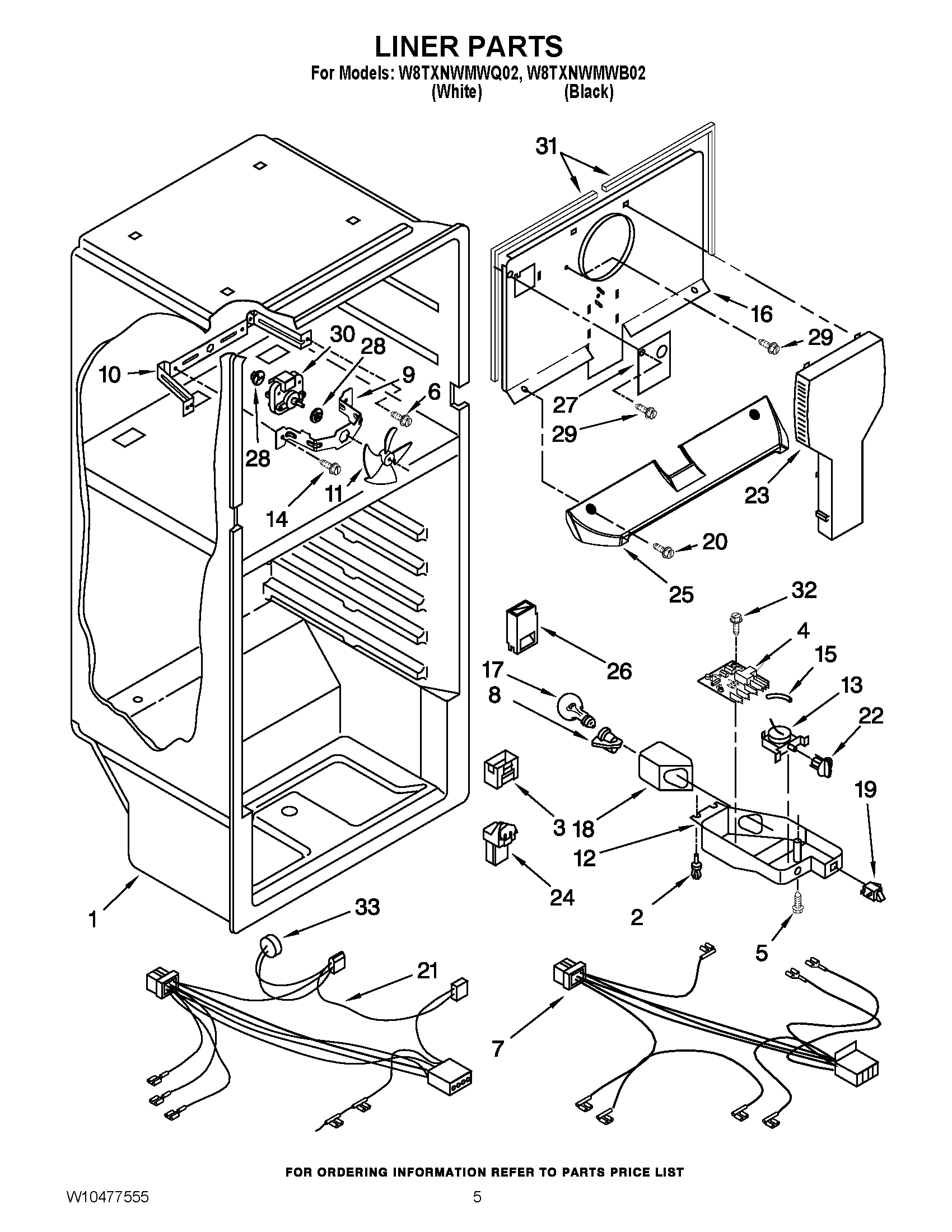

W8TXNWMWQ02 03 – LINER PARTSadmin2025-04-26T11:07:47+00:00W8TXNWMWQ02 03 – LINER PARTS ProductsPositionProduct1CABINET (NOT A SERVICEABLE PART)2939962 Whirlpool Refrigerator Rivet3Cover, Air Diffuser44388931 Whirlpool Defrost Timer5WP489174 Whirlpool Refrigerator Screw6WP489442 Whirlpool Refrigerator Screw72265930 Whirlpool Refrigerator Wire Harness84387478 Whirlpool Refrigerator Light Socket9WPW10180172 Whirlpool Refrigerator Bracket10Fan Mounting Bracket11WP2169142 Whirlpool Fan Blade122215210 Whirlpool Refrigerator Control Box13WPW10511937 Whirlpool Thermostat Control14WP489399 Whirlpool Refrigerator Screw15WP2196003 Whirlpool Refrigerator Bar Riser16WP2215193 Whirlpool Evaporator Cover17RANGE ONLY 40W 120V APPL BULB18W11034434 Whirlpool Refrigerator Light Lens19W11384469 Whirlpool Door Switch20WP489474 Whirlpool Refrigerator Screw21W10290502 Whirlpool Refrigerator Wire Harness22WP2202885 Whirlpool Refrigerator Thermal Knob239790408 Whirlpool Refrigerator Air Tower24Hood And Foil Assembly25Cover, Air Return26Air Diffuser27WP2217784 Whirlpool Refrigerator Cover28WP2264462 Whirlpool Refrigerator Grommet29WP489478 Whirlpool Refrigerator Screw30WPW10188389 Whirlpool Evaporator Fan Motor31GASKET, EVAP COVER32WP487353 Whirlpool Refrigerator Screw33WPW10225581 Whirlpool Refrigerator Defrost Thermostat
