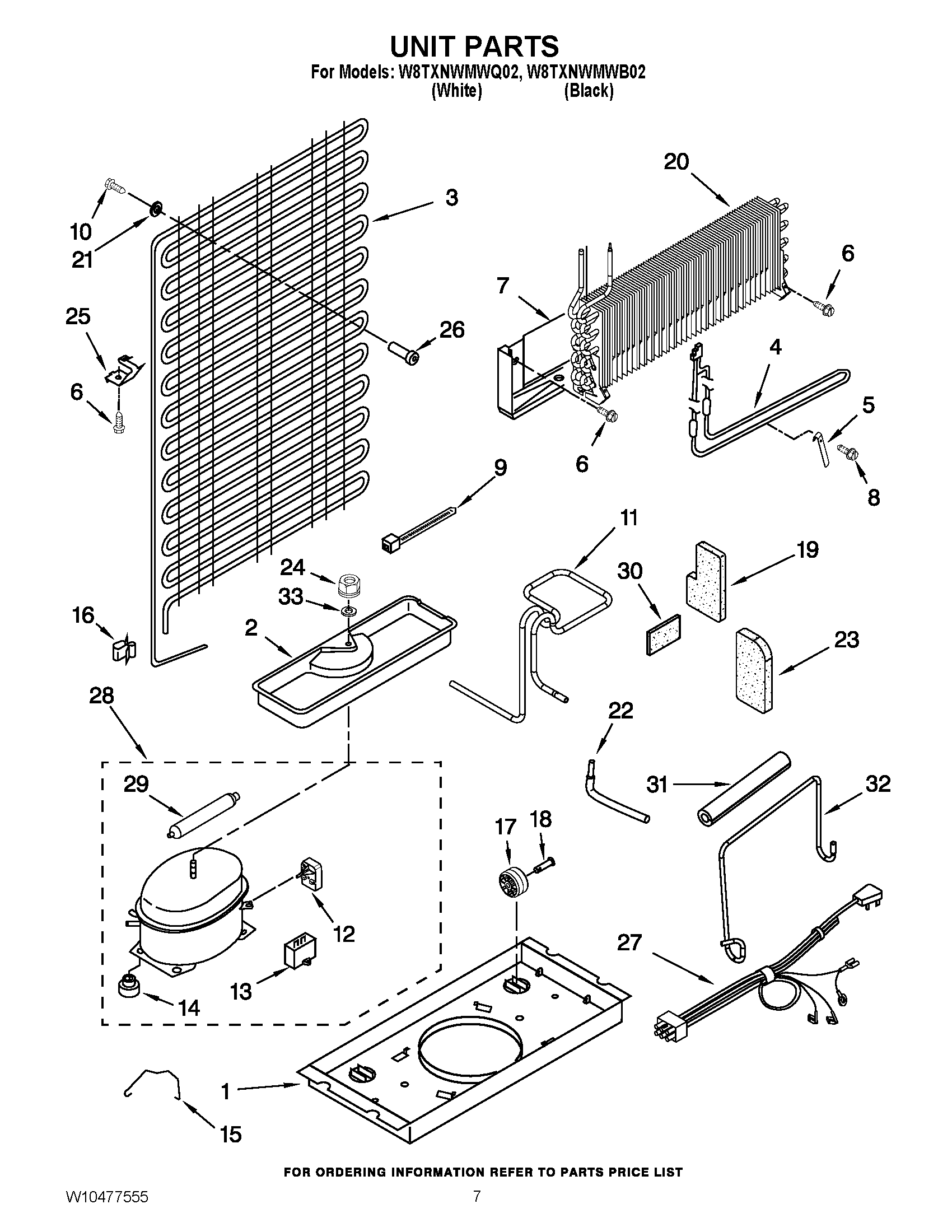

W8TXNWMWQ02 04 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10222451 Whirlpool Refrigerator Support
2	EVAPORATOR TRAY
3	WPW10219349 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	W10856574 Whirlpool Refrigerator Heat Probe
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
8	WP489478 Whirlpool Refrigerator Screw
9	WPW10339879 Whirlpool Wire Tie
10	Screw
11	WPW10442467 Whirlpool Refrigerator Tube
12	WPW10399283 Whirlpool Refrigerator Start Device
13	WP65889-4 Whirlpool Refrigerator Capacitor
14	WPW10169124 Whirlpool Refrigerator Grommet
15	2212996 Whirlpool Refrigerator Retainer
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	8526417 Whirlpool Washer
22	W11676464 Whirlpool Tube
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
27	W10151654 Whirlpool Refrigerator Wire Harness
28	W10822653 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	W11553819 Whirlpool Refrigerator Insulation
31	2264838 Whirlpool Refrigerator Sleeve
32	EXTENSION, HEAT TUBE
33	WP487802 Whirlpool Refrigerator Washer
