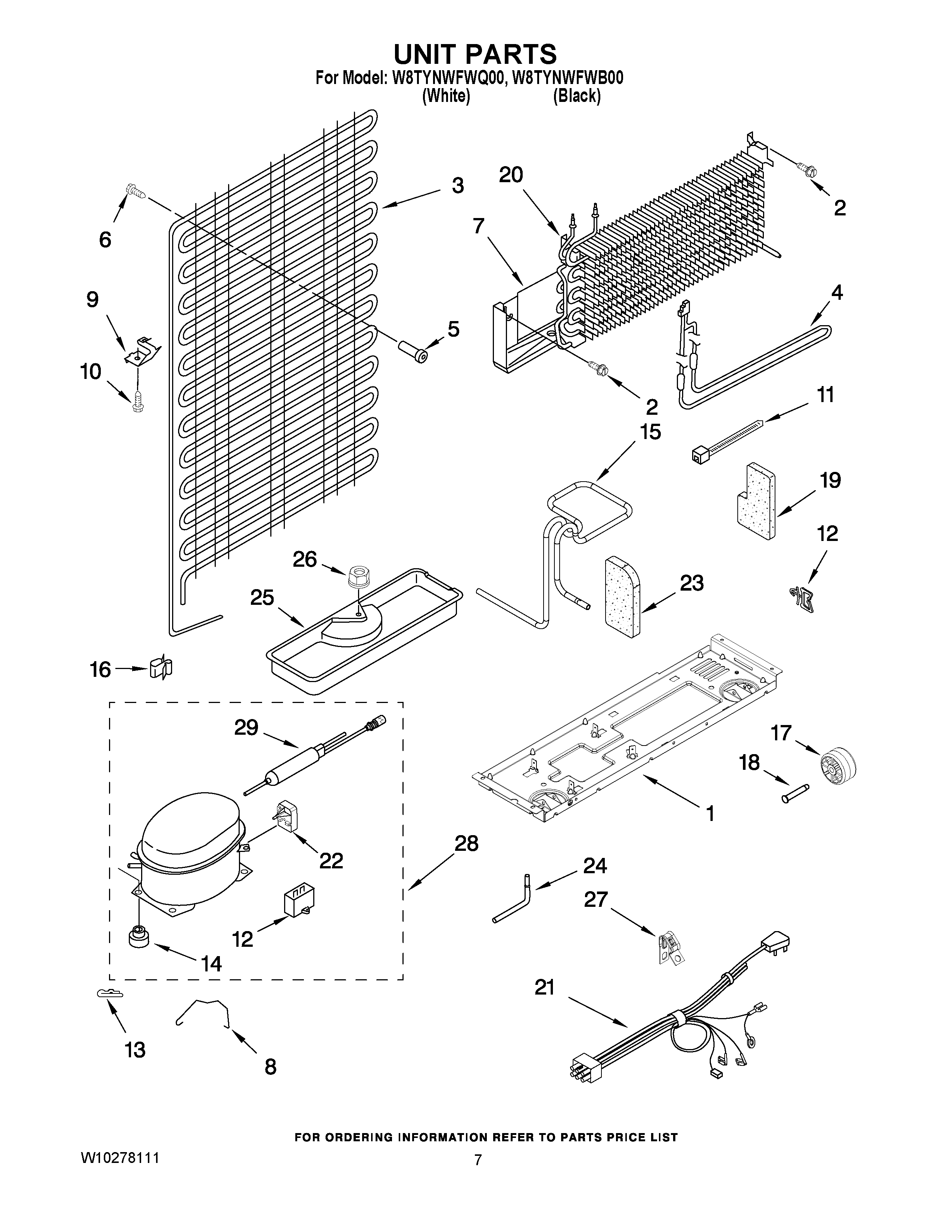

W8TYNWFWB00 04 – UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10222451 Whirlpool Refrigerator Support
3	WPW10219349 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2258452 Whirlpool Refrigerator Spacer
6	Screw
7	Heat Shield
8	2212996 Whirlpool Refrigerator Retainer
9	4386951 Whirlpool Refrigerator Clip
10	WP489442 Whirlpool Refrigerator Screw
11	WPW10339879 Whirlpool Wire Tie
12	WPW10662129 Whirlpool Refrigerator Run Capacitor
13	Clip, Compressor
14	WPW10169124 Whirlpool Refrigerator Grommet
15	Tube, Discharge
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	W10151654 Whirlpool Refrigerator Wire Harness
22	WP2225929 Whirlpool Refrigerator Start Device
24	W11676464 Whirlpool Tube
25	Tray, Evaporator
26	285002 Whirlpool Nut
27	549193 Whirlpool Refrigerator Power Clamp
28	Compressor (Includes Items 12,13,14,22,29, 32 & 34) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29	W10843121 Whirlpool Refrigerator Tube
29	WPW10143759 Whirlpool Dryer Filter
