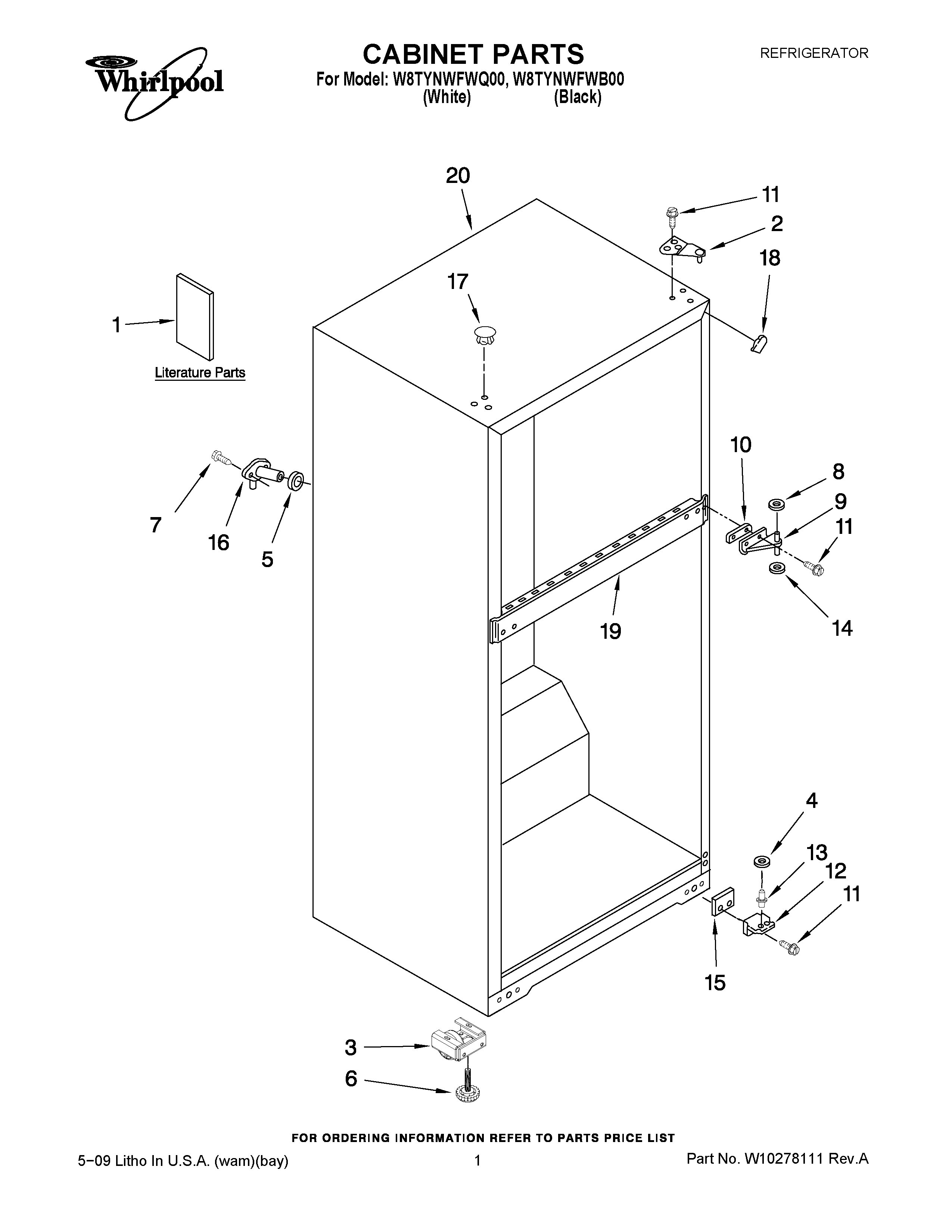

W8TYNWFWQ00 01 – CABINET PARTS

W8TYNWFWQ00 01 – CABINET PARTS

Written by

in

W8TYNWFWQ00 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Service & Wiring Sheet
1ENERGY GUIDE
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
5WP1106508 Whirlpool Refrigerator Gasket
6WPW10133299 Whirlpool Refrigerator Screw
7WP488729 Whirlpool Refrigerator Door Screw
8WP489467 Whirlpool Hinge Shim
9WP2166037 Whirlpool Refrigerator Door Hinge
102166043 Whirlpool Refrigerator Shim
11WP489497 Whirlpool Screw
12WP2325482 Whirlpool Bottom Hinge
13WP2325483 Whirlpool Hinge Pin
14WP487576 Whirlpool Washer
15WP2201567 Whirlpool Hinge Shim
16WP2196157 Whirlpool Fill Tube
17WP2151652 Whirlpool Refrigerator Button Plug
17WP2183998 Whirlpool Refrigerator Button Plug
18W11500943 Whirlpool Refrigerator Filler
18W10859322 Whirlpool Refrigerator Filler
19Rail, Center (Not Serviced)
20Cabinet, (Not A Serviceable Part)
