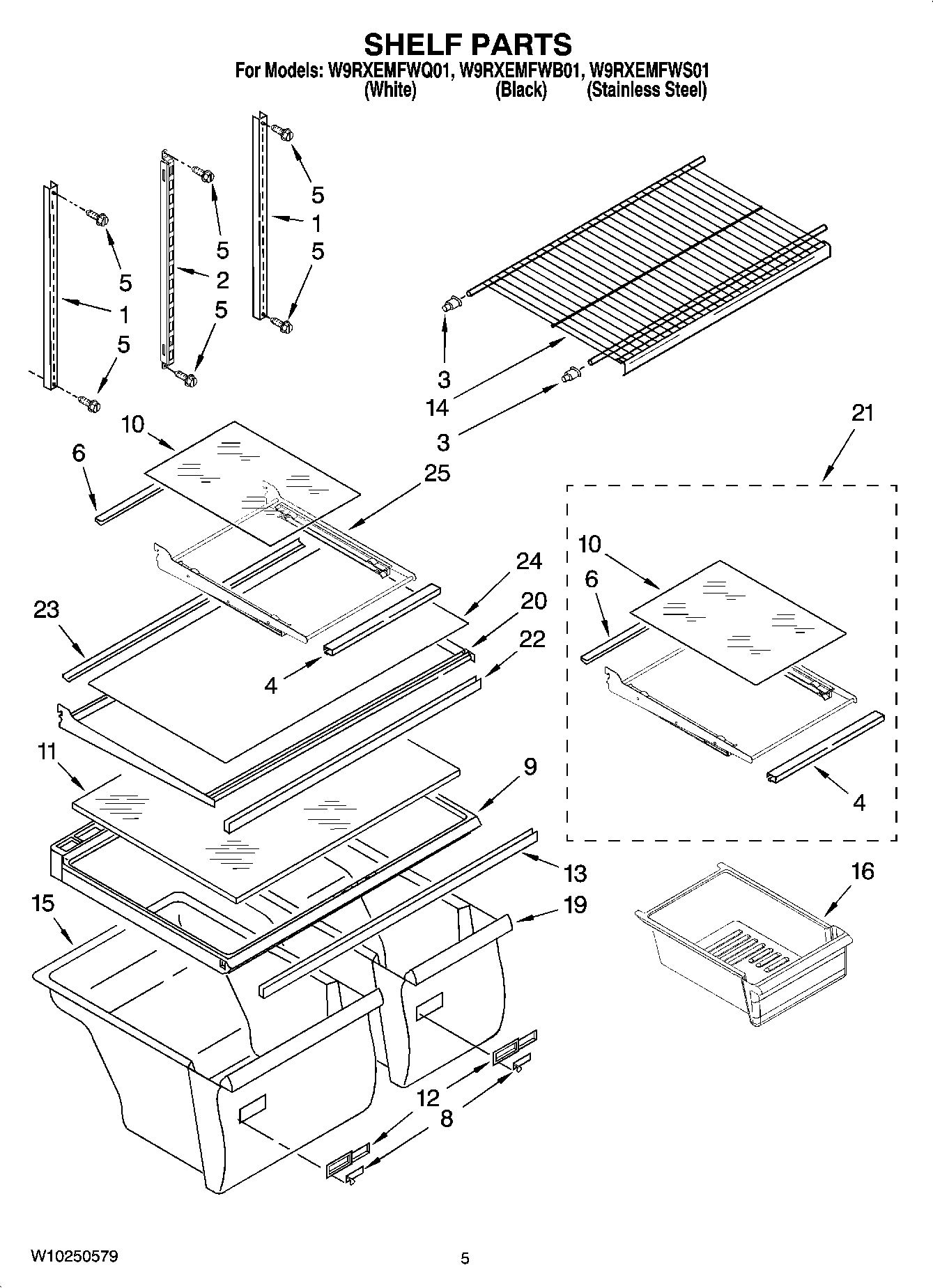

W9RXEMFWS01 03 – SHELF PARTSadmin2025-04-26T11:09:44+00:00W9RXEMFWS01 03 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 3 | 2163762 Whirlpool Refrigerator Cup Assembly |
| 4 | Trim, Shelf Front |
| 5 | WP489478 Whirlpool Refrigerator Screw |
| 6 | WP2188689 Whirlpool Refrigerator Shelf Trim |
| 8 | WP2176222 Whirlpool Refrigerator Slide |
| 9 | WP2314548 Whirlpool Refrigerator Cover |
| 10 | Glass, Meat Cover |
| 11 | WP2169921 Whirlpool Refrigerator Glass Shelf |
| 12 | WP2212446 Whirlpool Refrigerator Control Body |
| 13 | WP2172748 Whirlpool Drawer Support |
| 14 | Shelf, Freezer |
| 15 | W10854037 Whirlpool Refrigerator Crisper Pan |
| 16 | PAN-MEAT |
| 19 | W10856580 Whirlpool Crisper Pan |
| 20 | Shelf, Full Cantilever |
| 21 | Shelf, Cantilever Meat Pan |
| 22 | Trim, Shelf (Front) |
| 24 | Glass, Full Shelf |
| 25 | Shelf, Catnilever |
