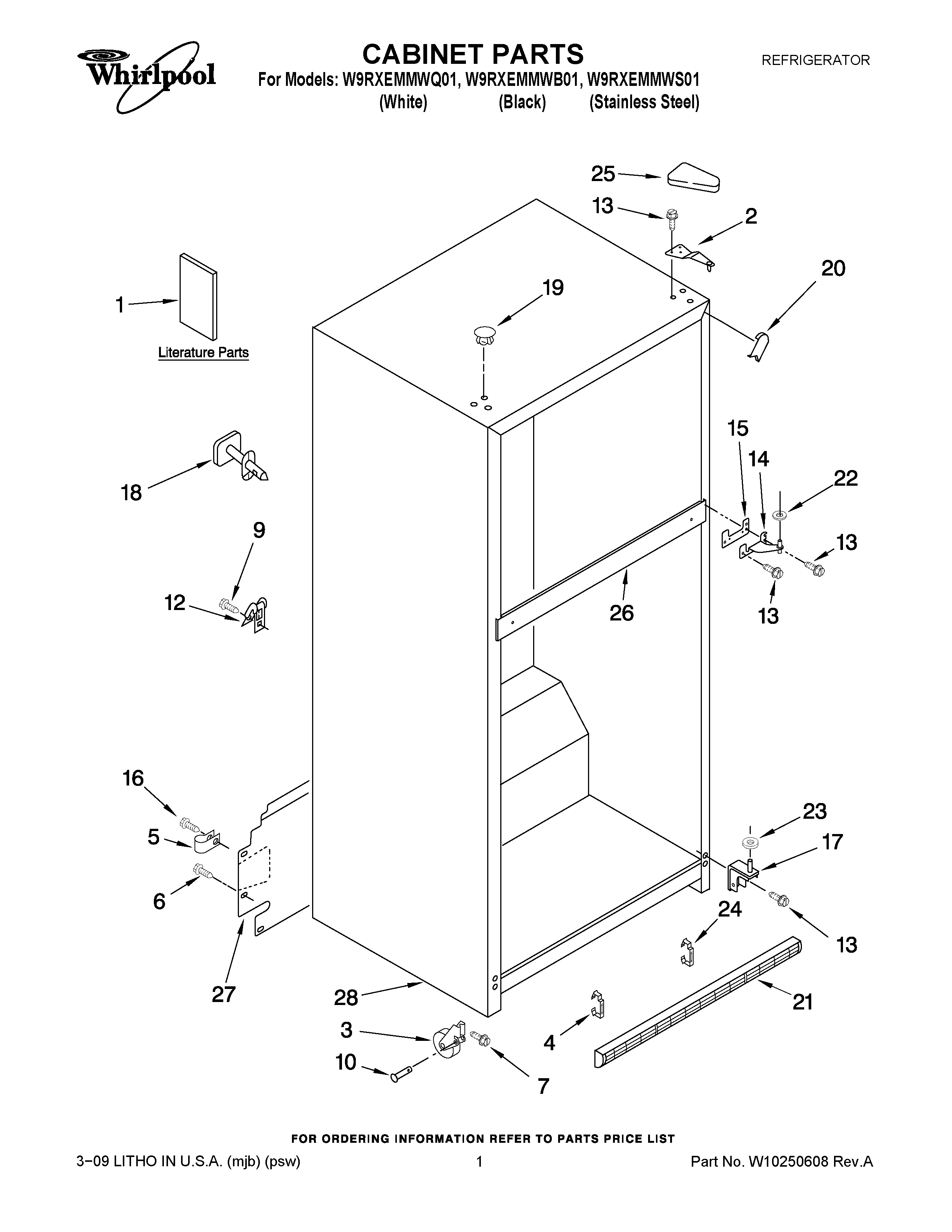

W9RXEMMWS01 01 – CABINET PARTS

W9RXEMMWS01 01 – CABINET PARTS

Written by

in

W9RXEMMWS01 01 – CABINET PARTS

Products

PositionProduct
1Modular Icemaker Service Sheet
1Service & Wiring Sheet
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Use & Care Guide (Bilingual)
1Use & Care Guide (Trilingual)
1Energy Label
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4CLIP, GRILLE
5WP488366 Whirlpool Refrigerator Clamp
6WP489427 Whirlpool Refrigerator Screw
7WP3400504 Whirlpool Refrigerator Screw
9WP489442 Whirlpool Refrigerator Screw
10W11594405 Whirlpool Axle
12549193 Whirlpool Refrigerator Power Clamp
13WP489497 Whirlpool Screw
14WP2254618 Whirlpool Center Door Hinge
15WP2183852 Whirlpool Refrigerator Shim
16WP489464 Whirlpool Refrigerator Screw
17WP2254473 Whirlpool Refrigerator Door Hinge
18Fitting, Water Tube (Not Serviced)
19WP2183998 Whirlpool Refrigerator Button Plug
19WP2151652 Whirlpool Refrigerator Button Plug
20W11252732 Whirlpool Refrigerator Filler
20WPW10283959 Whirlpool Refrigerator Filler
21WP2254386 Whirlpool Refrigerator Grille
21Grille (Includes Illus. 4 & 24) (Black)
22WP489467 Whirlpool Hinge Shim
23WP487576 Whirlpool Washer
242254385 Whirlpool Refrigerator Clip
25WP2213360 Whirlpool Refrigerator Cover
25WP2213363 Whirlpool Refrigerator Cover
26Rail, Center (Not Serviced)
27Cover, Unit
28Cabinet, (Not A Serviceable Part)
