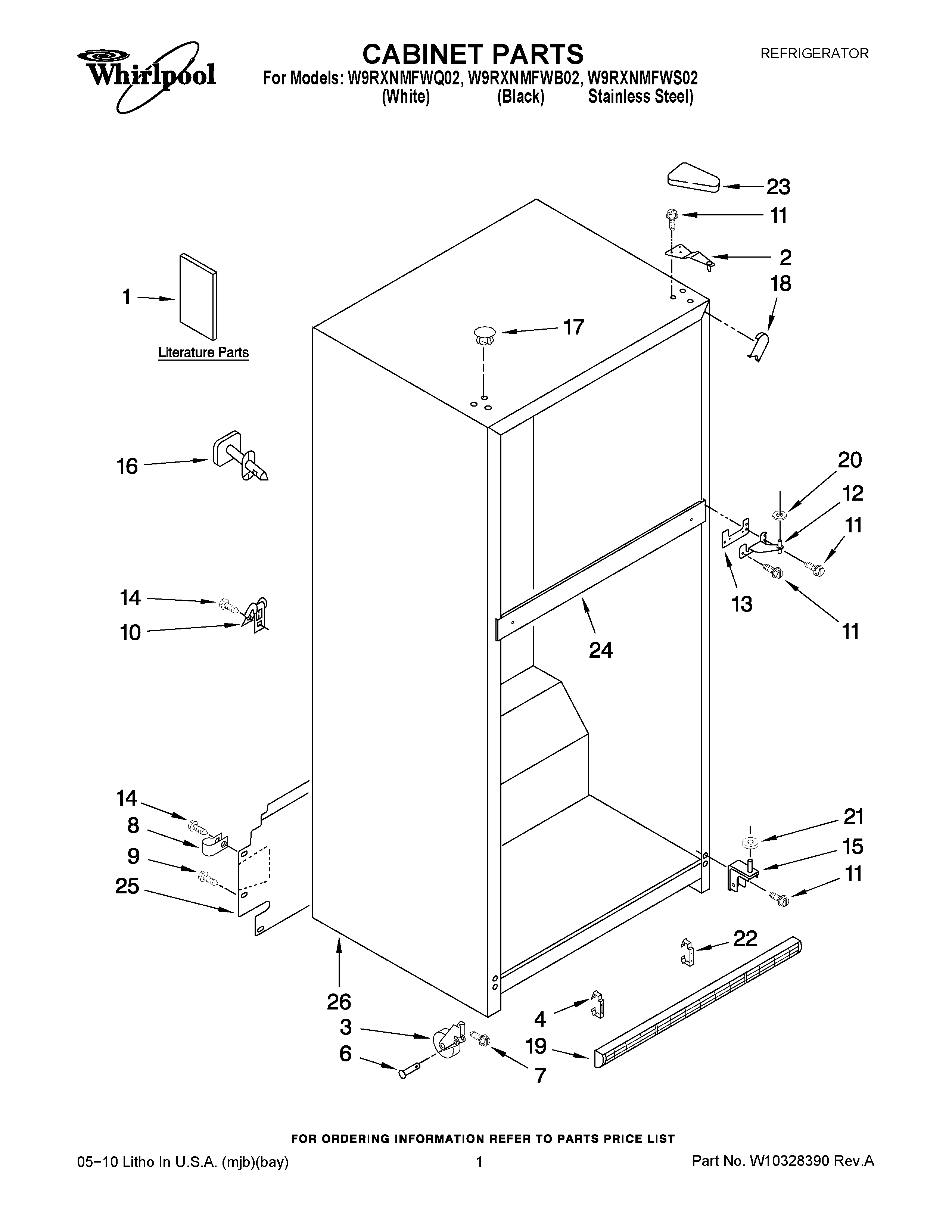

W9RXNMFWB02 01 – CABINET PARTS

Products

PositionProduct
1Energy Label
1SERVICE & WIRING SHEET
1USE & CARE GUIDE (TRILINGUAL)
1USE & CARE GUIDE (BILINGUAL)
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4CLIP, GRILLE
6W11594405 Whirlpool Axle
7WP3400504 Whirlpool Refrigerator Screw
8WP488366 Whirlpool Refrigerator Clamp
9WP489427 Whirlpool Refrigerator Screw
10549193 Whirlpool Refrigerator Power Clamp
11WP489497 Whirlpool Screw
12WP2254618 Whirlpool Center Door Hinge
13WP2183852 Whirlpool Refrigerator Shim
14WP489464 Whirlpool Refrigerator Screw
15WP2254473 Whirlpool Refrigerator Door Hinge
17WP2183998 Whirlpool Refrigerator Button Plug
17WP2151652 Whirlpool Refrigerator Button Plug
18WPW10283959 Whirlpool Refrigerator Filler
18W11252732 Whirlpool Refrigerator Filler
19WP2254386 Whirlpool Refrigerator Grille
19Grille (Includes Illus. 4 & 24) (Black)
20WP489467 Whirlpool Hinge Shim
21WP487576 Whirlpool Washer
222254385 Whirlpool Refrigerator Clip
23WP2213363 Whirlpool Refrigerator Cover
23WP2213360 Whirlpool Refrigerator Cover
25Cover, Unit
26CABINET (NOT A SERVICEABLE PART)
