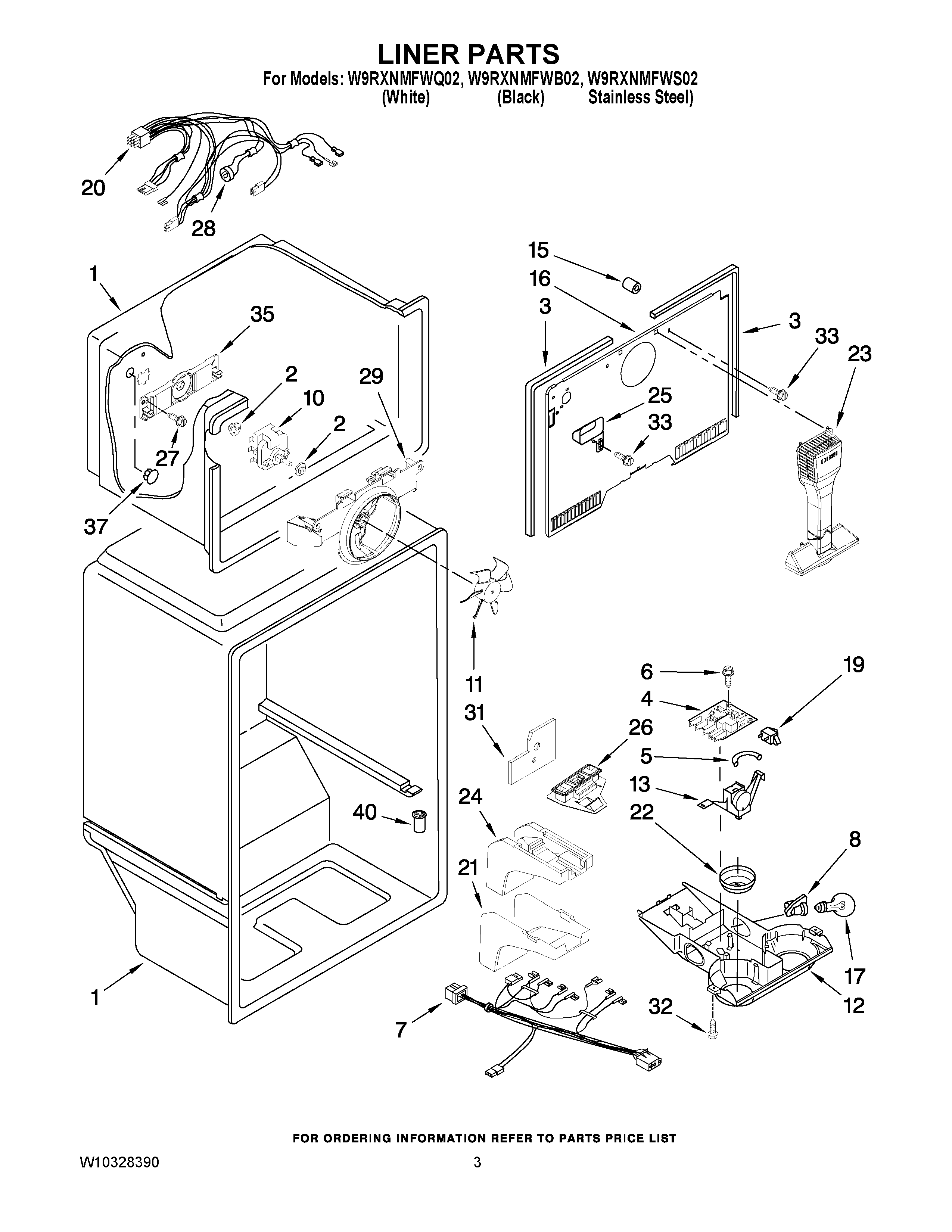

W9RXNMFWB02 02 – LINER PARTSadmin2025-04-26T11:10:34+00:00W9RXNMFWB02 02 – LINER PARTS ProductsPositionProduct1CABINET (NOT A SERVICEABLE PART)2WP2264462 Whirlpool Refrigerator Grommet3WP2254360 Whirlpool Refrigerator Gasket4WP2314156 Whirlpool Refrigerator Defrost Timer5WP2196003 Whirlpool Refrigerator Bar Riser6WP98129 Whirlpool Screw7Wire Assembly Control Box84387478 Whirlpool Refrigerator Light Socket10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor11WP2163777 Whirlpool Refrigerator Fan Blade12Control Box13WP2204605 Whirlpool Refrigerator Thermostat15WP487996 Whirlpool Refrigerator Cap Tube16Cover, Evaporator17W10887190 Whirlpool Refrigerator Light Bulb19W11384469 Whirlpool Door Switch20W10129799 Whirlpool Wire Harness21Cover, Air Diffuser22WP2202885 Whirlpool Refrigerator Thermal Knob23WP2254354 Whirlpool Refrigerator Air Tower24WP2189452 Whirlpool Refrigerator Diffuser25Cover, Hole26Air Separator Assembly27WP488163 Whirlpool Refrigerator Screw28WP2321800 Whirlpool Refrigerator Bimetallic Defrost29BRACKET, FAN MOTOR31Shield, heat32WP489442 Whirlpool Refrigerator Screw33WP489478 Whirlpool Refrigerator Screw352254454 Whirlpool Refrigerator Bracket37WP941839 Whirlpool Refrigerator Button Plug40WP2210509 Whirlpool Refrigerator Tub Valve
