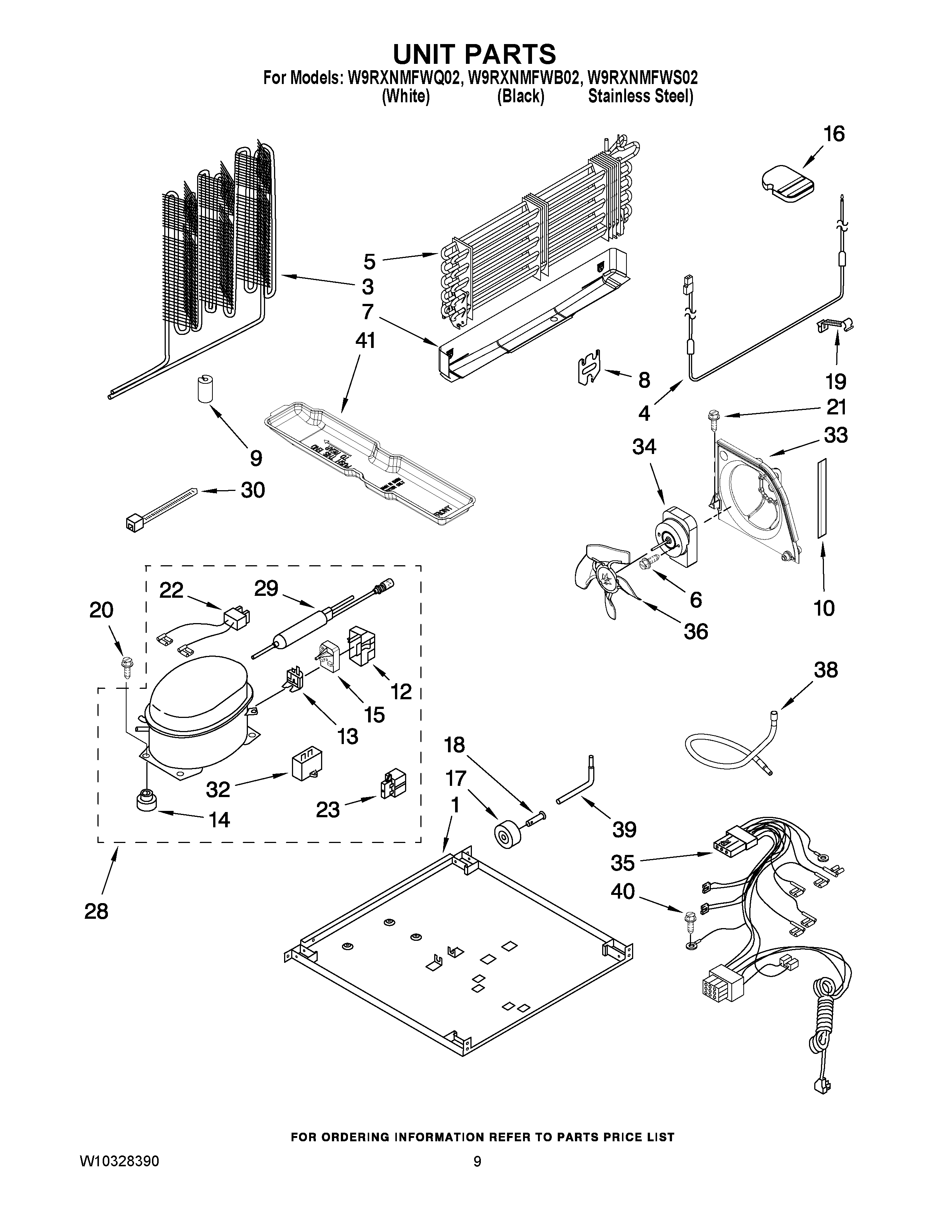

W9RXNMFWB02 05 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	Plate, Unit Mounting
3	Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	W11501418 Whirlpool Refrigerator Screw
7	Drain Pan
8	Bracket, Heater
9	W10852725 Whirlpool Refrigerator Grommet
10	Extension, Air Baffle
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2302290 Whirlpool Refrigerator Overload
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	8201647 Whirlpool Refrigerator Start Device
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	3400518 Whirlpool Oven Foot Mount Screw
22	WP2172890 Whirlpool Refrigerator Wire
23	WP2258450 Whirlpool Refrigerator Start Device
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP2315541 Whirlpool Refrigerator Air Baffle
34	WP2188874 Whirlpool Refrigerator Condenser Motor
35	2187382 Whirlpool Refrigerator Wire Harness
36	W11458267 Whirlpool Refrigerator Fan Blade
38	2205293 Whirlpool Refrigerator Tube
39	W11676464 Whirlpool Tube
40	WP489128 Whirlpool Refrigerator Screw
41	WP2254574 Whirlpool Refrigerator Evaporator Tray
