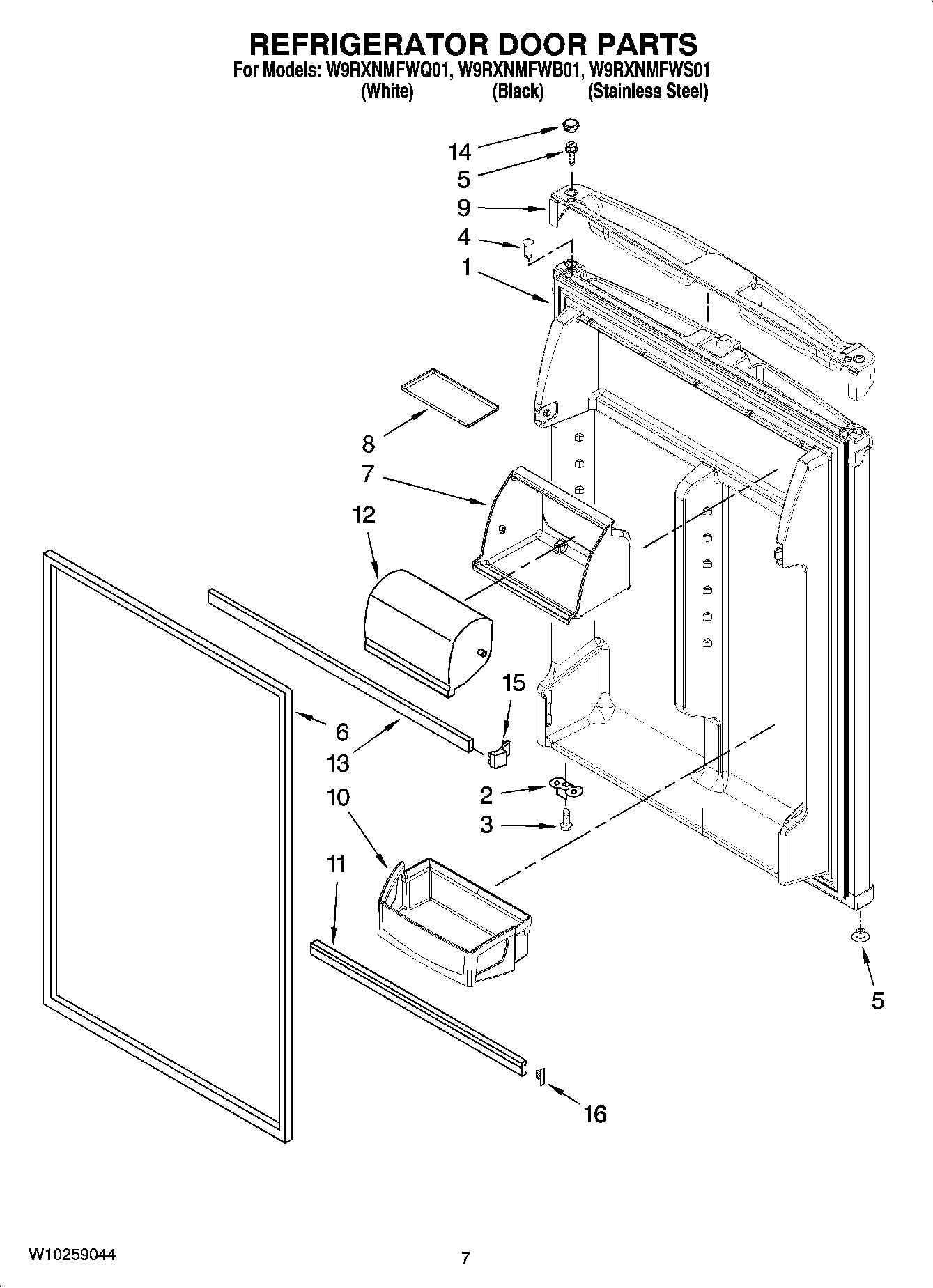

W9RXNMFWQ01 04 – REFRIGERATOR DOOR PARTS

W9RXNMFWQ01 04 – REFRIGERATOR DOOR PARTS

Written by

in

W9RXNMFWQ01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES LLLUS. 8 & 12) (STAINLESS STEEL)
1Refrigerator Door (Includes Illus. 8 & 12) (Black)
1Refrigerator Door (Includes Illus. 8 & 12) (White)
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4WP2183003 Whirlpool Thimble
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5WP2212651 Whirlpool Refrigerator Button Plug
62177305 Whirlpool Refrigerator Door FIP Gasket
62159057 Whirlpool Refrigerator Fresh Food Door Gasket
7Housing Compartment
8Tray, Door
9Endcap, Handle (White)
9Endcap, Handle (Black)
10Bin, Door (4)
11WPW10421484 Whirlpool Refrigerator Door Trim
12DOOR-COMP
13WP2159312 Whirlpool Refrigerator Door Trim
14HOLE PLUG, ENDCAP (WHITE)
14HOLE PLUG, ENDCAP (BLACK)
15Endcap, Door Trim
16WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
