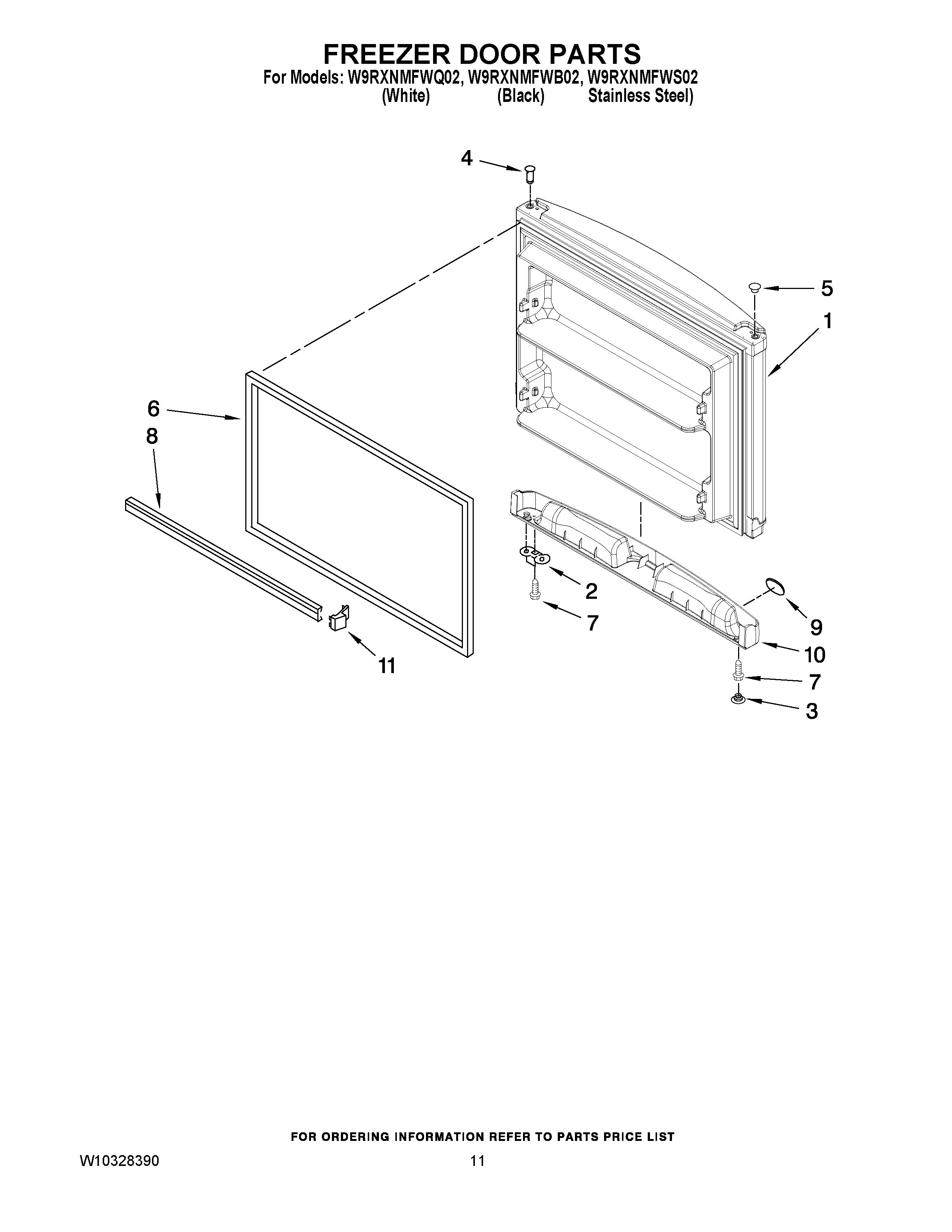

W9RXNMFWQ02 06 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes Illus. 6 & 7) (White)
1FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (STAINLESS)
2W11745278 Whirlpool Bracket
3HOLE PLUG, ENDCAP (BLACK)
3HOLE PLUG, ENDCAP (WHITE)
4WP2183003 Whirlpool Thimble
5WP2212651 Whirlpool Refrigerator Button Plug
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
62177304 Whirlpool Refrigerator FIP Gasket
62159327 Whirlpool Refrigerator Door Gasket
7WP681249 Whirlpool Screw Assembly
8Trim-Door (2)
9WP2213265 Whirlpool Refrigerator Nameplate
10Endcap, Handle (White)
10Endcap, Handle (Black)
11ENDCAP
