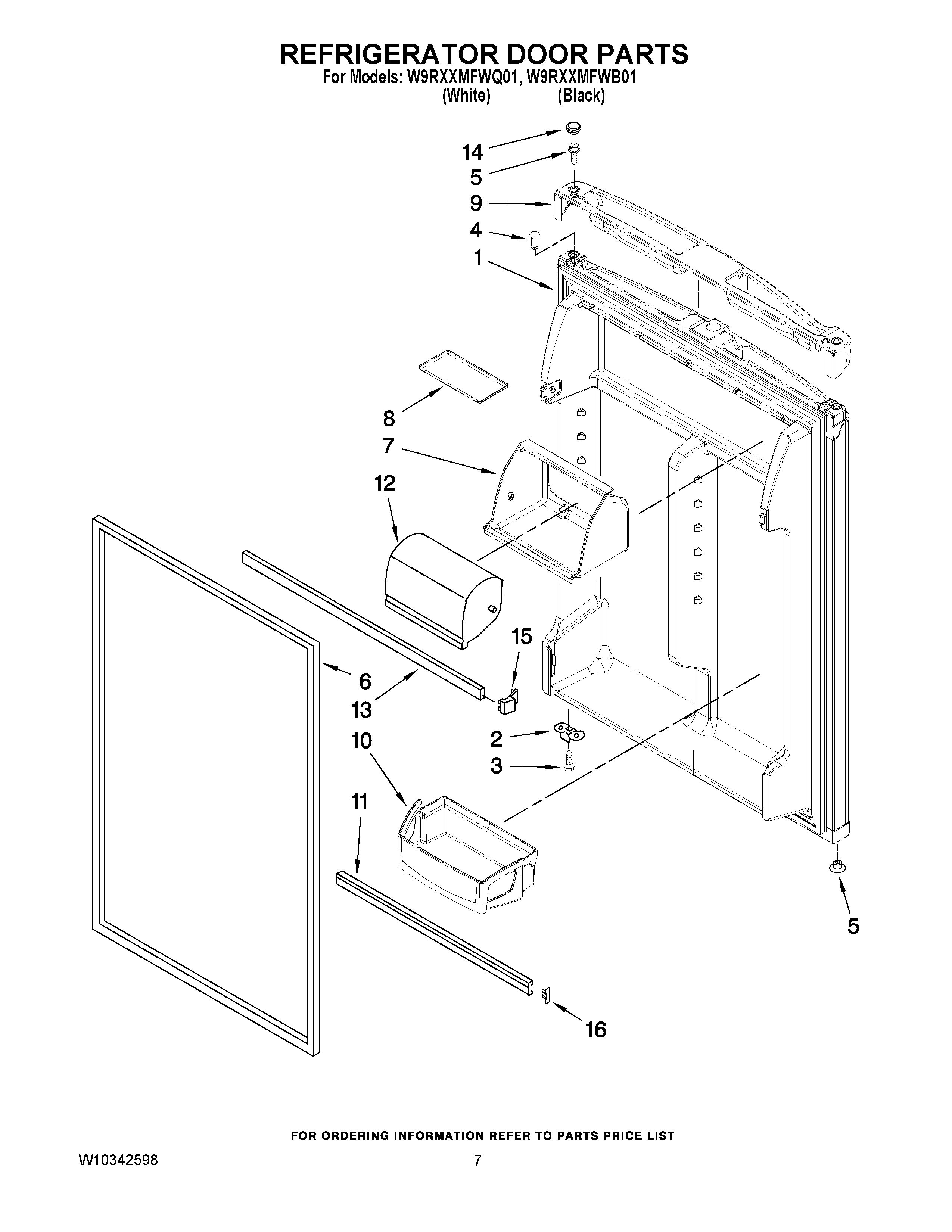

W9RXXMFWB01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 8 & 12) (Black)
1	Refrigerator Door (Includes Illus. 8 & 12) (White)
2	W11745278 Whirlpool Bracket
3	WP681249 Whirlpool Screw Assembly
4	WP2183003 Whirlpool Thimble
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5	WP2212651 Whirlpool Refrigerator Button Plug
6	2177305 Whirlpool Refrigerator Door FIP Gasket
6	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
7	Housing Compartment
8	Tray, Door
9	Endcap, Handle (White)
9	Endcap, Handle (Black)
10	Bin, Door (4)
11	WPW10421484 Whirlpool Refrigerator Door Trim
12	DOOR-COMP
13	WP2159312 Whirlpool Refrigerator Door Trim
14	HOLE PLUG, ENDCAP (WHITE)
14	HOLE PLUG, ENDCAP (BLACK)
15	Endcap, Door Trim
16	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
