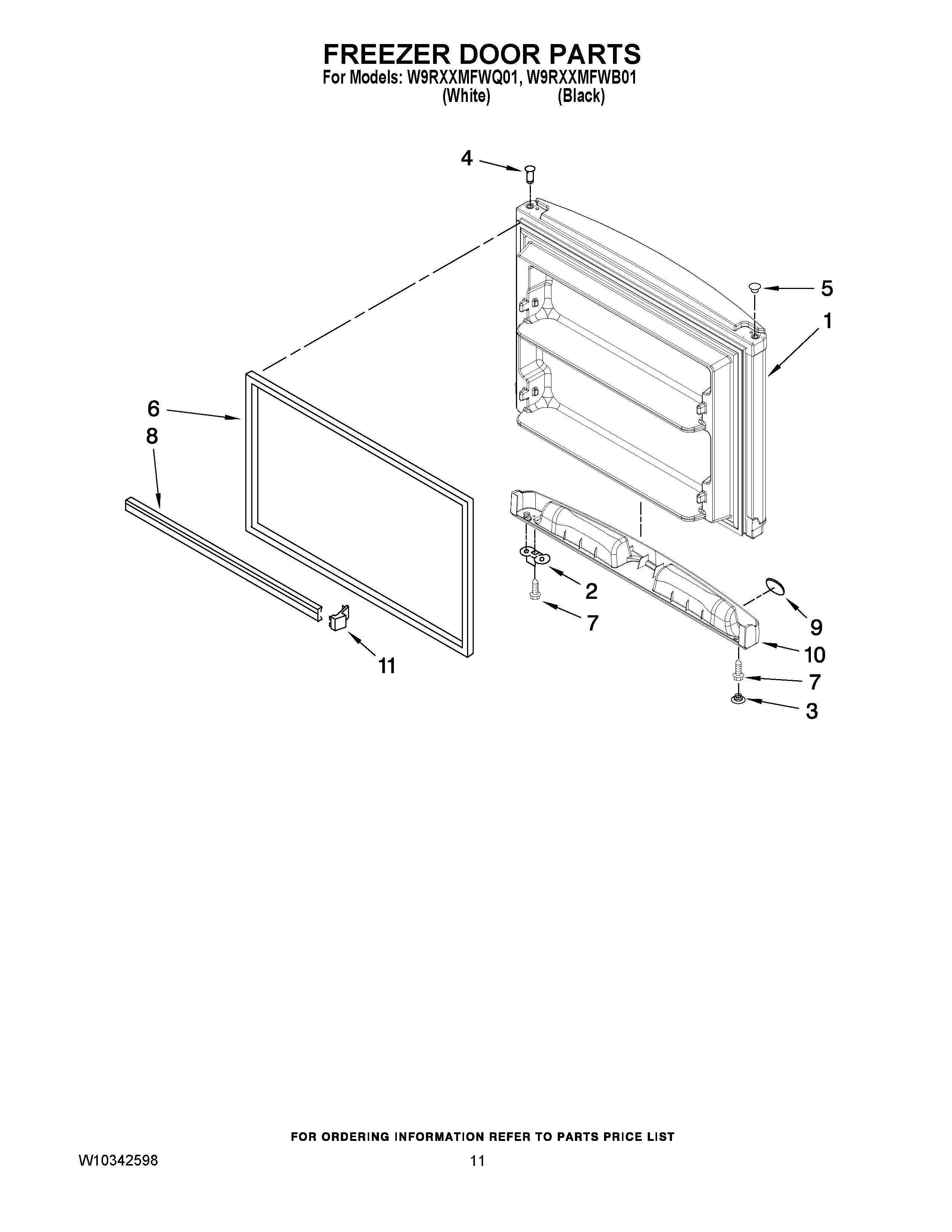

W9RXXMFWB01 06 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Illus. 6 & 7) (White)
1	Freezer Door (Includes Illus. 6 & 7) (Black)
2	W11745278 Whirlpool Bracket
3	HOLE PLUG, ENDCAP (WHITE)
3	HOLE PLUG, ENDCAP (BLACK)
4	WP2183003 Whirlpool Thimble
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5	WP2212651 Whirlpool Refrigerator Button Plug
6	2159327 Whirlpool Refrigerator Door Gasket
6	2177304 Whirlpool Refrigerator FIP Gasket
7	WP681249 Whirlpool Screw Assembly
8	Trim-Door (2)
9	WP2213265 Whirlpool Refrigerator Nameplate
10	Endcap, Handle (White)
10	Endcap, Handle (Black)
11	ENDCAP
