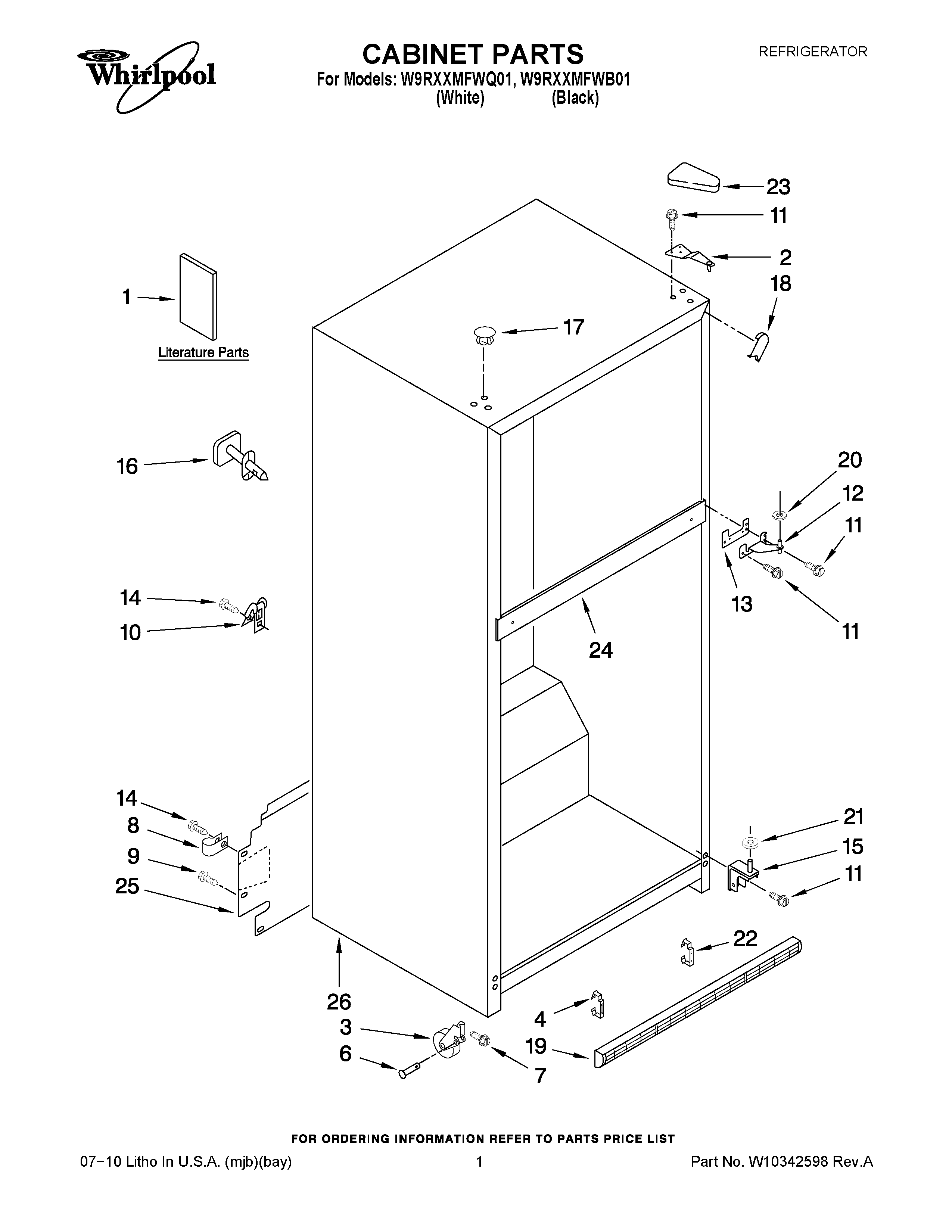

W9RXXMFWQ01 01 – CABINET PARTSadmin2025-04-26T11:07:33+00:00W9RXXMFWQ01 01 – CABINET PARTS ProductsPositionProduct1USE & CARE GUIDE (TRILINGUAL)1USE & CARE GUIDE (ENGLISH)1SERVICE & WIRING SHEET1ENERGY LABEL1DO-IT-YOURSELF MANUAL, REF./ FZR.2WP2261963 Whirlpool Refrigerator Door Hinge3WP2166108 Whirlpool Refrigerator Cabinet Roller4CLIP, GRILLE6W11594405 Whirlpool Axle7WP3400504 Whirlpool Refrigerator Screw8WP488366 Whirlpool Refrigerator Clamp9WP489427 Whirlpool Refrigerator Screw10549193 Whirlpool Refrigerator Power Clamp11WP489497 Whirlpool Screw12WP2254618 Whirlpool Center Door Hinge13WP2183852 Whirlpool Refrigerator Shim14WP489464 Whirlpool Refrigerator Screw15WP2254473 Whirlpool Refrigerator Door Hinge17WP2183998 Whirlpool Refrigerator Button Plug17WP2151652 Whirlpool Refrigerator Button Plug18WPW10283959 Whirlpool Refrigerator Filler18W11252732 Whirlpool Refrigerator Filler19WP2254386 Whirlpool Refrigerator Grille19Grille (Includes Illus. 4 & 24) (Black)20WP489467 Whirlpool Hinge Shim21WP487576 Whirlpool Washer222254385 Whirlpool Refrigerator Clip23WP2213363 Whirlpool Refrigerator Cover23WP2213360 Whirlpool Refrigerator Cover25Cover, Unit26CABINET (NOT A SERVICEABLE PART)
