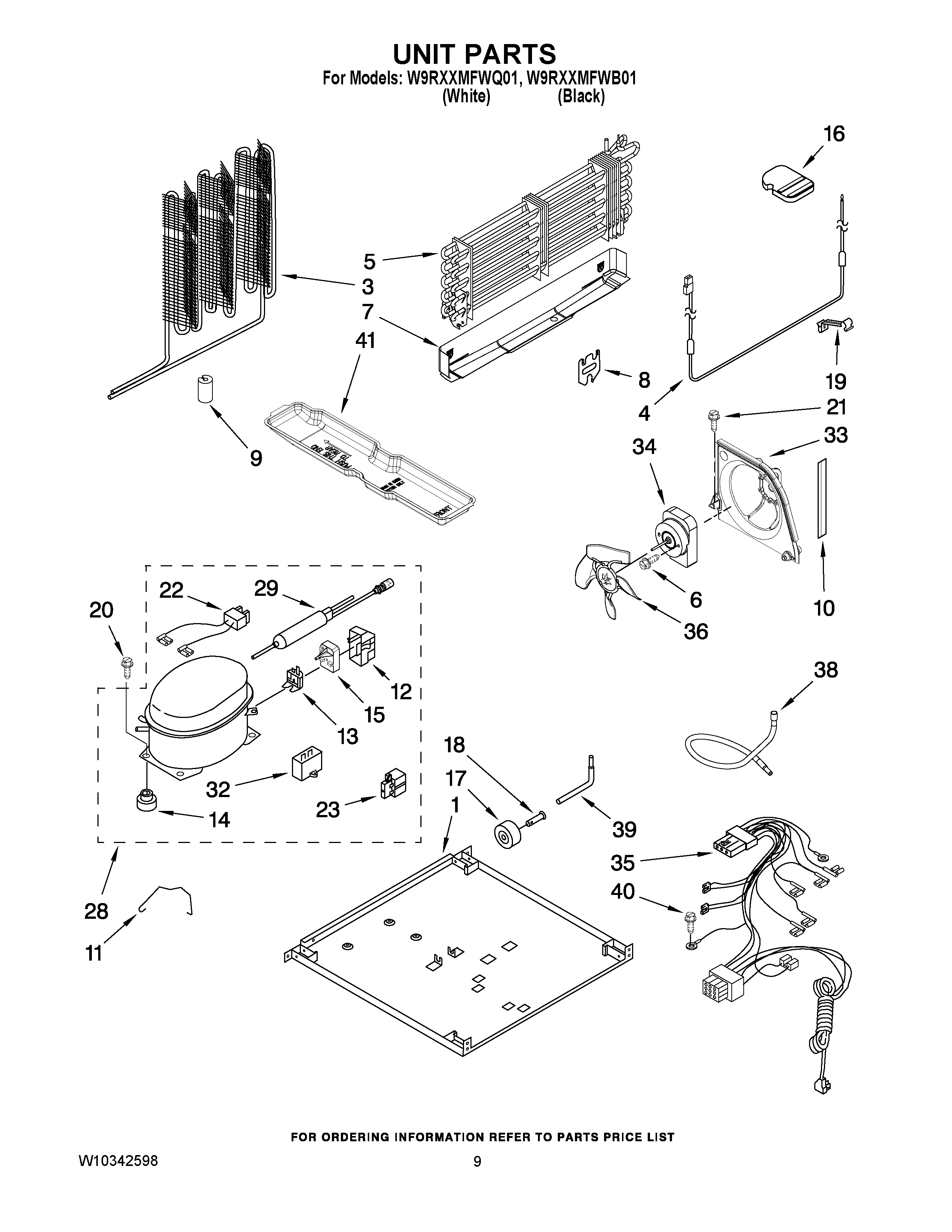

W9RXXMFWQ01 05 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (5/8“)
1	Plate, Unit Mounting
3	Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	W11501418 Whirlpool Refrigerator Screw
7	Drain Pan
8	Bracket, Heater
9	W10852725 Whirlpool Refrigerator Grommet
10	Extension, Air Baffle
11	W10204187 Whirlpool Refrigerator Retainer
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	WPW10197428 Whirlpool Start Device
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	3400518 Whirlpool Oven Foot Mount Screw
22	WP2172890 Whirlpool Refrigerator Wire
23	W10920279 Whirlpool Refrigerator Start Relay
28	W10309988 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP2315541 Whirlpool Refrigerator Air Baffle
34	WP2188874 Whirlpool Refrigerator Condenser Motor
35	2187382 Whirlpool Refrigerator Wire Harness
36	W11458267 Whirlpool Refrigerator Fan Blade
38	2214924 Whirlpool Refrigerator Tube
39	2154109 Whirlpool Refrigerator Tube
40	WP489128 Whirlpool Refrigerator Screw
41	WP2254574 Whirlpool Refrigerator Evaporator Tray
