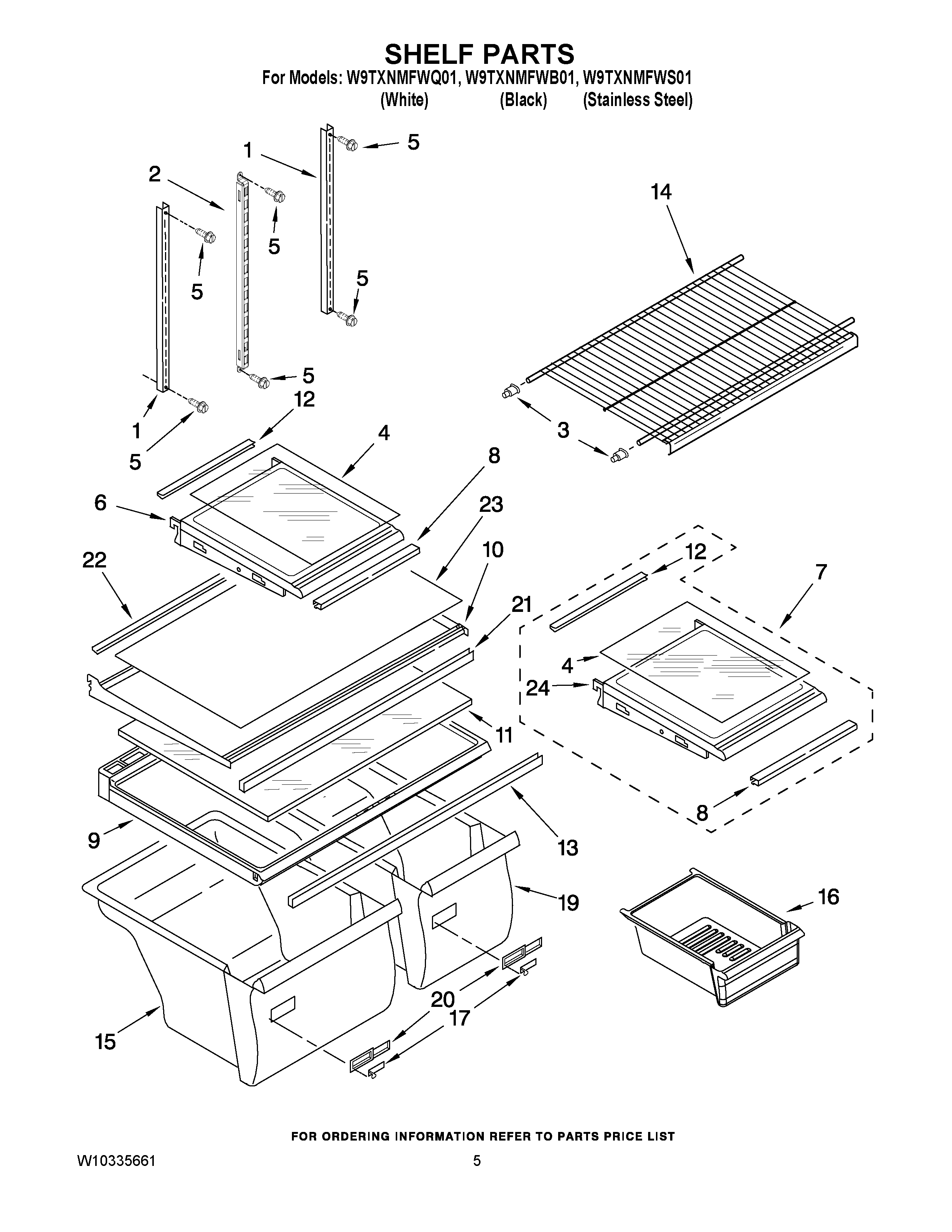

W9TXNMFWQ01 03 – SHELF PARTS

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	2163762 Whirlpool Refrigerator Cup Assembly
4	Glass, Meat Cover
5	WP489478 Whirlpool Refrigerator Screw
6	Shelf, Catnilever
7	SHELF, CANTILEVER MEAT PAN (COMPLETE)
8	Trim, Shelf Front
9	WP2314548 Whirlpool Refrigerator Cover
10	Shelf, Full Cantilever
11	WP2169921 Whirlpool Refrigerator Glass Shelf
12	WP2188689 Whirlpool Refrigerator Shelf Trim
13	WP2172748 Whirlpool Drawer Support
14	SHELF, FREEZER
15	W10854037 Whirlpool Refrigerator Crisper Pan
16	PAN-MEAT
17	WP2176222 Whirlpool Refrigerator Slide
19	W10856580 Whirlpool Crisper Pan
20	WP2212446 Whirlpool Refrigerator Control Body
21	Trim, Shelf (Front)
23	Glass, Full Shelf
24	Shelf, Cantilever Meat Pan
