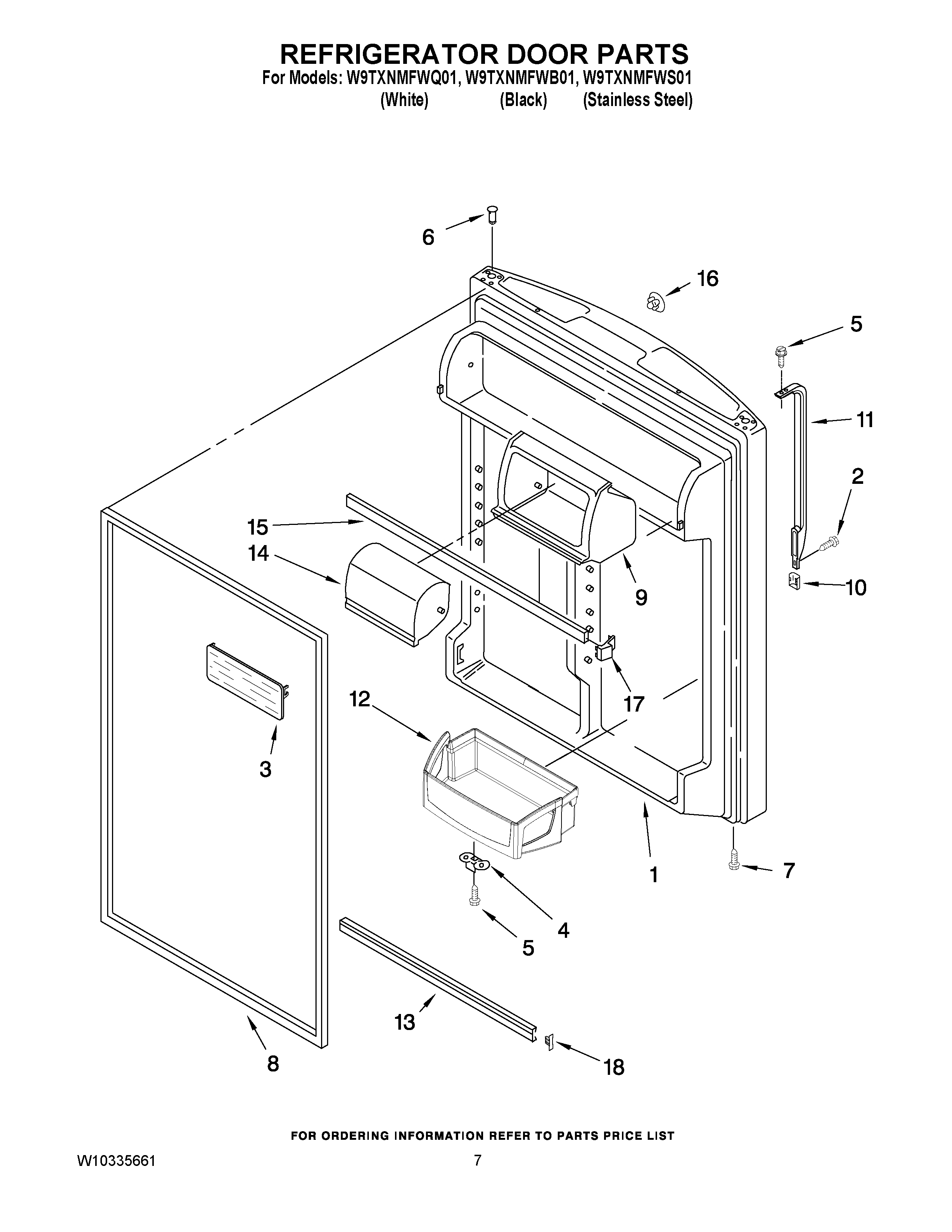

W9TXNMFWQ01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (STAINLESS STEEL)
1Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White)
1Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Black)
2WP8281146 Whirlpool Screw
3WP2188234 Whirlpool Shelf
4W11745278 Whirlpool Bracket
5WP489357 Whirlpool Recessed Screw
6WP2314293 Whirlpool Refrigerator Thimble
7WP8281206 Whirlpool Refrigerator Screw
82177305 Whirlpool Refrigerator Door FIP Gasket
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
9Housing Compartment
10WP2193353W Whirlpool Refrigerator Trim Handle
10Cover, Trim (Black)
114388950 Whirlpool Refrigerator Handle
114388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
12WP2204810 Whirlpool Refrigerator Cantilever Bin
13WPW10421484 Whirlpool Refrigerator Door Trim
14WP2218113 Whirlpool Dairy Door
15TRIM-DOOR
16WP2189000 Whirlpool Refrigerator Handle Plug
16WP2189009 Whirlpool Refrigerator Handle Plug
17ENDCAP-TRM
18WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
