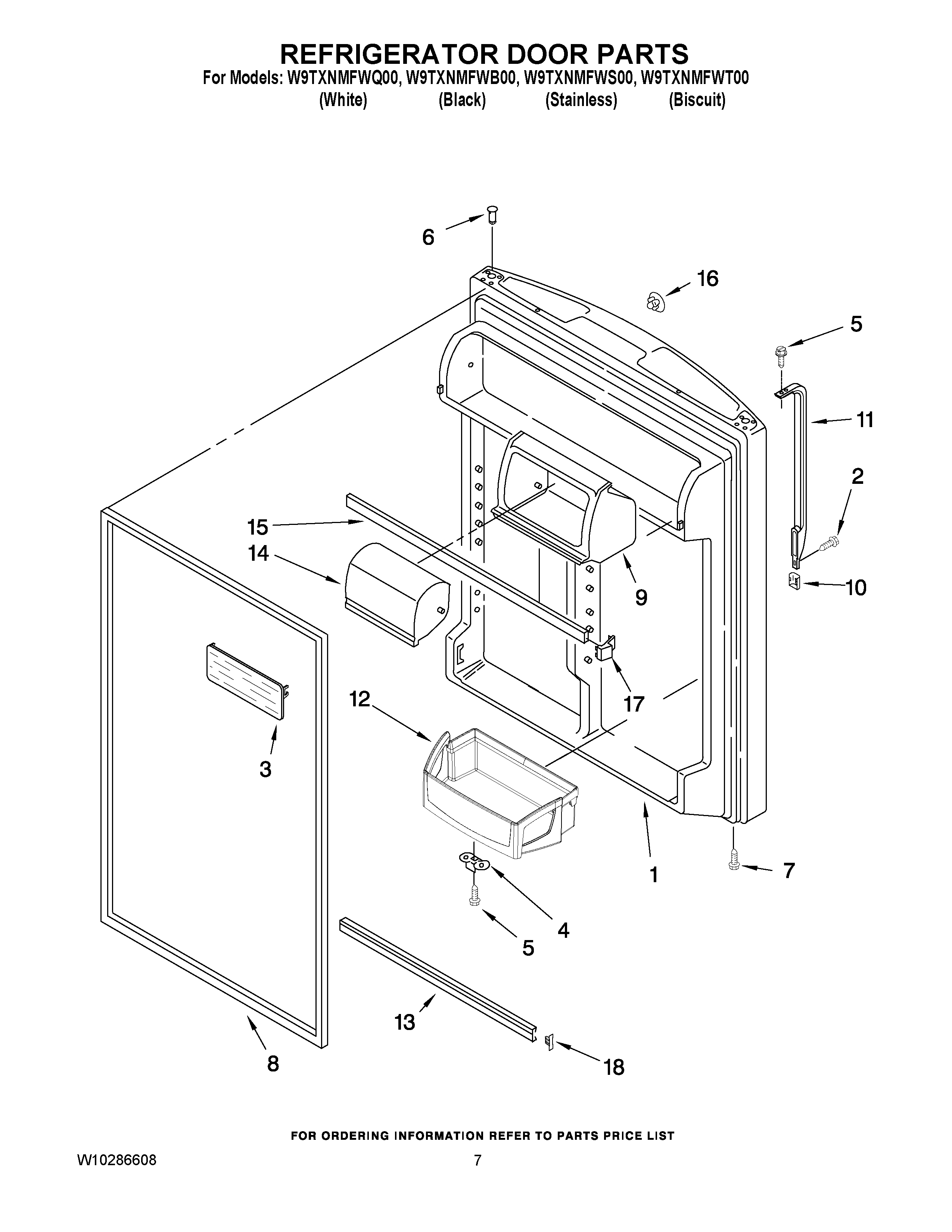

W9TXNMFWS00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (STAINLESS STEEL)
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White)
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Black)
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Biscuit)
2	WP8281146 Whirlpool Screw
3	WP2188234 Whirlpool Shelf
4	W11745278 Whirlpool Bracket
5	WP489357 Whirlpool Recessed Screw
6	WP2314293 Whirlpool Refrigerator Thimble
7	WP8281206 Whirlpool Refrigerator Screw
8	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
8	2177305 Whirlpool Refrigerator Door FIP Gasket
9	Housing Compartment
10	Cover, Trim (Black)
10	Cover, Trim (Biscuit)
10	WP2193353W Whirlpool Refrigerator Trim Handle
11	4388950 Whirlpool Refrigerator Handle
11	4388949 Whirlpool Refrigerator Handle
11	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
12	WP2204810 Whirlpool Refrigerator Cantilever Bin
13	WPW10421484 Whirlpool Refrigerator Door Trim
14	WP2218113 Whirlpool Dairy Door
15	TRIM-DOOR
16	WP2200936 Whirlpool Refrigerator Handle Plug
16	WP2189009 Whirlpool Refrigerator Handle Plug
16	WP2189000 Whirlpool Refrigerator Handle Plug
17	ENDCAP-TRM
18	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
