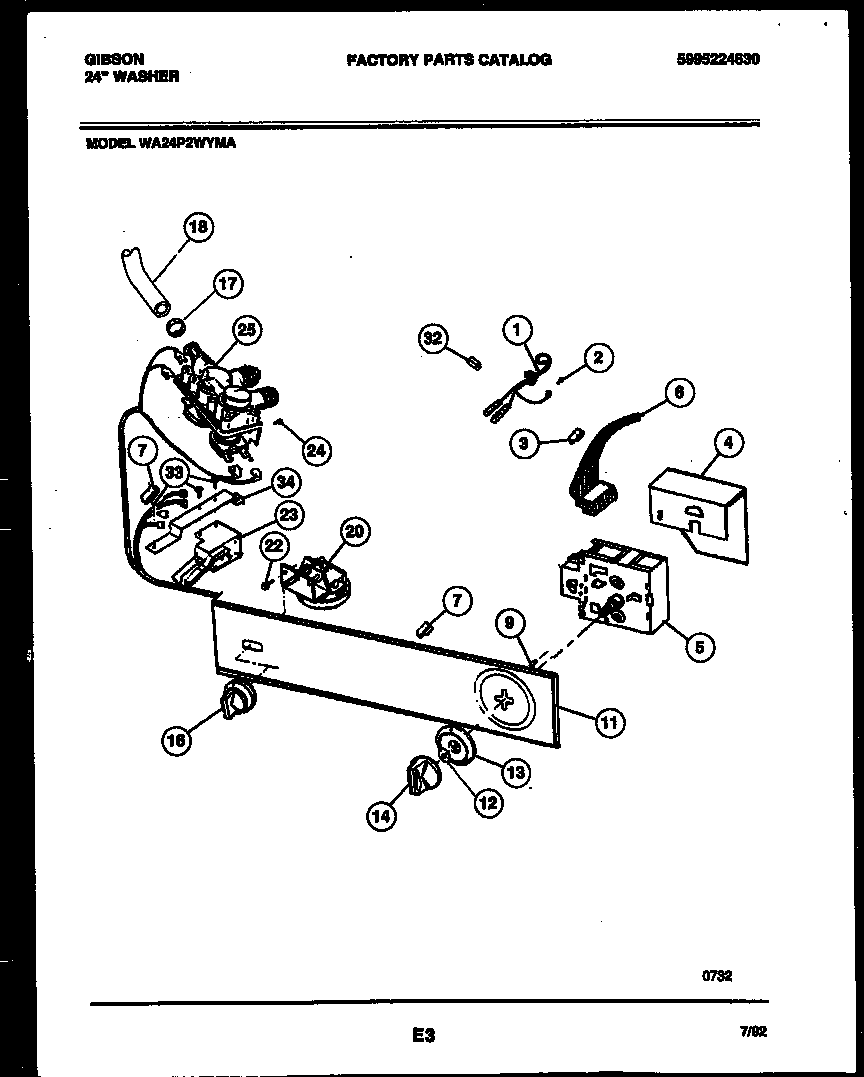

WA24P2WYMA 03 – CONSOLE AND CONTROL PARTS

Written by

Products

Position	Product
*54931	WCI 3205935
*54931	5303015671 Frigidaire Bracket Termination Screw
*54931	WCI 3205934
*54931	WCI 08027572
*54931	WCI 08011251
*54931	WCI 5303284137
1	WCI 3205929
2	134154100 Frigidaire Screw 10-32 x 0.375 Co
3	WCI 08008454
4	WCI 3205931
5	WCI 5303290009
6	WCI 5303290010
7	WCI 08008458
9	SCREW (2)
11	WCI F140599-000
12	Spacer,washer ,timer shaft
13	WCI 5303280331
14	WCI 5303280332
16	KNOB-ROTARY (2)
17	CLAMP HOSE
18	HOSE-VALVE TO INLET
20	WCI 5303284135
22	131168200 Frigidaire Dryer Screw
23	WCI 5303209725
24	WCI 5303010202
25B	WCI 5376138011
25A	WCI 08008466
25	WCI 5303912509
32	WCI 08004657
33A	SCREW (3)
33	SCREW (2)
34	BRACKET-LID LOCK & SW ASSEMBLY
