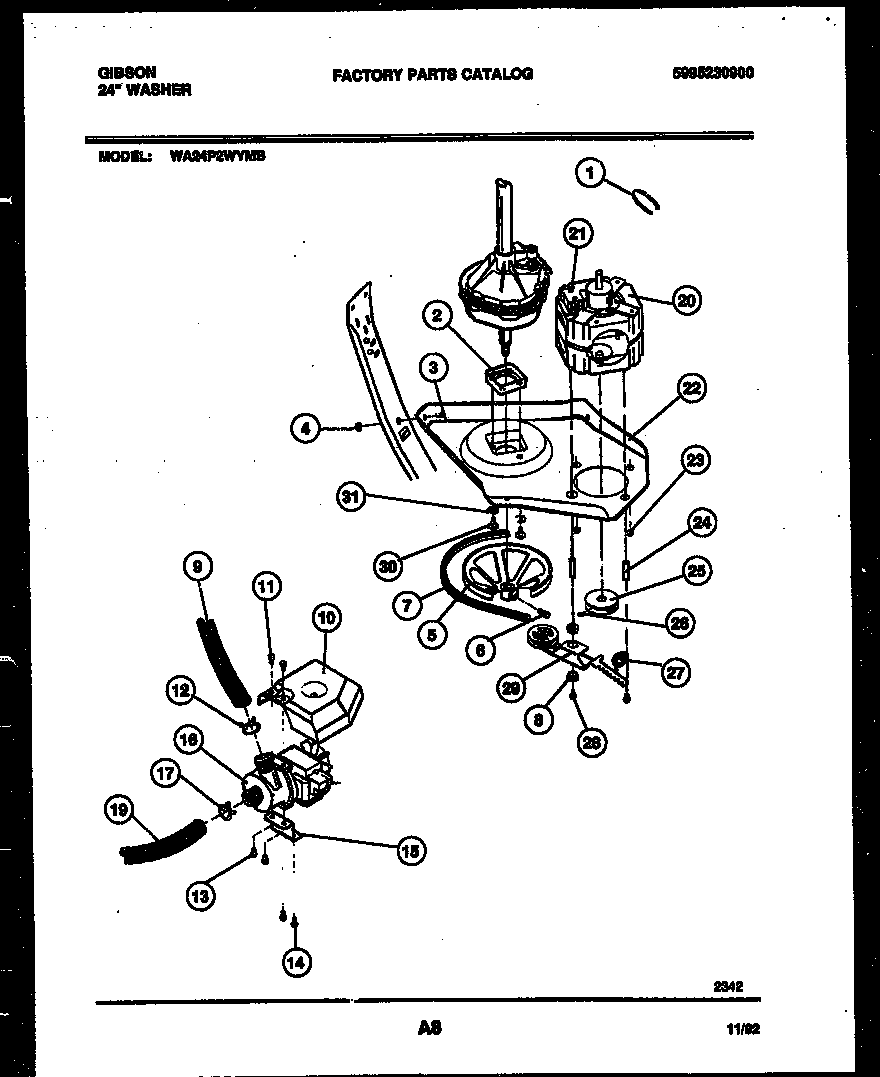

WA24P2WYMB 05 – MOTOR AND IDLER ARM CLUTCH

Products

Position	Product
*50359	SPRING WASHER
*50359	CLAMP
*50359	5304527822 Frigidaire Pulley
1	5303161300 Frigidaire Strap
2	WCI 5377009100
3	WCI 3161211
4	WCI 3161212
5	WCI 131026500
6	5303270023 Frigidaire Screw Set
7	5303280326 Frigidaire Drive Belt Assembly
8	WCI 08027535
9	WCI 5303284140
10	WCI 5303283071
12	WCI 5303283073
13	5303283072 Frigidaire Shield Screw
14	WCI 3205020
15	WCI 5303284141
16	WCI 5303292169
17	WCI 5303283076
19	WCI 5303284142
20	WCI 131097200
21	WCI 5308014888
22	WCI 08002472
23	HEX NUT
24	WCI 5303161303
25	WCI 131031900
26	WCI 5303206869
27	SPRING TENSION
28	WCI 5303283080
29	WCI 5303937001
30	SCREW (2)
31	RUBBER SPACER (2)
