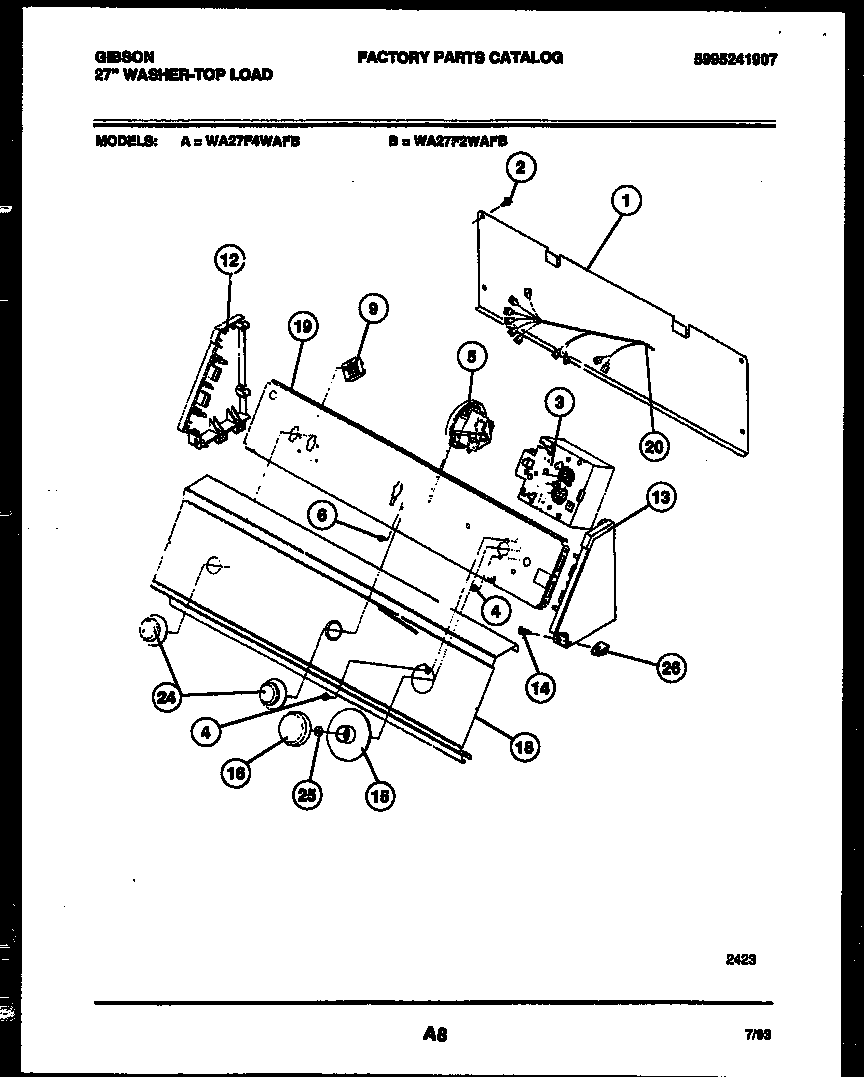

WA27F2WAFB 05 – CONSOLE AND CONTROL PARTS

WA27F2WAFB 05 – CONSOLE AND CONTROL PARTS

Written by

in

WA27F2WAFB 05 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*64341SCREW
*64340131243800 Frigidaire Screw
1COVER-BACK
2131205100 Frigidaire Screw
3WCI 5303271764
4SCREW (2)
5WCI 131047500
65303015671 Frigidaire Bracket Termination Screw
9WCI 131047000
12WCI 5303291344
13WCI 5303291352
14WCI 5303289526
15WCI 131030502
16WCI 131030400
18WCI 131092200
19BRACKET CONTROLS
20WCI 131166000
24WCI 131032500
25Spacer,washer ,timer shaft
26CLIP
