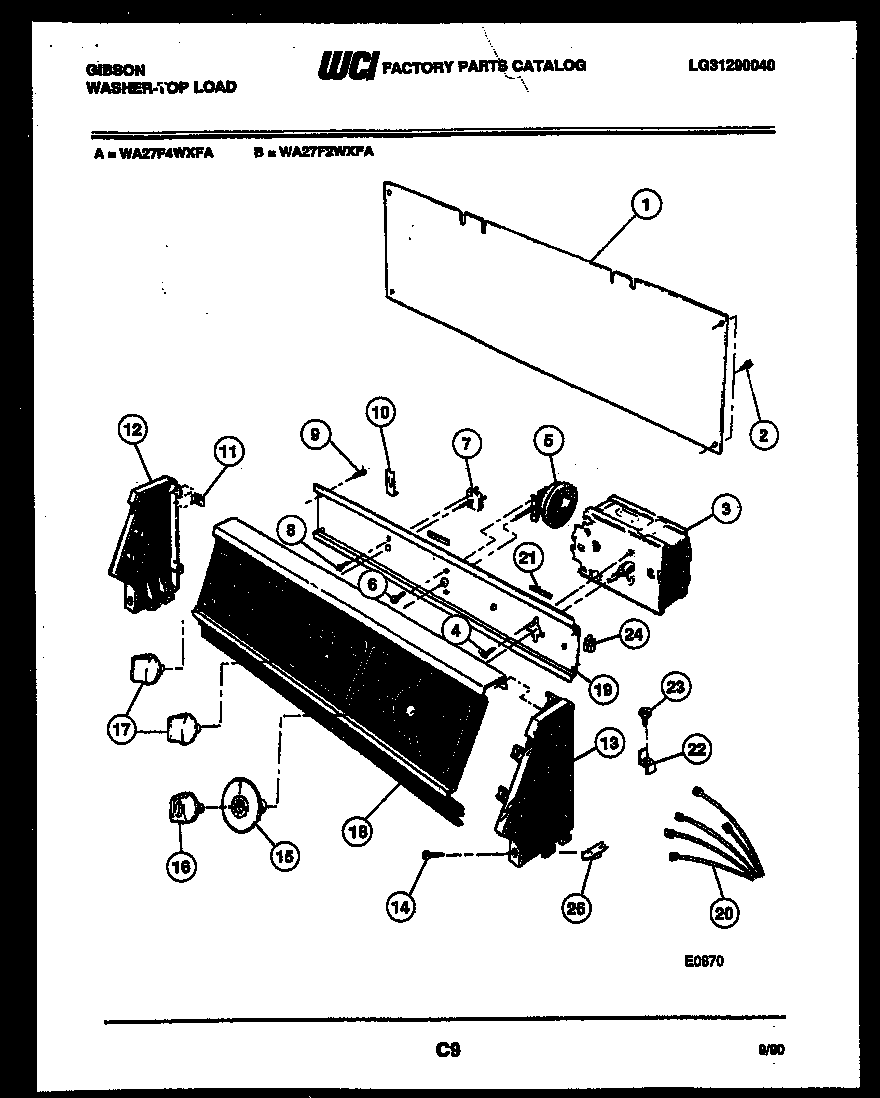

WA27F4WXFA 05 – CONTROL PARTS

Products

Position	Product
*27682	Spacer,washer ,timer shaft
1	COVER-BACK
3	WCI 5303208827
4	SCREW (2)
5	WCI 5303210964
6	131168200 Frigidaire Dryer Screw
7	WCI 5303210965
8	WCI 3161259
9	5303015671 Frigidaire Bracket Termination Screw
10	WCI 3281200
11	CLIP (8)
12	WCI 3205842
13	WCI 3205840
14	SCREW (2)
15	WCI 5303210966
16	WCI 5303210967
17	WCI 5308015435
18	WCI 5303210971
19	WCI 5303210137
20	WCI 5303210330
21	PAD (2)
22	WCI 5379171000
23	131243800 Frigidaire Screw
24	WCI F142313-000
26	CLIP
