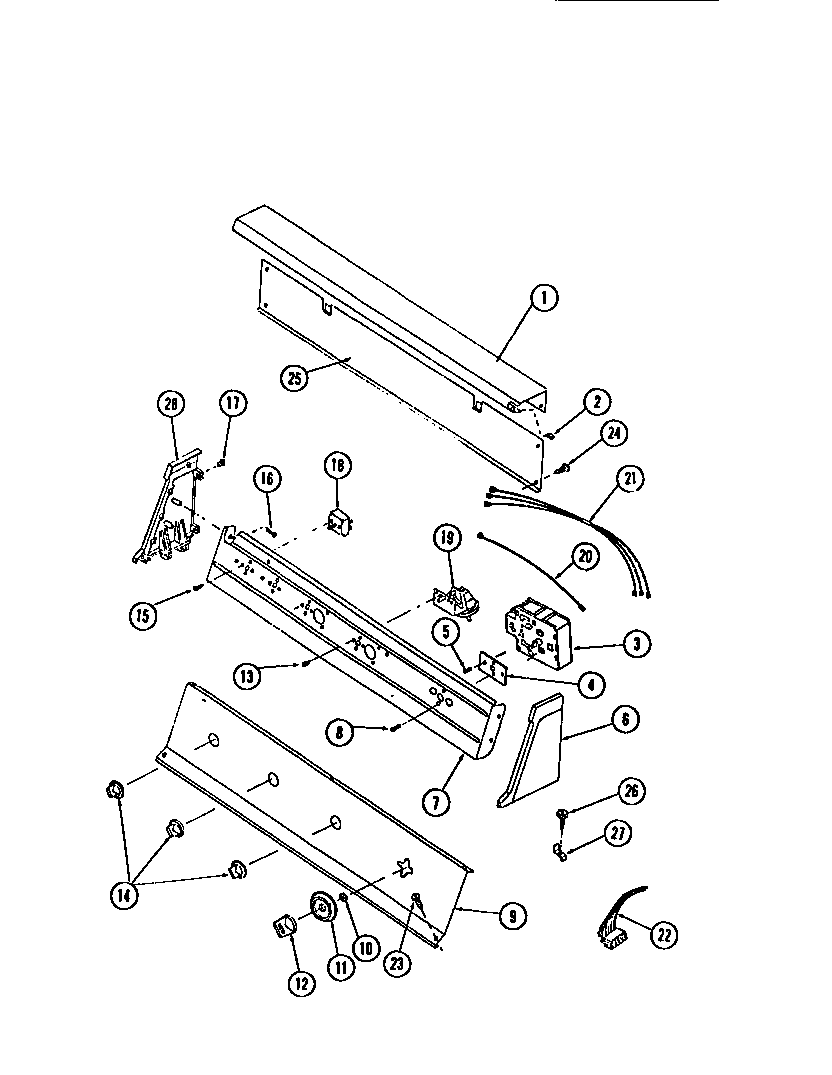

WA28D3WSFA 02 – CONSOLE AND CONTROLS

Products

Position	Product
*14572	WCI F140243-000
*14580	5303321319 Frigidaire Refrigerator White Touch Up Paint
*14579	LID INSTRUCTION
*14577	WCI F140615-000
*14573	WCI F140063-000
*14563	WCI F141138-000
*14574	LAUNDRY GUIDE
*14568	WCI F141019-000
1	WCI F139794-000
2	WCI F139635-000
3	WCI F140433-000
6	WCI F139720-000
7	BRACKET, MTG.
8	WCI F060796-000
9	WCI F139850-100
10	WCI F078212-100
11	TIMER POINTER
12	WCI F141025-000
13	131168200 Frigidaire Dryer Screw
14	ROTARY KNOB (2)
16	131205100 Frigidaire Screw
17	WCI F139577-000
19	WCI F139790-000
20	HARNESS-GROUND
22A	WCI F140725-000
22D	TIE-HARN TOP PNL (NON-ILLUSTRATED)
22C	WCI F136345-000
23	WCI F140203-000
24	5303015671 Frigidaire Bracket Termination Screw
25	WCI F139230-026
26	131243800 Frigidaire Screw
27	WCI F079171-000
28	WCI F139720-100
