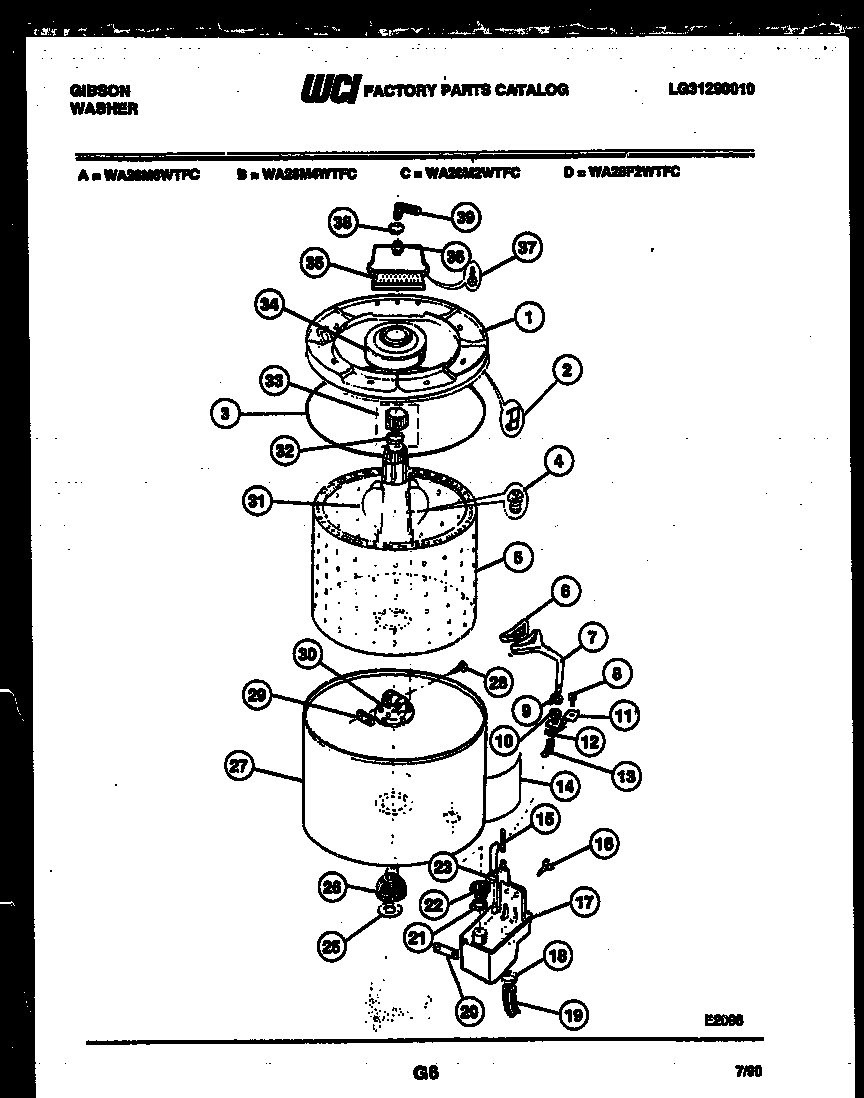

WA28M2WTFC 04 – TUB DETAIL

Products

Position	Product
1	WCI 5308011314
2	WCI F079975-000
3	WCI F078611-100
4	WCI F140624-000
5	WCI F079147-400
6	WCI 5308011246
7	WCI 5308027530
8	WCI F066409-000
9	154611101 Frigidaire Dishwasher Clamp
10	WCI F077272-000
11	WCI F077273-100
13	TUBE, BLEACH DISPENSER TO TRAP
14	WCI F132044-000
15A	CLIP-HOSE REAR SHORT (NON-ILLUSTRATED)
15	5304401845 Frigidaire Tube Pressure
15	CLIP-HOSE FRONT LARGE (NON-ILLUSTRATED)
16	WCI F136029-000
17	WCI 5303206795
18	WCI F140887-027
19	WCI F077278-000
20	WCI F139592-000
21	CLAMP
22	GROMMET (USE F133016000 PRIMER ADHESIVE AND 08006576 ADH
23	WCI F063460-001
24	WCI 5308002353
25	5308002401 Frigidaire Washer Primary
26	WCI F138510-000
27	WCI F078451-000
28	137539500 Frigidaire Washer Trunnion Lock Plate Bolt
29	137107000 Frigidaire Plate
30	WCI F140604-100
31	WCI 5308002424
32	WCI F073565-000
33	WCI F131203-100
34	WCI F141410-000
35	WCI 5308002435
36	WCI 5303207083
37	WCI F134167-000
38	WCI F140887-000
39	WCI F078921-000
