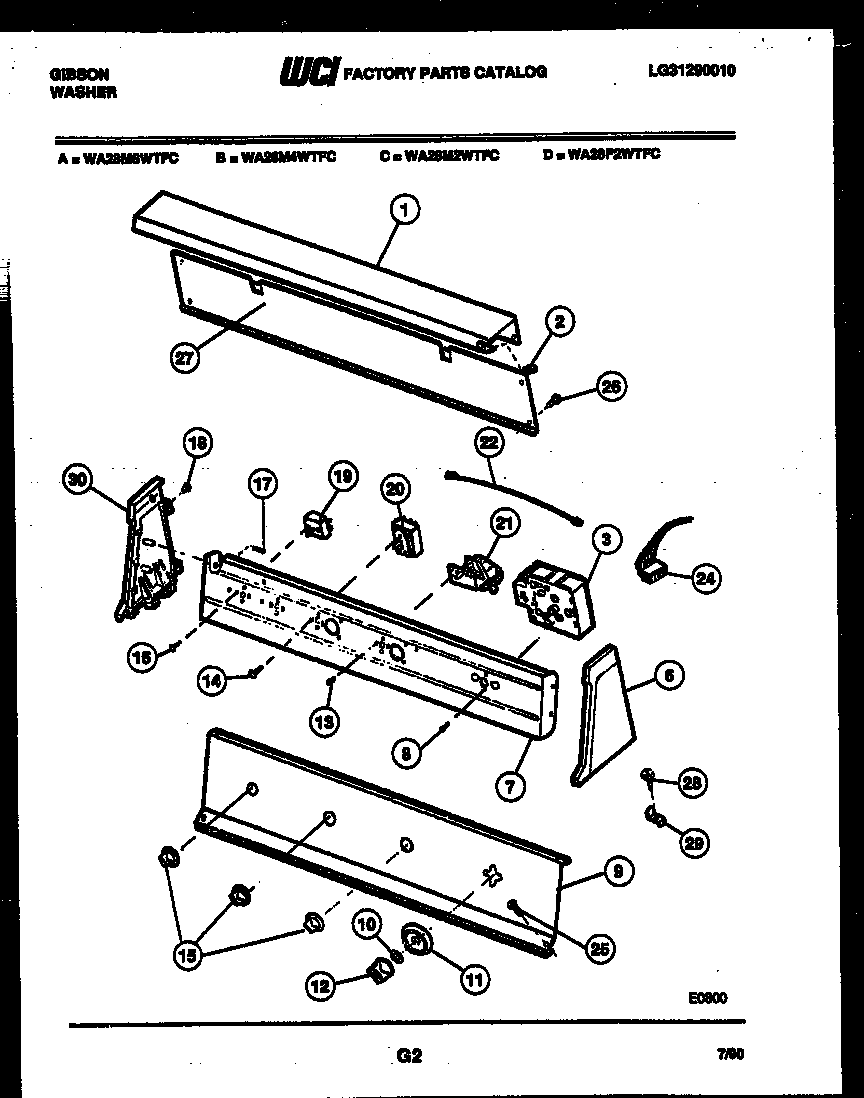

WA28M6WTFC 02 – CONSOLE AND CONTROL PARTS

WA28M6WTFC 02 – CONSOLE AND CONTROL PARTS

Written by

in

WA28M6WTFC 02 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1WCI F141603-000
2WCI F139635-000
3WCI 3015645
6WCI F139720-000
7BRACKET, MTG.
8WCI F060796-000
9WCI F141636-100
10WCI F078212-200
11TIMER POINTER
12WCI F141025-000
13131168200 Frigidaire Dryer Screw
15BROTARY KNOB (2)
17131205100 Frigidaire Screw
18WCI F139577-000
21WCI 5303209659
22HARNESS-GROUND
24BTIE-HARN TOP PNL (NON-ILLUSTRATED)
24WCI 3018970
24AWCI F136345-000
25WCI F140203-000
265303015671 Frigidaire Bracket Termination Screw
27WCI F130230-026
28131243800 Frigidaire Screw
29WCI F079171-000
30WCI F139720-100
