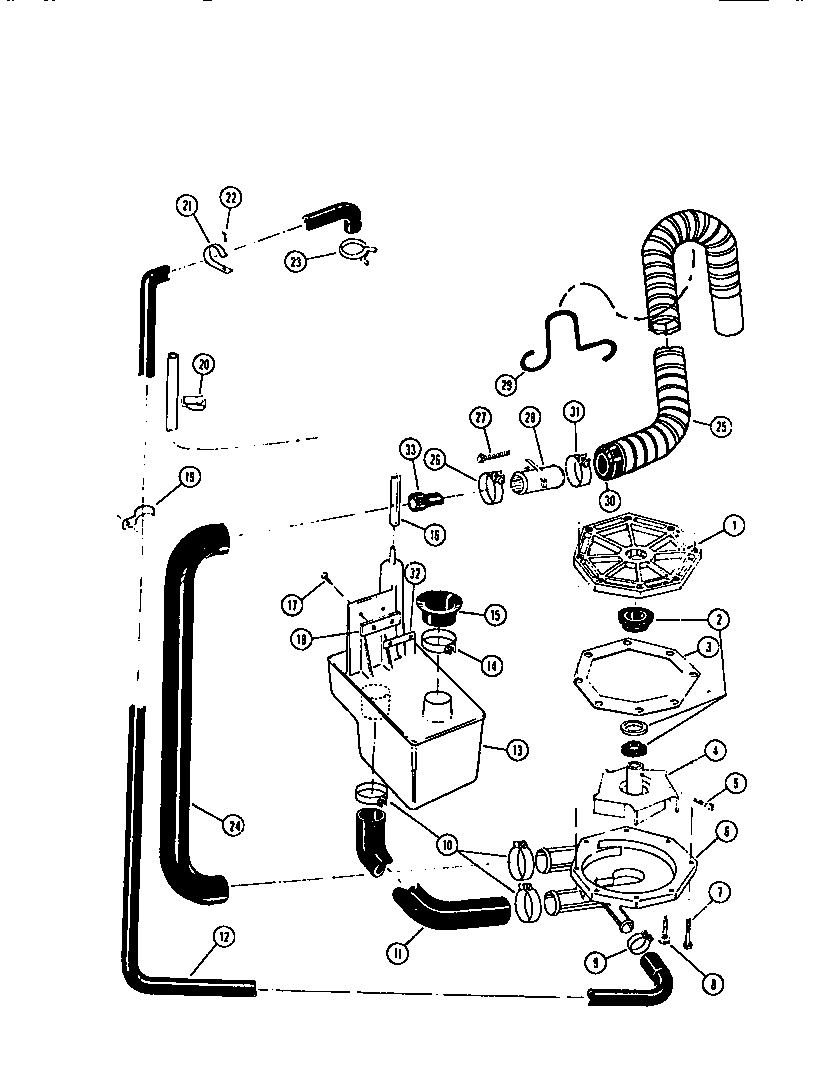

WA28S2WSFA 12 – DRAIN, RECIRCULATE PARTS

Products

Position	Product
*14593	5308027429 Frigidaire Dryer High Temperature Adhesive
1	WCI F077352-000
2	WCI F076143-000
3	WCI F077354-000
4	WCI F079428-000
5	IMPELLER SCREW
6	HOUSING, PUMP
7	5304401796 Frigidaire Screws
8	SCREW, PUMP MOUNTING (4)
10	WCI F140887-027
11	WCI F139191-000
12	WCI F141135-000
12	5304464772 Frigidaire Refrigerator Wire Tie
13	WCI F077276-000
14	CLAMP
15	ADHESIVE, 1 OUNCE
15	GROMMET (USE F133016000 PRIMER ADHESIVE AND 08006576 ADH
16	5304401845 Frigidaire Tube Pressure
17	WCI F136471-000
18	WCI F140324-000
19	CLAMP, DRAIN HOSE TO TUB
20	SPEED CLIP, PRESSURE HOSE TO CABINET (2)
21	WCI F130493-000
22	5303015671 Frigidaire Bracket Termination Screw
23	WCI F140887-021
32	WCI F139592-000
