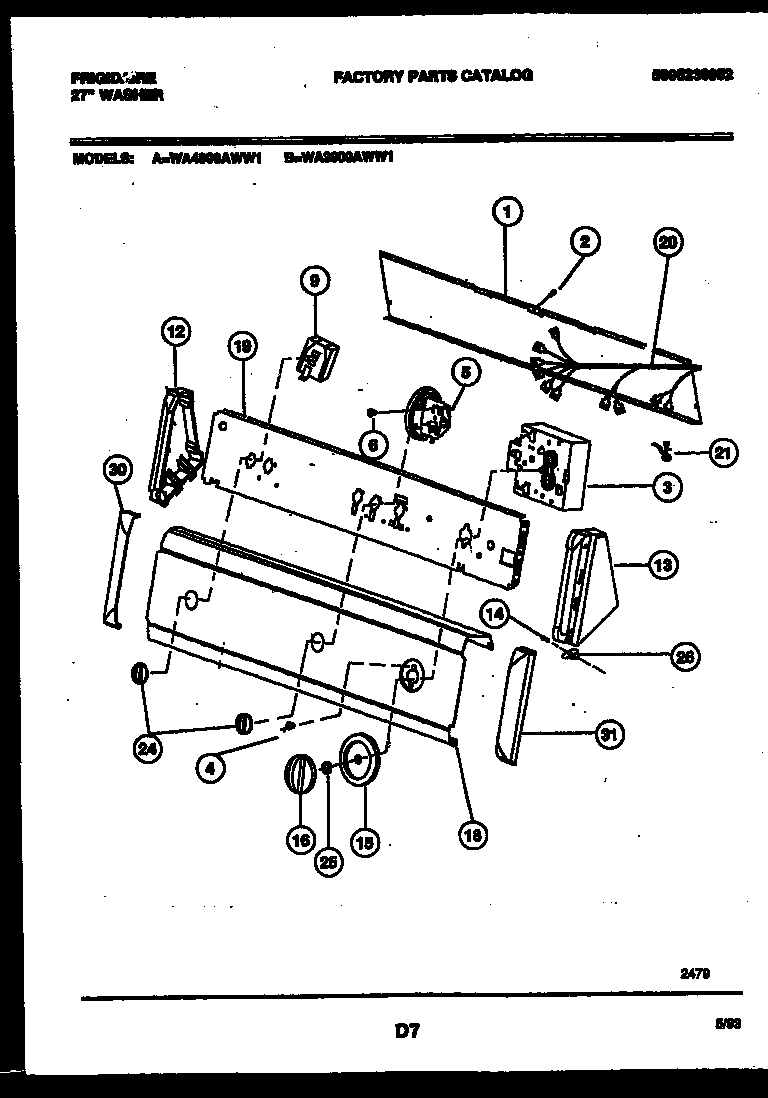

WA3900AWW1 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	BACKSHEET
2	131205100 Frigidaire Screw
3	WCI 5303271761
4	SCREW (2)
5	WCI 131047500
6	5303015671 Frigidaire Bracket Termination Screw
12	END CAP-L.H.-WHITE
13	END CAP-R.H.-WHITE
14	WCI 5303289526
15	WCI 131140701
16	WCI 131140601
18	WCI 131170900
19	BRACKET CONTROLS
20	WCI 131166000
21A	SCREW
21	131243800 Frigidaire Screw
24	131858004 Frigidaire Control Knob, White
25	Spacer,washer ,timer shaft
26	CLIP
30	COVER-CAP-LH-WHITE
31	COVER-CAP-RH-WHITE
