WA4900RW1 06 – CONSOLE AND CONTROL PARTS – Aparts

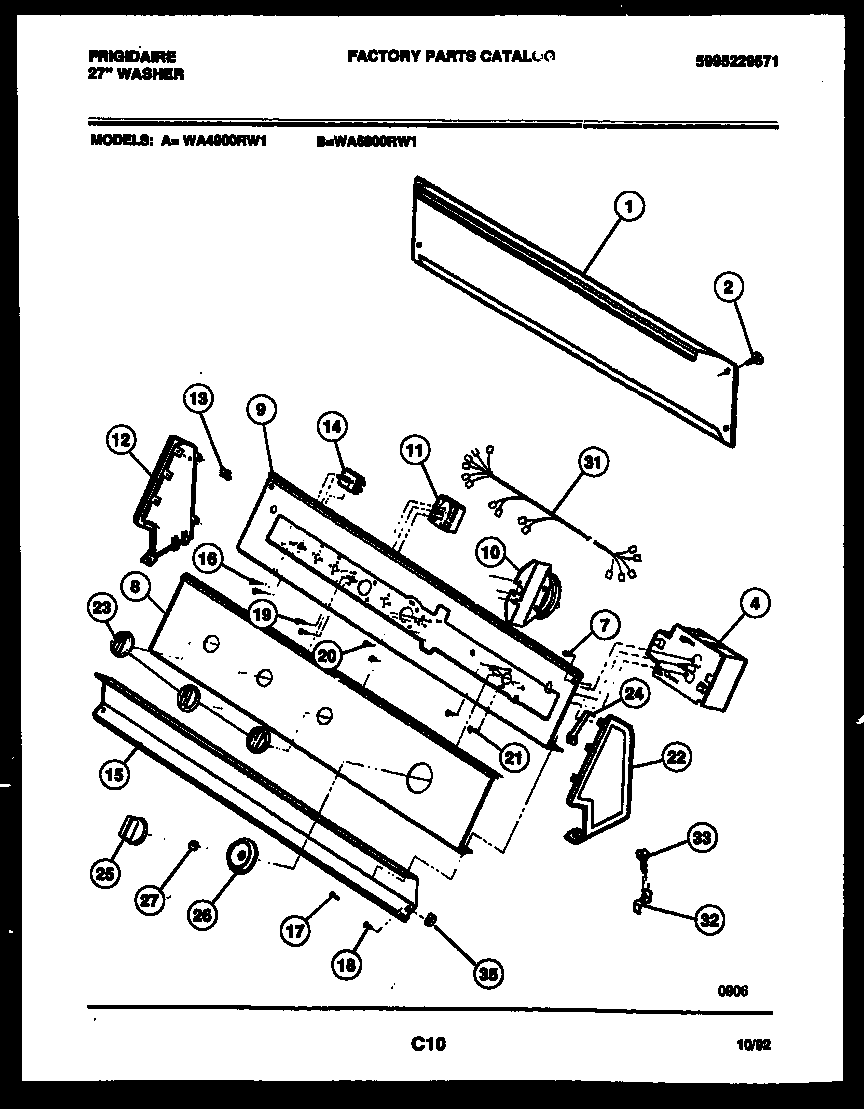

WA4900RW1 06 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	BACK COVER
2	SCREW
4	WCI 5303271760
7	SCREW (2)
8	WCI 131096600
9	WCI 5303208818
10	WCI 131072900
12	WCI 5303270198
13	CLIP (8)
14	SWITCH-WATER TEMP
15	PANEL - BOTTOM
16	WCI 3161259
17	WCI 08010782
18	WCI 5303279343
20	131168200 Frigidaire Dryer Screw
21	SCREW (2)
22	WCI 5303270200
23	WCI 5303270202
24	WCI 08014349
25	WCI 5303270203
26	WCI 5303270205
27	Spacer,washer ,timer shaft
31	WCI 131015700
31A	WCI 5303285493
32	WCI 5379171000
33	131243800 Frigidaire Screw
35	CLIP
