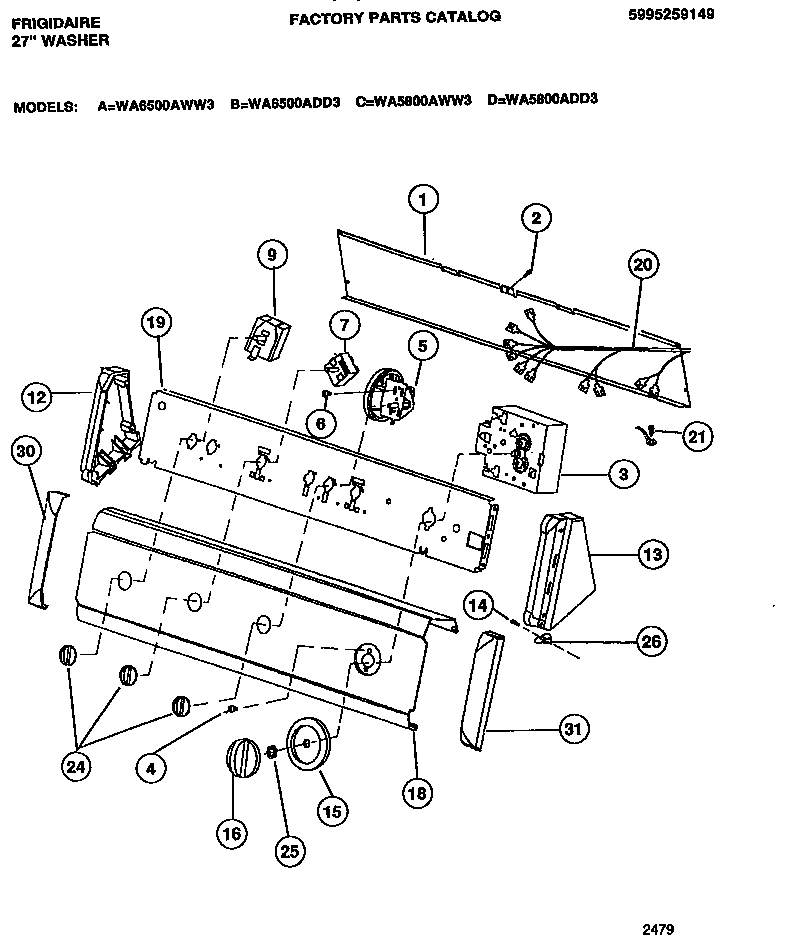

WA5800AWW3 05 – CONSOLE & CONSOLE CONTROLS

Products

PositionProduct
1BACKSHEET
2131205100 Frigidaire Screw
3AWCI 5303271767
4SCREW (2)
5WCI 131047700
65303015671 Frigidaire Bracket Termination Screw
9WCI 131081200
12END CAP-L.H.-WHITE
13END CAP-R.H.-WHITE
14WCI 5303289526
15WCI 131140701
16WCI 131140601
18WCI 131171900
19BRACKET CONTROLS
20WCI 131166100
21ASCREW
21131243800 Frigidaire Screw
24131858004 Frigidaire Control Knob, White
25Spacer,washer ,timer shaft
26CLIP
30COVER-CAP-LH-WHITE
31COVER-CAP-RH-WHITE
