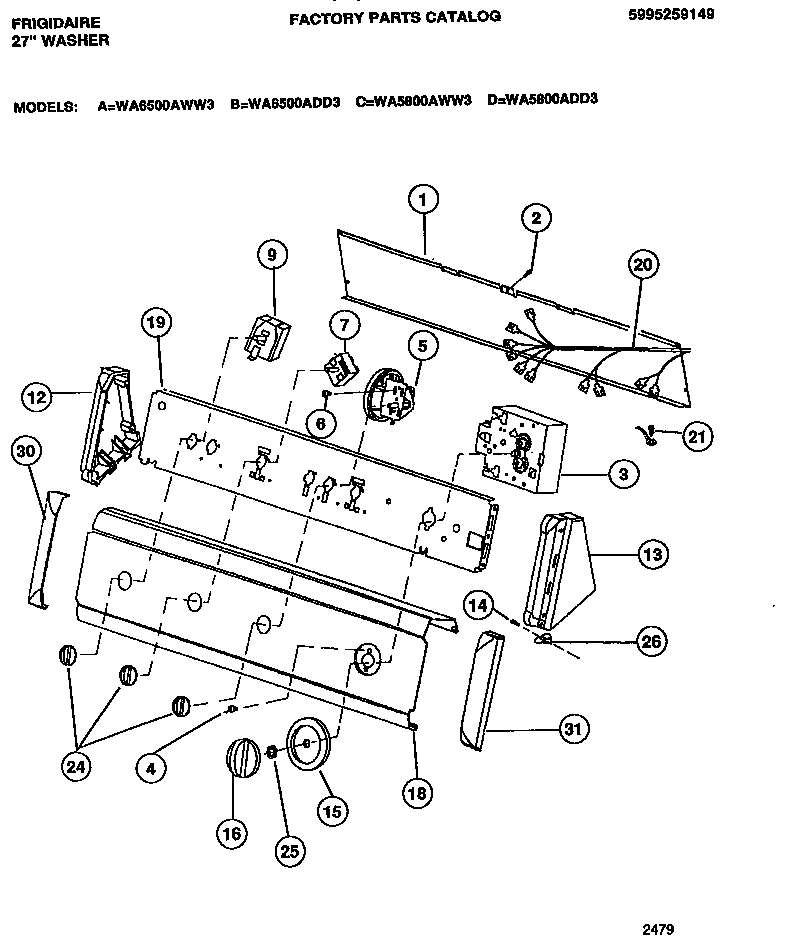

WA6500AWW3 05 – CONSOLE & CONSOLE CONTROLS

Products

Position	Product
1	BACKSHEET
2	131205100 Frigidaire Screw
3	WCI 5303271769
4	SCREW (2)
5	WCI 131047700
6	5303015671 Frigidaire Bracket Termination Screw
7	Switch,speed/option ,3 posn rotary
9	WCI 131081200
12	END CAP-L.H.-WHITE
13	END CAP-R.H.-WHITE
14	WCI 5303289526
15	WCI 131140701
16	WCI 131140601
18	WCI 131172500
19	BRACKET CONTROLS
20	WCI 131166200
21A	SCREW
21	131243800 Frigidaire Screw
24	131858004 Frigidaire Control Knob, White
25	Spacer,washer ,timer shaft
26	CLIP
30	COVER-CAP-LH-WHITE
31	COVER-CAP-RH-WHITE
