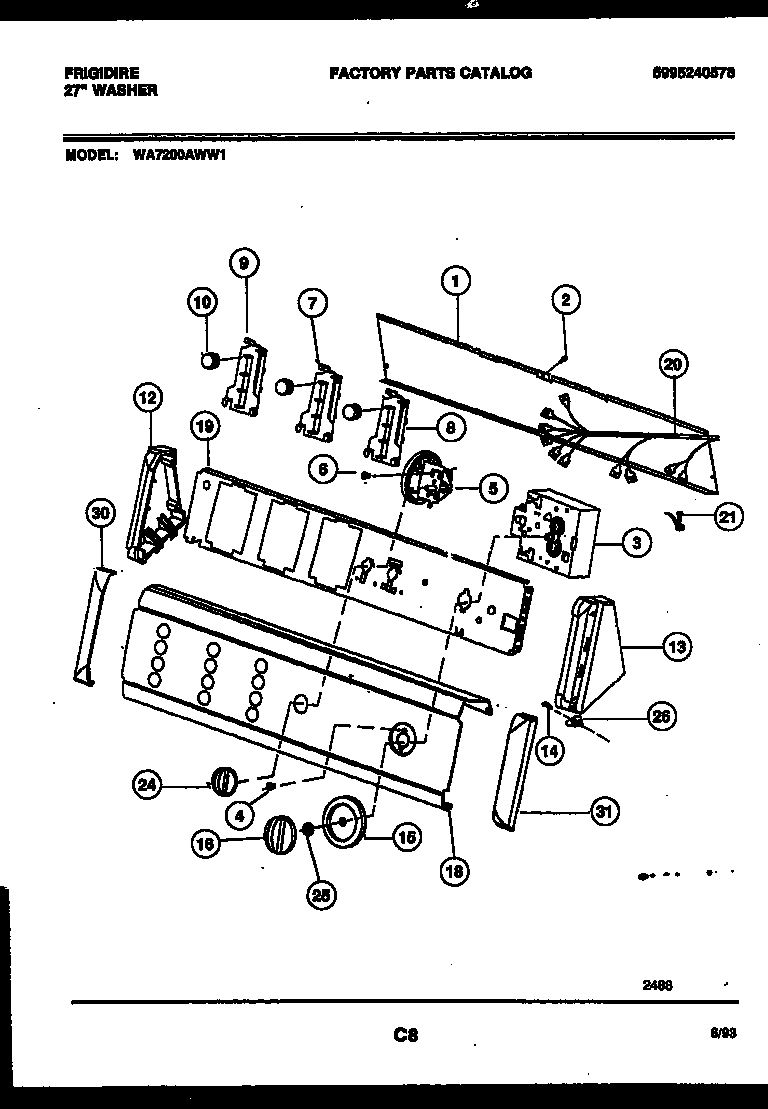

WA7200AWW1 05 – CONSOLE AND CONTROL PARTS

WA7200AWW1 05 – CONSOLE AND CONTROL PARTS

Written by

in

WA7200AWW1 05 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1BACKSHEET
2131205100 Frigidaire Screw
3WCI 5303271772
4SCREW (2)
5WCI 131047700
65303015671 Frigidaire Bracket Termination Screw
7WCI 131118100
8WCI 131169100
9WCI 131047600
10WCI 131141201
12END CAP-L.H.-WHITE
13END CAP-R.H.-WHITE
14WCI 08015832
15WCI 131140701
16WCI 131140601
18WCI 131173100
19WCI 131157803
20WCI 131169000
21ASCREW
21131243800 Frigidaire Screw
24131858004 Frigidaire Control Knob, White
25Spacer,washer ,timer shaft
26CLIP
30COVER-CAP-LH-WHITE
31COVER-CAP-RH-WHITE
